SDO HMI 2014-03-07 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.58 | 53.26 | 2.31 | 26.78 | -16.40 | 45.27 | 1.62 | 189.49 | 0.1659 | 229.0 | 166.4 | |
|
previous
or next observation for the same group /

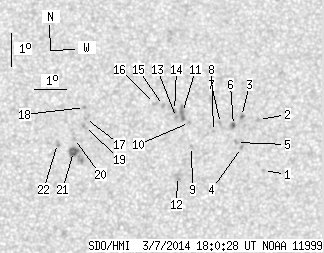

back to the solar disc SDO HMI 2014-03-07 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.57 | -17.45 | 48.78 | 5.13 | 205.64 | 0.1980 | -845.0 | -612.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -15.91 | 48.58 | 4.93 | 208.68 | 0.1731 | -826.0 | -684.3 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -15.83 | 48.05 | 4.40 | 206.28 | 0.1676 | 862.0 | 654.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -16.76 | 48.07 | 4.42 | 204.02 | 0.1823 | 857.0 | 636.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -16.61 | 47.91 | 4.26 | 203.60 | 0.1788 | 1051.0 | 861.3 | |
| 0.95 | 3.29 | 0.48 | 1.65 | -16.10 | 47.81 | 4.16 | 204.32 | 0.1701 | 1111.7 | 810.0 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -16.04 | 47.41 | 3.76 | 202.34 | 0.1664 | 936.0 | 711.4 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -16.29 | 47.19 | 3.54 | 200.66 | 0.1690 | 934.0 | 757.3 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -16.74 | 46.52 | 2.87 | 196.18 | 0.1728 | 935.0 | 724.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.02 | 46.45 | 2.80 | 197.07 | 0.1605 | 855.0 | 693.9 | |
| 0.00 | 6.05 | 0.00 | 3.04 | -15.72 | 46.23 | 2.58 | 196.35 | 0.1544 | 1242.0 | 960.0 | |
| 0.00 | 4.24 | 0.00 | 2.14 | -17.65 | 46.09 | 2.44 | 192.67 | 0.1861 | 1002.0 | 820.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -15.87 | 46.04 | 2.39 | 194.97 | 0.1561 | 1043.0 | 850.8 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -15.66 | 45.98 | 2.33 | 194.95 | 0.1523 | 1114.0 | 849.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -15.51 | 45.64 | 1.99 | 193.07 | 0.1484 | 1098.0 | 869.5 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -15.45 | 45.36 | 1.71 | 191.38 | 0.1464 | 760.0 | 691.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.90 | 43.23 | -0.42 | 177.31 | 0.1514 | -998.0 | -812.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -15.57 | 43.20 | -0.45 | 177.00 | 0.1457 | -1221.0 | -889.3 | |
| 0.00 | 2.85 | 0.00 | 1.43 | -16.14 | 43.20 | -0.45 | 177.19 | 0.1556 | -919.0 | -726.1 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -16.51 | 42.89 | -0.76 | 175.45 | 0.1622 | -1020.0 | -819.7 | |
| 3.63 | 12.20 | 1.83 | 6.13 | -16.90 | 42.85 | -0.80 | 175.46 | 0.1690 | -1162.5 | -804.7 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -16.65 | 42.36 | -1.29 | 172.47 | 0.1657 | -1040.0 | -814.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
