groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11996 35.71 194.19 19.18 104.14 13.72 50.39 7.84 339.66 0.3849 -152.1 -103.6


previous   or   next   observation for the same group / back to the solar disc

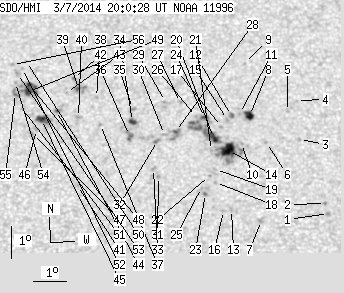

SDO HMI 2014-03-07 20:00:28 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 2.25 0.00 1.21 11.15 55.50 12.95 324.88 0.3838 -941.0 -744.6
2 0.00 0.87 0.00 0.46 11.47 55.42 12.87 325.51 0.3872 -849.0 -759.5
3 0.00 1.38 0.00 0.75 13.47 54.71 12.16 329.73 0.4082 -758.0 -614.6
4 0.00 0.69 0.00 0.38 14.71 54.68 12.13 331.29 0.4251 -445.0 -430.8
5 0.00 1.12 0.00 0.61 14.35 54.38 11.83 331.48 0.4178 -586.0 -504.2
6 0.00 1.04 0.00 0.56 13.35 53.67 11.12 331.76 0.3984 -961.0 -756.1
7 0.00 3.29 0.00 1.75 10.88 53.41 10.86 329.08 0.3617 -757.0 -667.3
8 4.84 6.92 2.62 3.75 14.19 53.18 10.63 333.80 0.4069 -875.9 -564.7
9 0.00 1.21 0.00 0.66 15.86 53.11 10.56 335.70 0.4303 -635.0 -483.0
10 0.00 0.87 0.00 0.47 13.30 52.89 10.34 333.40 0.3920 -729.0 -686.2
11 0.00 0.95 0.00 0.52 14.25 52.87 10.33 334.52 0.4056 -671.0 -608.5
12 0.00 2.85 0.00 1.54 14.18 52.62 10.07 334.99 0.4029 -834.0 -677.5
13 0.00 1.73 0.00 0.92 11.20 52.50 9.95 331.69 0.3590 -928.0 -710.8
14 12.54 33.48 6.73 17.95 13.06 52.48 9.93 334.06 0.3857 -1194.7 -695.0
15 0.00 1.38 0.00 0.75 14.05 52.49 9.94 335.14 0.4001 -858.0 -736.8
16 0.00 1.38 0.00 0.73 11.17 52.25 9.70 332.25 0.3566 -864.0 -613.2
17 0.00 1.38 0.00 0.75 13.82 52.29 9.75 335.33 0.3955 -718.0 -607.5
18 0.00 1.12 0.00 0.60 12.04 52.03 9.49 333.88 0.3677 -912.0 -723.7
19 0.00 1.12 0.00 0.60 12.45 52.05 9.50 334.33 0.3738 -905.0 -749.8
20 4.84 35.21 2.60 18.93 13.47 52.03 9.48 335.54 0.3885 -1054.3 -768.5
21 0.00 0.78 0.00 0.42 13.05 51.95 9.40 335.26 0.3819 -761.0 -684.1
22 0.00 1.04 0.00 0.55 12.26 51.86 9.31 334.56 0.3697 -802.0 -681.3
23 0.00 1.64 0.00 0.87 11.69 51.71 9.17 334.22 0.3603 -961.0 -815.1
24 1.38 -20.00 0.75 -20.00 14.10 51.78 9.23 336.78 0.3962 -825.6 999999
25 0.00 0.78 0.00 0.41 11.88 51.60 9.05 334.73 0.3622 -605.0 -466.7
26 0.00 0.95 0.00 0.51 14.13 51.53 8.98 337.36 0.3950 -582.0 -471.2
27 0.00 1.21 0.00 0.65 14.57 51.05 8.50 338.87 0.3987 -720.0 -587.3
28 0.52 7.79 0.28 4.17 13.64 50.86 8.31 338.42 0.3837 -916.3 -279.2
29 0.00 1.04 0.00 0.56 14.59 50.58 8.04 339.95 0.3965 -658.0 -548.0
30 0.00 1.64 0.00 0.88 13.53 50.51 7.97 339.14 0.3801 -689.0 -535.8
31 0.00 1.21 0.00 0.64 12.20 50.29 7.74 338.37 0.3586 863.0 725.3
32 0.00 2.60 0.00 1.39 13.34 50.29 7.75 339.49 0.3759 780.0 655.3
33 0.00 1.82 0.00 0.96 12.45 50.14 7.59 338.99 0.3615 850.0 674.0
34 2.16 3.63 1.16 1.94 13.93 49.54 6.99 341.85 0.3810 928.0 692.2
35 0.00 2.25 0.00 1.21 14.35 49.55 7.01 342.16 0.3874 693.0 476.0
36 0.00 5.45 0.00 2.91 13.49 49.43 6.89 341.73 0.3736 1090.0 888.2
37 0.00 1.21 0.00 0.65 13.82 48.55 6.00 344.20 0.3746 924.0 685.4
38 0.00 1.04 0.00 0.56 14.69 48.45 5.90 345.06 0.3877 610.0 418.2
39 0.69 6.40 0.37 3.44 14.97 47.90 5.36 346.57 0.3899 872.2 571.3
40 0.00 1.99 0.00 1.06 14.04 47.88 5.33 346.04 0.3752 931.0 742.7
41 0.00 1.04 0.00 0.55 11.88 47.80 5.25 344.69 0.3408 627.0 542.8
42 0.00 1.21 0.00 0.65 15.29 47.76 5.21 347.11 0.3944 495.0 368.5
43 0.00 0.61 0.00 0.32 14.84 47.53 4.98 347.40 0.3865 775.0 532.7
44 0.35 2.51 0.18 1.34 14.26 47.21 4.66 347.87 0.3762 904.2 723.8
45 3.63 9.00 1.94 4.79 13.96 46.74 4.19 348.90 0.3701 1125.9 878.8
46 0.00 1.90 0.00 1.01 13.64 46.58 4.03 349.15 0.3644 948.0 711.9
47 0.00 2.42 0.00 1.29 13.48 46.45 3.91 349.39 0.3615 827.0 652.3
48 1.56 17.73 0.84 9.51 15.08 46.39 3.84 350.33 0.3869 863.9 763.2
49 3.20 -48.00 1.71 -48.00 14.86 46.36 3.81 350.31 0.3832 1117.4 999999
50 0.00 1.12 0.00 0.61 15.82 46.31 3.77 350.84 0.3985 602.0 523.5
51 0.00 1.04 0.00 0.55 14.31 46.16 3.61 350.56 0.3739 944.0 711.8
52 0.00 1.21 0.00 0.65 15.60 46.18 3.64 351.05 0.3945 740.0 498.1
53 0.00 3.37 0.00 1.81 15.43 46.03 3.48 351.37 0.3916 745.0 650.6
54 0.00 1.04 0.00 0.56 15.14 45.96 3.41 351.42 0.3868 708.0 568.0
55 0.00 3.98 0.00 2.13 14.79 45.95 3.41 351.29 0.3811 816.0 785.0
56 0.00 1.30 0.00 0.70 15.72 45.88 3.33 351.84 0.3958 652.0 489.3


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
