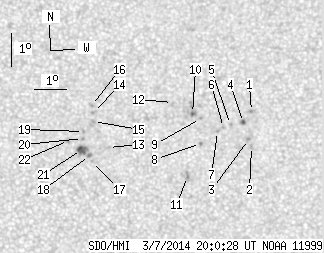

SDO HMI 2014-03-07 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.84 | 44.12 | 2.44 | 22.16 | -16.45 | 45.12 | 2.57 | 194.63 | 0.1701 | 64.6 | 131.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 0.96 | -15.74 | 48.07 | 5.52 | 212.01 | 0.1755 | 1093.0 | 828.2 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -16.79 | 48.10 | 5.55 | 209.11 | 0.1912 | 869.0 | 623.4 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.58 | 48.00 | 5.45 | 209.23 | 0.1873 | 1124.0 | 918.2 | |
| 0.78 | 2.51 | 0.39 | 1.26 | -16.07 | 47.83 | 5.28 | 209.90 | 0.1783 | 1139.4 | 857.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -16.13 | 47.43 | 4.88 | 207.82 | 0.1759 | 807.0 | 612.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.23 | 47.21 | 4.66 | 206.52 | 0.1756 | 681.0 | 540.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.35 | 47.03 | 4.48 | 205.31 | 0.1761 | 844.0 | 601.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.71 | 46.51 | 3.96 | 201.87 | 0.1783 | 942.0 | 778.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.96 | 46.49 | 3.94 | 203.55 | 0.1663 | 917.0 | 711.2 | |
| 0.43 | 6.23 | 0.22 | 3.12 | -15.81 | 46.24 | 3.69 | 202.57 | 0.1622 | 1195.8 | 838.7 | |
| 0.00 | 3.72 | 0.00 | 1.88 | -17.71 | 46.12 | 3.57 | 198.08 | 0.1921 | 1053.0 | 806.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -15.49 | 45.62 | 3.07 | 199.80 | 0.1531 | 792.0 | 732.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.85 | 43.65 | 1.10 | 186.29 | 0.1685 | -740.0 | -535.2 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -15.79 | 43.18 | 0.63 | 184.09 | 0.1496 | -1009.0 | -781.6 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -16.06 | 43.18 | 0.63 | 183.96 | 0.1543 | -938.0 | -715.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -15.58 | 43.12 | 0.57 | 183.78 | 0.1459 | -1137.0 | -782.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -17.27 | 43.12 | 0.57 | 183.14 | 0.1750 | -678.0 | -449.2 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -17.09 | 43.06 | 0.51 | 182.85 | 0.1719 | -1121.0 | -897.7 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -16.36 | 42.87 | 0.32 | 181.96 | 0.1592 | -923.0 | -646.3 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.58 | 42.84 | 0.29 | 181.73 | 0.1629 | -1040.0 | -838.8 | |
| 3.63 | 7.61 | 1.83 | 3.82 | -16.91 | 42.81 | 0.26 | 181.49 | 0.1686 | -1115.1 | -867.0 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -16.64 | 42.40 | -0.14 | 179.17 | 0.1638 | -1023.0 | -758.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
