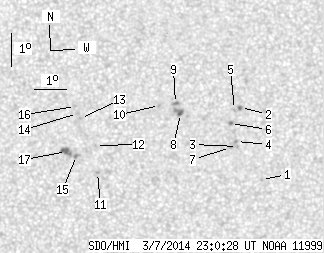

SDO HMI 2014-03-07 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.04 | 32.28 | 0.52 | 16.24 | -16.35 | 45.28 | 4.38 | 204.23 | 0.1789 | 19.6 | 14.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.57 | -17.73 | 48.90 | 8.00 | 215.93 | 0.2270 | -719.0 | -516.2 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -15.57 | 48.15 | 7.26 | 219.90 | 0.1907 | 995.0 | 876.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.75 | 48.10 | 7.21 | 215.93 | 0.2057 | 780.0 | 542.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -16.60 | 48.07 | 7.17 | 216.24 | 0.2033 | 951.0 | 751.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -15.64 | 47.97 | 7.08 | 218.98 | 0.1895 | 671.0 | 616.7 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -16.06 | 47.86 | 6.97 | 217.14 | 0.1939 | 1093.0 | 930.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -16.78 | 47.89 | 6.99 | 215.01 | 0.2040 | 658.0 | 512.4 | |
| 1.04 | 5.54 | 0.52 | 2.78 | -15.78 | 46.30 | 5.40 | 211.36 | 0.1749 | 1072.6 | 908.9 | |
| 0.00 | 2.68 | 0.00 | 1.35 | -15.48 | 46.13 | 5.24 | 211.53 | 0.1691 | 1012.0 | 860.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.54 | 45.64 | 4.75 | 208.88 | 0.1658 | 957.0 | 764.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -17.58 | 43.75 | 2.86 | 194.84 | 0.1863 | -944.0 | -844.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.76 | 43.68 | 2.78 | 195.71 | 0.1724 | -837.0 | -674.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -15.95 | 43.20 | 2.31 | 194.36 | 0.1568 | -867.0 | -700.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -15.80 | 43.11 | 2.21 | 194.04 | 0.1539 | -877.0 | -668.5 | |
| 0.00 | 2.60 | 0.00 | 1.31 | -17.06 | 43.09 | 2.19 | 192.13 | 0.1751 | -1084.0 | -803.3 | |
| 0.00 | 0.35 | 0.00 | 0.17 | -15.59 | 43.04 | 2.15 | 193.99 | 0.1501 | -892.0 | -665.8 | |
| 0.00 | 7.27 | 0.00 | 3.65 | -16.94 | 42.78 | 1.88 | 190.57 | 0.1720 | -1131.0 | -882.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
