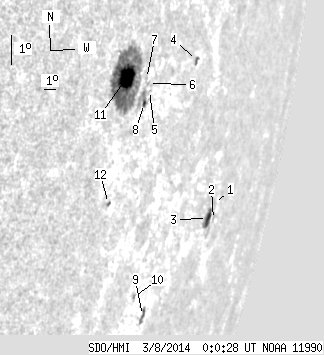

SDO HMI 2014-03-08 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.59 | 184.75 | 43.91 | 240.54 | -13.12 | 108.91 | 68.57 | 258.76 | 0.9241 | 359.5 | 199.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 4.44 | -14.90 | 117.69 | 77.35 | 256.39 | 0.9713 | 29.0 | 40.0 | |
| 0.00 | 1.21 | 0.00 | 2.53 | -15.35 | 118.10 | 77.75 | 255.90 | 0.9727 | -299.0 | -335.6 | |
| 6.75 | 12.72 | 13.46 | 25.46 | -15.41 | 117.31 | 76.97 | 255.89 | 0.9696 | 282.0 | 103.8 | |
| 1.30 | 2.94 | 1.98 | 4.50 | -11.16 | 112.38 | 72.04 | 260.64 | 0.9473 | 355.6 | 241.7 | |
| 0.00 | 0.87 | 0.00 | 1.12 | -12.49 | 108.86 | 68.52 | 259.44 | 0.9258 | 247.0 | 186.7 | |
| 0.00 | 1.47 | 0.00 | 1.89 | -12.30 | 108.67 | 68.33 | 259.66 | 0.9246 | 217.0 | 183.9 | |
| 0.00 | 0.69 | 0.00 | 0.88 | -12.17 | 108.44 | 68.10 | 259.81 | 0.9232 | 188.0 | 138.8 | |
| 1.64 | 12.20 | 2.11 | 15.56 | -12.91 | 108.68 | 68.34 | 259.00 | 0.9245 | -86.6 | 100.8 | |
| 0.00 | 6.06 | 0.00 | 9.55 | -18.90 | 113.40 | 73.06 | 252.43 | 0.9507 | -325.0 | -140.3 | |
| 0.00 | 2.25 | 0.00 | 3.32 | -18.46 | 112.09 | 71.74 | 252.93 | 0.9438 | -463.0 | -354.5 | |
| 21.38 | 140.54 | 25.72 | 169.26 | -12.32 | 106.91 | 66.57 | 259.72 | 0.9128 | 567.7 | 271.1 | |
| 0.52 | 1.64 | 0.64 | 2.03 | -16.08 | 107.74 | 67.39 | 255.58 | 0.9176 | -331.0 | -300.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
