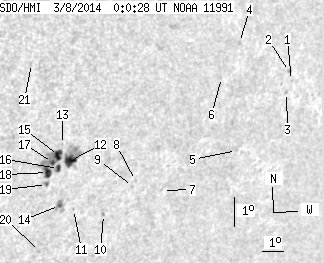

SDO HMI 2014-03-08 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.41 | 84.48 | 17.41 | 61.06 | -26.33 | 85.30 | 44.95 | 240.32 | 0.7306 | -415.8 | -328.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.58 | -22.96 | 94.10 | 53.76 | 246.80 | 0.8102 | 474.0 | 416.4 | |
| 0.00 | 1.13 | 0.00 | 0.94 | -22.70 | 93.84 | 53.50 | 247.08 | 0.8074 | 412.0 | 359.1 | |
| 0.00 | 1.56 | 0.00 | 1.31 | -23.35 | 94.05 | 53.71 | 246.33 | 0.8102 | 456.0 | 332.0 | |
| 0.00 | 1.64 | 0.00 | 1.29 | -22.07 | 90.88 | 50.54 | 247.36 | 0.7775 | 345.0 | 378.1 | |
| 0.00 | 1.04 | 0.00 | 0.85 | -25.34 | 92.52 | 52.18 | 243.59 | 0.7994 | 460.0 | 402.4 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -23.21 | 90.54 | 50.20 | 245.85 | 0.7761 | 388.0 | 304.0 | |
| 0.00 | 0.52 | 0.00 | 0.40 | -26.90 | 89.57 | 49.23 | 240.94 | 0.7749 | -409.0 | -319.7 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -26.71 | 88.10 | 47.75 | 240.77 | 0.7600 | -449.0 | -417.7 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -26.91 | 88.06 | 47.71 | 240.51 | 0.7602 | -405.0 | -349.9 | |
| 0.00 | 1.30 | 0.00 | 0.98 | -27.89 | 87.17 | 46.83 | 238.98 | 0.7545 | 586.0 | 477.2 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -27.86 | 85.69 | 45.35 | 238.53 | 0.7397 | -463.0 | -376.7 | |
| 8.57 | 25.10 | 6.14 | 17.99 | -26.35 | 84.78 | 44.44 | 240.19 | 0.7254 | -640.7 | -236.0 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -25.89 | 84.19 | 43.85 | 240.60 | 0.7177 | -460.0 | -414.0 | |
| 0.95 | 6.75 | 0.69 | 4.90 | -27.79 | 84.98 | 44.64 | 238.37 | 0.7324 | -739.0 | -507.2 | |
| 5.28 | 37.39 | 3.75 | 26.49 | -26.24 | 84.17 | 43.83 | 240.12 | 0.7187 | -807.7 | -604.6 | |
| 2.34 | -15.00 | 1.67 | -15.00 | -26.65 | 84.36 | 44.02 | 239.65 | 0.7221 | -566.7 | 999999 | |
| 1.64 | -15.00 | 1.17 | -15.00 | -26.48 | 84.01 | 43.66 | 239.74 | 0.7178 | -970.7 | 999999 | |
| 5.11 | -15.00 | 3.62 | -15.00 | -26.81 | 83.93 | 43.59 | 239.28 | 0.7182 | -777.6 | 999999 | |
| 0.52 | 1.64 | 0.37 | 1.17 | -27.18 | 84.07 | 43.72 | 238.83 | 0.7209 | -647.3 | -509.3 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -29.30 | 84.84 | 44.50 | 236.35 | 0.7366 | -561.0 | -455.5 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -23.52 | 81.80 | 41.45 | 243.02 | 0.6835 | -594.0 | -413.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
