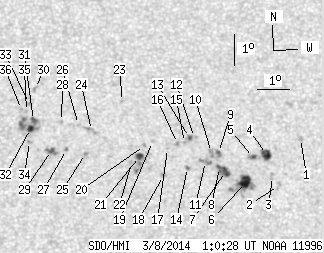

SDO HMI 2014-03-08 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.76 | 148.10 | 18.33 | 80.23 | 14.03 | 50.39 | 10.60 | 333.89 | 0.4069 | -109.1 | 0.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.51 | 0.00 | 1.39 | 14.60 | 54.68 | 14.89 | 325.98 | 0.4462 | -678.0 | -568.0 | |
| 0.00 | 2.94 | 0.00 | 1.60 | 13.08 | 53.88 | 14.09 | 325.41 | 0.4195 | -506.0 | -636.2 | |
| 0.00 | 2.68 | 0.00 | 1.46 | 13.36 | 53.71 | 13.92 | 326.12 | 0.4216 | -549.0 | -561.3 | |
| 6.23 | 14.63 | 3.41 | 8.01 | 14.05 | 53.57 | 13.77 | 327.32 | 0.4295 | -831.0 | -598.9 | |
| 1.13 | -4.00 | 0.62 | -4.00 | 13.95 | 53.15 | 13.35 | 327.98 | 0.4245 | -846.7 | 999999 | |
| 10.21 | 25.45 | 5.55 | 13.80 | 13.14 | 52.85 | 13.06 | 327.51 | 0.4113 | -1043.8 | -723.0 | |
| 4.07 | 11.25 | 2.21 | 6.11 | 13.47 | 52.24 | 12.45 | 329.17 | 0.4107 | -1026.9 | -723.0 | |
| 1.13 | -7.00 | 0.61 | -7.00 | 13.60 | 52.06 | 12.27 | 329.69 | 0.4109 | -938.1 | 999999 | |
| 0.61 | 3.20 | 0.33 | 1.74 | 14.07 | 52.06 | 12.26 | 330.29 | 0.4174 | -752.4 | -685.0 | |
| 0.00 | 3.81 | 0.00 | 2.07 | 14.07 | 51.84 | 12.04 | 330.73 | 0.4156 | -633.0 | -623.4 | |
| 0.00 | 6.23 | 0.00 | 3.38 | 13.78 | 51.63 | 11.84 | 330.79 | 0.4100 | -767.0 | -673.3 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 14.53 | 51.33 | 11.53 | 332.31 | 0.4183 | -275.0 | -488.9 | |
| 1.04 | 2.08 | 0.57 | 1.13 | 14.53 | 51.17 | 11.38 | 332.63 | 0.4171 | -811.0 | -646.0 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 13.57 | 51.06 | 11.26 | 331.74 | 0.4028 | -846.0 | -741.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 14.37 | 51.01 | 11.21 | 332.78 | 0.4136 | -712.0 | -574.3 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 14.33 | 50.78 | 10.99 | 333.20 | 0.4115 | -839.0 | -703.7 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 14.16 | 50.46 | 10.67 | 333.69 | 0.4068 | -440.0 | -276.7 | |
| 0.00 | 2.34 | 0.00 | 1.26 | 13.30 | 50.30 | 10.50 | 333.06 | 0.3933 | 753.0 | 576.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.37 | 50.01 | 10.21 | 334.91 | 0.4067 | 483.0 | 398.7 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 14.24 | 49.75 | 9.96 | 335.32 | 0.4031 | 669.0 | 537.9 | |
| 2.77 | 12.81 | 1.49 | 6.90 | 13.89 | 49.58 | 9.78 | 335.32 | 0.3968 | 795.2 | 714.3 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 13.69 | 49.32 | 9.53 | 335.68 | 0.3922 | 792.0 | 643.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 15.64 | 49.13 | 9.33 | 338.05 | 0.4196 | 688.0 | 570.4 | |
| 0.00 | 5.37 | 0.00 | 2.90 | 14.69 | 48.12 | 8.33 | 339.39 | 0.3997 | 661.0 | 547.9 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 13.95 | 47.90 | 8.11 | 339.21 | 0.3874 | 937.0 | 757.2 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 14.87 | 47.72 | 7.93 | 340.46 | 0.4003 | 315.0 | 339.1 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 14.07 | 47.32 | 7.53 | 340.69 | 0.3859 | 867.0 | 741.1 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 14.96 | 47.20 | 7.40 | 341.74 | 0.3989 | 568.0 | 486.6 | |
| 1.47 | 6.06 | 0.79 | 3.25 | 14.03 | 46.86 | 7.06 | 341.77 | 0.3829 | 1060.5 | 829.9 | |
| 0.00 | 2.51 | 0.00 | 1.36 | 16.02 | 46.43 | 6.63 | 344.28 | 0.4114 | 556.0 | 484.9 | |
| 1.90 | 21.55 | 1.03 | 11.60 | 14.98 | 46.33 | 6.54 | 343.77 | 0.3951 | 786.6 | 746.4 | |
| 3.20 | -31.00 | 1.72 | -31.00 | 14.72 | 46.23 | 6.43 | 343.82 | 0.3907 | 1053.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 15.53 | 46.22 | 6.43 | 344.41 | 0.4031 | 736.0 | 635.4 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 14.31 | 46.18 | 6.39 | 343.62 | 0.3840 | 853.0 | 705.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.27 | 46.12 | 6.33 | 344.46 | 0.3986 | 699.0 | 534.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 15.33 | 45.97 | 6.17 | 344.86 | 0.3989 | 642.0 | 557.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
