SDO HMI 2014-03-08 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.59 | 150.82 | 18.28 | 81.79 | 13.94 | 50.36 | 11.11 | 332.70 | 0.4094 | -121.7 | 28.7 | |
|
previous
or next observation for the same group /

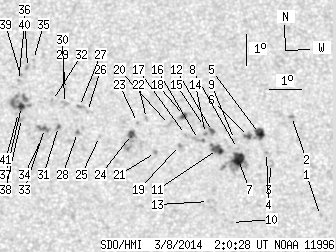

back to the solar disc SDO HMI 2014-03-08 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.71 | 11.47 | 55.39 | 16.14 | 319.26 | 0.4193 | -642.0 | -571.6 | |
| 0.00 | 1.64 | 0.00 | 0.91 | 14.59 | 54.68 | 15.43 | 325.00 | 0.4508 | -730.0 | -601.8 | |
| 0.00 | 2.77 | 0.00 | 1.51 | 13.07 | 53.94 | 14.69 | 324.26 | 0.4248 | -478.0 | -649.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 13.41 | 53.80 | 14.56 | 324.99 | 0.4280 | -792.0 | -684.2 | |
| 6.15 | 9.44 | 3.38 | 5.18 | 14.01 | 53.62 | 14.37 | 326.14 | 0.4341 | -786.8 | -591.8 | |
| 1.64 | 3.81 | 0.90 | 2.09 | 13.90 | 53.26 | 14.02 | 326.66 | 0.4296 | -882.0 | -688.7 | |
| 10.47 | 28.48 | 5.70 | 15.49 | 13.16 | 52.90 | 13.66 | 326.35 | 0.4167 | -1058.8 | -705.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 13.51 | 52.89 | 13.65 | 326.84 | 0.4212 | -680.0 | -550.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 13.79 | 52.81 | 13.57 | 327.37 | 0.4243 | -576.0 | -438.9 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 11.16 | 52.58 | 13.33 | 324.12 | 0.3876 | -747.0 | -602.9 | |
| 5.37 | 9.09 | 2.92 | 4.94 | 13.46 | 52.26 | 13.01 | 328.01 | 0.4152 | -1014.9 | -799.0 | |
| 1.39 | 3.03 | 0.76 | 1.65 | 14.03 | 52.14 | 12.89 | 328.98 | 0.4218 | -752.4 | -620.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 11.80 | 51.89 | 12.65 | 326.49 | 0.3898 | -704.0 | -563.1 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 13.96 | 51.91 | 12.67 | 329.34 | 0.4191 | -859.0 | -766.3 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 14.18 | 51.89 | 12.65 | 329.65 | 0.4220 | -658.0 | -538.0 | |
| 0.00 | 4.59 | 0.00 | 2.49 | 13.76 | 51.68 | 12.44 | 329.55 | 0.4145 | -799.0 | -663.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 13.91 | 51.28 | 12.04 | 330.55 | 0.4134 | -581.0 | -436.1 | |
| 1.73 | 4.59 | 0.94 | 2.50 | 14.52 | 51.28 | 12.04 | 331.27 | 0.4218 | -839.5 | -584.5 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 13.55 | 51.07 | 11.83 | 330.53 | 0.4069 | -814.0 | -697.7 | |
| 0.00 | 4.24 | 0.00 | 2.31 | 14.22 | 50.80 | 11.55 | 331.91 | 0.4140 | -806.0 | -537.3 | |
| 0.00 | 1.99 | 0.00 | 1.07 | 13.31 | 50.31 | 11.07 | 331.85 | 0.3977 | 834.0 | 655.7 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 14.39 | 50.09 | 10.84 | 333.59 | 0.4113 | 538.0 | 391.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 14.26 | 49.80 | 10.55 | 334.05 | 0.4073 | 685.0 | 564.1 | |
| 2.60 | 11.69 | 1.40 | 6.30 | 13.87 | 49.59 | 10.35 | 334.06 | 0.4003 | 821.9 | 700.3 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 13.78 | 48.59 | 9.35 | 336.19 | 0.3924 | 743.0 | 601.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 14.58 | 48.25 | 9.01 | 337.75 | 0.4020 | 600.0 | 443.0 | |
| 0.00 | 2.25 | 0.00 | 1.22 | 14.73 | 48.01 | 8.77 | 338.44 | 0.4028 | 853.0 | 626.0 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 13.90 | 47.91 | 8.67 | 337.86 | 0.3899 | 888.0 | 788.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 15.27 | 47.60 | 8.35 | 339.85 | 0.4085 | 598.0 | 450.0 | |
| 0.00 | 3.55 | 0.00 | 1.92 | 14.82 | 47.55 | 8.30 | 339.56 | 0.4015 | 665.0 | 536.3 | |
| 0.61 | 2.60 | 0.33 | 1.40 | 14.08 | 47.33 | 8.09 | 339.38 | 0.3892 | 800.4 | 723.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 14.91 | 47.18 | 7.93 | 340.48 | 0.4008 | 571.0 | 525.5 | |
| 0.69 | 6.58 | 0.37 | 3.53 | 14.01 | 46.90 | 7.65 | 340.34 | 0.3857 | 1089.4 | 820.1 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 13.69 | 46.79 | 7.55 | 340.30 | 0.3802 | 835.0 | 629.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 16.22 | 46.64 | 7.39 | 342.74 | 0.4180 | 579.0 | 418.5 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 15.96 | 46.44 | 7.19 | 342.98 | 0.4131 | 689.0 | 559.7 | |
| 2.94 | 19.56 | 1.58 | 10.54 | 14.70 | 46.21 | 6.96 | 342.55 | 0.3928 | 1082.7 | 770.0 | |
| 0.00 | 2.51 | 0.00 | 1.35 | 14.32 | 46.20 | 6.95 | 342.27 | 0.3868 | 867.0 | 690.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 15.73 | 46.21 | 6.97 | 343.32 | 0.4086 | 692.0 | 585.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.54 | 46.14 | 6.90 | 343.34 | 0.4053 | 671.0 | 514.8 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 14.51 | 46.11 | 6.86 | 342.63 | 0.3893 | 711.0 | 580.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
