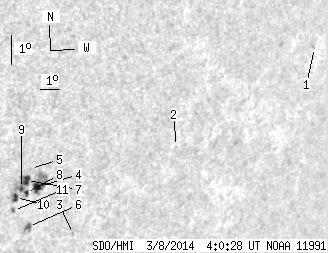

SDO HMI 2014-03-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.26 | 58.63 | 14.97 | 43.44 | -26.56 | 84.57 | 46.42 | 240.54 | 0.7464 | -522.4 | -446.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.24 | -20.87 | 96.40 | 58.25 | 249.86 | 0.8484 | 545.0 | 498.3 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -24.57 | 90.75 | 52.60 | 244.62 | 0.8019 | 470.0 | 350.1 | |
| 0.00 | 0.87 | 0.00 | 0.68 | -27.73 | 87.22 | 49.07 | 239.86 | 0.7756 | 518.0 | 341.6 | |
| 7.45 | 20.96 | 5.53 | 15.55 | -26.40 | 84.72 | 46.57 | 240.82 | 0.7474 | -651.9 | -290.6 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -25.88 | 84.07 | 45.92 | 241.29 | 0.7392 | -352.0 | -323.0 | |
| 1.99 | 5.72 | 1.49 | 4.29 | -27.67 | 84.92 | 46.77 | 239.24 | 0.7532 | -656.9 | -470.4 | |
| 4.42 | 26.93 | 3.24 | 19.75 | -26.26 | 84.07 | 45.92 | 240.79 | 0.7404 | -874.2 | -682.8 | |
| 1.47 | -7.00 | 1.09 | -7.00 | -26.63 | 84.26 | 46.11 | 240.37 | 0.7434 | -559.0 | 999999 | |
| 1.56 | -7.00 | 1.14 | -7.00 | -26.53 | 83.97 | 45.82 | 240.41 | 0.7401 | -927.9 | 999999 | |
| 2.94 | -7.00 | 2.16 | -7.00 | -26.83 | 83.83 | 45.68 | 239.98 | 0.7398 | -795.2 | 999999 | |
| 0.43 | 2.16 | 0.32 | 1.59 | -27.24 | 83.95 | 45.80 | 239.48 | 0.7423 | -615.4 | -450.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
