SDO HMI 2014-03-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.24 | 210.02 | 23.18 | 132.75 | -10.23 | 358.91 | -38.69 | 97.32 | 0.6220 | 536.4 | 366.2 | |
|
previous
or next observation for the same group /

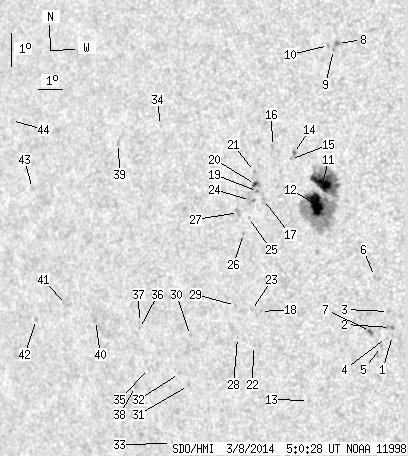

back to the solar disc SDO HMI 2014-03-08 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.47 | -14.21 | 2.17 | -35.43 | 104.36 | 0.5823 | 727.0 | 624.6 | |
| 0.00 | 3.55 | 0.00 | 2.16 | -13.97 | 2.14 | -35.46 | 103.93 | 0.5823 | 854.0 | 743.3 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -13.49 | 2.15 | -35.45 | 103.11 | 0.5813 | 719.0 | 540.9 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -14.26 | 1.94 | -35.66 | 104.38 | 0.5856 | 583.0 | 554.0 | |
| 0.00 | 1.65 | 0.00 | 1.01 | -14.51 | 1.70 | -35.90 | 104.76 | 0.5893 | 669.0 | 504.5 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -12.41 | 1.81 | -35.80 | 101.20 | 0.5846 | 736.0 | 578.1 | |
| 0.78 | 2.86 | 0.48 | 1.76 | -14.03 | 1.37 | -36.23 | 103.89 | 0.5929 | 800.6 | 598.2 | |
| 0.00 | 2.94 | 0.00 | 1.81 | -5.40 | 1.23 | -36.37 | 89.23 | 0.5927 | 913.0 | 757.4 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -5.56 | 1.07 | -36.53 | 89.53 | 0.5947 | 804.0 | 637.7 | |
| 0.00 | 1.56 | 0.00 | 0.96 | -5.43 | 0.90 | -36.71 | 89.34 | 0.5973 | 643.0 | 548.1 | |
| 14.29 | 146.54 | 8.86 | 91.05 | -9.51 | 0.26 | -37.34 | 96.18 | 0.6040 | 1082.1 | 468.6 | |
| 20.61 | -11.00 | 12.84 | -11.00 | -10.11 | 359.91 | -37.69 | 97.17 | 0.6089 | 1079.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -15.91 | 358.56 | -39.04 | 106.34 | 0.6335 | 573.0 | 461.5 | |
| 0.00 | 2.42 | 0.00 | 1.52 | -8.53 | 359.27 | -38.33 | 94.59 | 0.6176 | 805.0 | 668.6 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -8.70 | 359.14 | -38.47 | 94.86 | 0.6194 | 594.0 | 490.6 | |
| 0.00 | 1.65 | 0.00 | 1.05 | -8.26 | 358.49 | -39.11 | 94.17 | 0.6282 | 305.0 | 330.2 | |
| 0.00 | 1.65 | 0.00 | 1.05 | -9.80 | 357.94 | -39.67 | 96.63 | 0.6355 | 811.0 | 581.4 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -13.11 | 357.25 | -40.36 | 101.76 | 0.6465 | 703.0 | 588.1 | |
| 0.00 | 1.21 | 0.00 | 0.78 | -9.55 | 357.74 | -39.87 | 96.22 | 0.6382 | 739.0 | 632.6 | |
| 1.56 | 5.02 | 1.00 | 3.23 | -9.33 | 357.69 | -39.92 | 95.89 | 0.6388 | 693.0 | 503.5 | |
| 0.00 | 1.21 | 0.00 | 0.78 | -8.94 | 357.70 | -39.90 | 95.28 | 0.6387 | 686.0 | 558.9 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -14.10 | 356.76 | -40.85 | 103.22 | 0.6539 | 521.0 | 454.0 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -13.05 | 356.90 | -40.71 | 101.63 | 0.6510 | 630.0 | 551.0 | |
| 0.00 | 4.59 | 0.00 | 2.96 | -9.79 | 357.42 | -40.18 | 96.60 | 0.6423 | 34.0 | 117.4 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -10.29 | 357.27 | -40.33 | 97.38 | 0.6445 | 395.0 | 303.9 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -10.74 | 357.00 | -40.61 | 98.08 | 0.6482 | 588.0 | 443.5 | |
| 0.00 | 3.38 | 0.00 | 2.19 | -10.11 | 356.90 | -40.71 | 97.09 | 0.6493 | -216.0 | -322.6 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -13.81 | 356.17 | -41.44 | 102.70 | 0.6611 | 415.0 | 344.6 | |
| 0.00 | 1.56 | 0.00 | 1.02 | -12.85 | 356.29 | -41.32 | 101.26 | 0.6587 | 688.0 | 525.6 | |
| 0.00 | 1.21 | 0.00 | 0.82 | -13.59 | 354.26 | -43.34 | 102.16 | 0.6848 | -118.0 | -126.1 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -15.06 | 353.81 | -43.79 | 104.25 | 0.6918 | -520.0 | -398.9 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -14.67 | 353.53 | -44.08 | 103.66 | 0.6949 | -692.0 | -653.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -16.72 | 352.60 | -45.00 | 106.45 | 0.7084 | -537.0 | -439.6 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -7.27 | 354.12 | -43.48 | 92.90 | 0.6859 | 606.0 | 469.5 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -14.41 | 352.25 | -45.36 | 103.14 | 0.7100 | -472.0 | -431.2 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -13.19 | 352.16 | -45.44 | 101.42 | 0.7101 | -443.0 | -466.7 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -13.01 | 352.20 | -45.40 | 101.17 | 0.7095 | -409.0 | -482.4 | |
| 0.00 | 1.73 | 0.00 | 1.23 | -14.89 | 351.54 | -46.06 | 103.75 | 0.7188 | -592.0 | -430.4 | |
| 0.00 | 1.30 | 0.00 | 0.91 | -7.64 | 352.30 | -45.31 | 93.57 | 0.7083 | -568.0 | -554.9 | |
| 0.00 | 1.73 | 0.00 | 1.25 | -12.78 | 350.30 | -47.30 | 100.74 | 0.7318 | -559.0 | -447.9 | |
| 0.00 | 3.98 | 0.00 | 2.95 | -12.19 | 349.13 | -48.48 | 99.89 | 0.7452 | -161.0 | -229.2 | |
| 0.00 | 1.04 | 0.00 | 0.79 | -12.50 | 347.64 | -49.96 | 100.27 | 0.7620 | -524.0 | -419.7 | |
| 0.00 | 2.25 | 0.00 | 1.69 | -8.62 | 348.31 | -49.29 | 95.13 | 0.7548 | -257.0 | -249.2 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -6.52 | 347.67 | -49.94 | 92.40 | 0.7634 | -571.0 | -511.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
