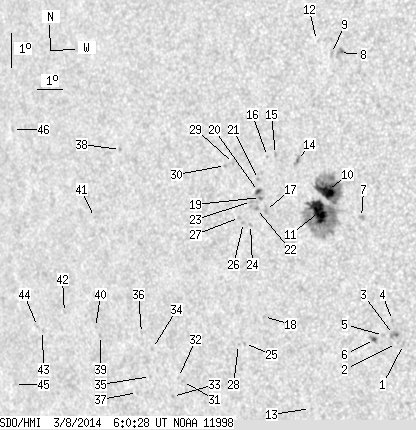

SDO HMI 2014-03-08 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.67 | 210.32 | 25.74 | 131.42 | -10.15 | 359.23 | -37.83 | 97.22 | 0.6104 | 461.1 | 349.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.65 | 0.00 | 0.99 | -14.27 | 2.45 | -34.61 | 104.64 | 0.5712 | 626.0 | 627.9 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -14.22 | 2.19 | -34.87 | 104.50 | 0.5746 | 604.0 | 609.0 | |
| 0.00 | 4.76 | 0.00 | 2.88 | -13.94 | 2.13 | -34.93 | 104.01 | 0.5749 | 858.0 | 762.6 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -13.53 | 2.16 | -34.89 | 103.29 | 0.5737 | 615.0 | 545.3 | |
| 0.00 | 1.47 | 0.00 | 0.89 | -13.95 | 1.75 | -35.31 | 103.93 | 0.5801 | 652.0 | 486.0 | |
| 0.87 | 3.55 | 0.53 | 2.17 | -14.04 | 1.39 | -35.66 | 104.02 | 0.5852 | 817.9 | 654.1 | |
| 0.00 | 2.77 | 0.00 | 1.68 | -10.38 | 1.48 | -35.58 | 97.74 | 0.5797 | 89.0 | -237.9 | |
| 0.00 | 4.68 | 0.00 | 2.85 | -5.43 | 1.17 | -35.89 | 89.22 | 0.5859 | 820.0 | 710.9 | |
| 0.00 | 1.65 | 0.00 | 1.01 | -5.44 | 0.87 | -36.19 | 89.28 | 0.5900 | 710.0 | 533.5 | |
| 16.98 | 148.72 | 10.45 | 91.76 | -9.49 | 0.32 | -36.73 | 96.17 | 0.5956 | 1139.7 | 426.3 | |
| 22.35 | -10.00 | 13.82 | -10.00 | -10.09 | 359.94 | -37.12 | 97.16 | 0.6010 | 1065.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -5.01 | 0.34 | -36.72 | 88.63 | 0.5980 | 290.0 | 361.0 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -15.91 | 358.53 | -38.52 | 106.47 | 0.6269 | 512.0 | 482.0 | |
| 0.00 | 3.55 | 0.00 | 2.21 | -8.51 | 359.30 | -37.75 | 94.55 | 0.6097 | 800.0 | 657.6 | |
| 0.00 | 1.39 | 0.00 | 0.87 | -8.27 | 358.49 | -38.57 | 94.17 | 0.6209 | 473.0 | 339.1 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -8.30 | 358.17 | -38.88 | 94.24 | 0.6252 | 328.0 | 325.7 | |
| 0.00 | 3.03 | 0.00 | 1.93 | -9.90 | 357.89 | -39.17 | 96.79 | 0.6289 | 768.0 | 660.8 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -13.03 | 357.28 | -39.78 | 101.71 | 0.6389 | 663.0 | 557.2 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -9.50 | 357.75 | -39.31 | 96.15 | 0.6308 | 667.0 | 643.3 | |
| 1.47 | 2.86 | 0.94 | 1.82 | -9.31 | 357.69 | -39.36 | 95.86 | 0.6315 | 765.6 | 562.5 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -8.96 | 357.74 | -39.32 | 95.30 | 0.6308 | 696.0 | 564.5 | |
| 0.00 | 2.08 | 0.00 | 1.33 | -9.81 | 357.55 | -39.51 | 96.65 | 0.6335 | 574.0 | 369.8 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -9.59 | 357.38 | -39.68 | 96.29 | 0.6356 | -195.0 | -154.3 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -10.27 | 357.24 | -39.82 | 97.36 | 0.6376 | 376.0 | 289.5 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -13.77 | 356.36 | -40.70 | 102.75 | 0.6516 | 542.0 | 432.5 | |
| 0.00 | 1.30 | 0.00 | 0.84 | -10.18 | 356.98 | -40.08 | 97.23 | 0.6411 | -197.0 | -251.1 | |
| 0.00 | 1.47 | 0.00 | 0.95 | -10.02 | 356.84 | -40.21 | 96.97 | 0.6428 | -431.0 | -389.9 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -13.78 | 356.12 | -40.94 | 102.73 | 0.6548 | 541.0 | 412.5 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -8.41 | 356.83 | -40.23 | 94.45 | 0.6431 | 586.0 | 554.9 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -8.44 | 356.51 | -40.55 | 94.51 | 0.6474 | 567.0 | 515.6 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -14.69 | 353.57 | -43.48 | 103.76 | 0.6877 | -705.0 | -591.8 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -14.56 | 353.44 | -43.62 | 103.55 | 0.6892 | -614.0 | -545.8 | |
| 0.00 | 1.13 | 0.00 | 0.77 | -15.10 | 353.04 | -44.02 | 104.28 | 0.6946 | -617.0 | -488.6 | |
| 0.00 | 1.30 | 0.00 | 0.90 | -13.60 | 352.56 | -44.50 | 102.08 | 0.6990 | -609.0 | -523.0 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -14.43 | 352.26 | -44.79 | 103.23 | 0.7033 | -416.0 | -394.3 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -13.12 | 352.20 | -44.86 | 101.36 | 0.7031 | -658.0 | -545.7 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -14.85 | 351.58 | -45.47 | 103.75 | 0.7118 | -390.0 | -348.0 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -7.60 | 352.31 | -44.75 | 93.47 | 0.7014 | -688.0 | -556.9 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -13.02 | 350.42 | -46.64 | 101.10 | 0.7242 | -491.0 | -499.0 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -12.76 | 350.26 | -46.80 | 100.74 | 0.7260 | -675.0 | -635.2 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -9.51 | 350.89 | -46.16 | 96.23 | 0.7180 | -507.0 | -454.6 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -12.19 | 348.99 | -48.07 | 99.91 | 0.7405 | -543.0 | -443.4 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -12.63 | 347.86 | -49.20 | 100.46 | 0.7535 | -577.0 | -486.2 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -12.49 | 347.66 | -49.39 | 100.27 | 0.7556 | -492.0 | -394.8 | |
| 0.00 | 1.21 | 0.00 | 0.94 | -14.10 | 346.10 | -50.96 | 102.32 | 0.7734 | -617.0 | -492.9 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -6.57 | 347.67 | -49.39 | 92.42 | 0.7571 | -496.0 | -413.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
