SDO HMI 2014-03-08 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.71 | 58.32 | 15.93 | 45.22 | -26.54 | 84.72 | 48.98 | 241.28 | 0.7716 | -580.9 | -330.6 | |
|
previous
or next observation for the same group /

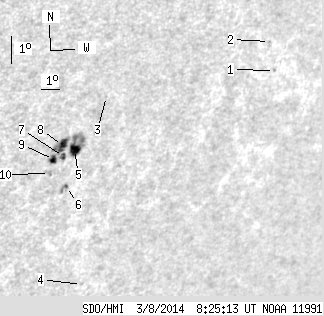

back to the solar disc SDO HMI 2014-03-08 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.96 | -23.08 | 93.57 | 57.83 | 247.21 | 0.8468 | 511.0 | 481.0 | |
| 0.00 | 0.87 | 0.00 | 0.78 | -22.25 | 92.72 | 56.99 | 248.10 | 0.8386 | 409.0 | 388.1 | |
| 0.00 | 0.52 | 0.00 | 0.40 | -24.71 | 85.26 | 49.52 | 243.77 | 0.7726 | -214.0 | -221.8 | |
| 0.00 | 0.87 | 0.00 | 0.73 | -30.61 | 87.71 | 51.97 | 237.12 | 0.8095 | -480.0 | -380.9 | |
| 8.32 | 24.69 | 6.44 | 19.10 | -26.47 | 84.61 | 48.87 | 241.38 | 0.7704 | -637.5 | -183.8 | |
| 0.52 | 4.16 | 0.41 | 3.25 | -27.64 | 84.89 | 49.15 | 239.98 | 0.7762 | -618.2 | -498.9 | |
| 1.82 | 23.48 | 1.40 | 17.94 | -26.73 | 84.20 | 48.46 | 240.94 | 0.7672 | -597.5 | -631.4 | |
| 6.67 | -7.00 | 5.10 | -7.00 | -26.40 | 83.96 | 48.23 | 241.29 | 0.7639 | -886.2 | 999999 | |
| 3.38 | -7.00 | 2.58 | -7.00 | -26.87 | 83.78 | 48.04 | 240.64 | 0.7634 | -761.7 | 999999 | |
| 0.00 | 2.69 | 0.00 | 2.06 | -27.31 | 83.83 | 48.09 | 240.09 | 0.7652 | -666.0 | -361.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
