SDO HMI 2014-03-08 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.25 | 145.82 | 21.67 | 80.34 | 14.28 | 50.21 | 14.47 | 326.54 | 0.4403 | -41.1 | 50.1 | |
|
previous
or next observation for the same group /

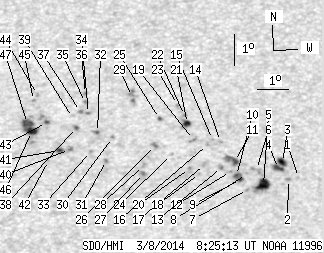

back to the solar disc SDO HMI 2014-03-08 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.44 | 13.45 | 54.53 | 18.79 | 317.90 | 0.4693 | -618.0 | -532.1 | |
| 0.00 | 2.08 | 0.00 | 1.16 | 13.37 | 54.20 | 18.46 | 318.29 | 0.4650 | -798.0 | -667.0 | |
| 4.16 | 12.65 | 2.33 | 7.08 | 13.90 | 54.05 | 18.31 | 319.30 | 0.4697 | -812.7 | -643.7 | |
| 3.29 | -3.00 | 1.84 | -3.00 | 13.71 | 53.91 | 18.17 | 319.24 | 0.4659 | -981.3 | 999999 | |
| 9.36 | 14.73 | 5.20 | 8.18 | 13.18 | 53.38 | 17.64 | 319.30 | 0.4545 | -1087.6 | -764.4 | |
| 0.00 | 3.72 | 0.00 | 2.07 | 13.65 | 53.19 | 17.46 | 320.29 | 0.4581 | -548.0 | -560.9 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.00 | 52.86 | 17.12 | 319.90 | 0.4471 | -774.0 | -666.7 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 13.48 | 52.86 | 17.12 | 320.58 | 0.4528 | -371.0 | -345.7 | |
| 1.30 | 5.72 | 0.72 | 3.17 | 13.31 | 52.66 | 16.92 | 320.68 | 0.4488 | -1120.5 | -921.1 | |
| 1.30 | -9.00 | 0.72 | -9.00 | 13.43 | 52.54 | 16.80 | 321.06 | 0.4491 | -1119.3 | 999999 | |
| 2.34 | 8.32 | 1.30 | 4.62 | 13.88 | 52.51 | 16.77 | 321.74 | 0.4542 | -883.1 | -739.8 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 13.55 | 52.35 | 16.62 | 321.53 | 0.4488 | -912.0 | -719.8 | |
| 0.00 | 2.43 | 0.00 | 1.34 | 13.67 | 52.08 | 16.34 | 322.17 | 0.4475 | -920.0 | -698.6 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 14.50 | 52.11 | 16.37 | 323.26 | 0.4580 | 574.0 | 371.8 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 14.56 | 51.85 | 16.12 | 323.76 | 0.4564 | -678.0 | -561.4 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 14.39 | 51.68 | 15.94 | 323.83 | 0.4527 | -814.0 | -582.1 | |
| 0.00 | 1.99 | 0.00 | 1.10 | 13.75 | 51.54 | 15.80 | 323.20 | 0.4434 | -802.0 | -618.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 13.45 | 51.36 | 15.62 | 323.11 | 0.4381 | -842.0 | -678.6 | |
| 0.00 | 3.29 | 0.00 | 1.82 | 14.53 | 51.24 | 15.51 | 324.78 | 0.4506 | -884.0 | -626.9 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 13.60 | 51.05 | 15.31 | 323.86 | 0.4371 | -842.0 | -792.2 | |
| 3.21 | 6.41 | 1.78 | 3.56 | 15.04 | 51.09 | 15.35 | 325.70 | 0.4557 | -923.7 | -471.4 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 15.30 | 51.01 | 15.28 | 326.16 | 0.4583 | -719.0 | -622.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 15.65 | 50.82 | 15.08 | 326.93 | 0.4610 | -515.0 | -415.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 14.03 | 50.51 | 14.77 | 325.42 | 0.4376 | 265.0 | 311.2 | |
| 0.52 | 1.56 | 0.29 | 0.86 | 15.17 | 50.21 | 14.47 | 327.43 | 0.4498 | 763.2 | 630.9 | |
| 0.00 | 3.21 | 0.00 | 1.76 | 14.30 | 49.99 | 14.25 | 326.73 | 0.4366 | 905.0 | 670.7 | |
| 0.00 | 2.51 | 0.00 | 1.37 | 13.40 | 49.58 | 13.84 | 326.29 | 0.4212 | 1061.0 | 799.3 | |
| 0.00 | 2.60 | 0.00 | 1.42 | 13.65 | 49.60 | 13.86 | 326.60 | 0.4247 | 687.0 | 605.1 | |
| 0.00 | 7.19 | 0.00 | 3.99 | 15.86 | 49.40 | 13.66 | 329.72 | 0.4523 | 785.0 | 725.7 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 14.52 | 48.67 | 12.93 | 329.48 | 0.4286 | -463.0 | -409.3 | |
| 0.00 | 1.73 | 0.00 | 0.94 | 13.78 | 48.44 | 12.70 | 329.02 | 0.4166 | 777.0 | 690.2 | |
| 0.52 | 2.51 | 0.28 | 1.37 | 14.66 | 48.21 | 12.47 | 330.57 | 0.4269 | 675.5 | 547.1 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 14.05 | 47.95 | 12.22 | 330.33 | 0.4165 | 671.0 | 606.5 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 15.27 | 47.96 | 12.22 | 331.75 | 0.4333 | 696.0 | 522.6 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 15.62 | 47.89 | 12.15 | 332.28 | 0.4377 | 781.0 | 737.2 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 15.91 | 47.91 | 12.17 | 332.57 | 0.4418 | 778.0 | 681.8 | |
| 0.00 | 1.99 | 0.00 | 1.09 | 15.33 | 47.71 | 11.97 | 332.30 | 0.4323 | 924.0 | 722.2 | |
| 0.52 | 1.56 | 0.28 | 0.85 | 14.81 | 47.56 | 11.82 | 332.03 | 0.4240 | 759.0 | 615.6 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 15.13 | 47.45 | 11.71 | 332.60 | 0.4276 | 175.0 | 269.0 | |
| 0.00 | 3.38 | 0.00 | 1.84 | 14.10 | 47.30 | 11.56 | 331.73 | 0.4121 | 960.0 | 717.8 | |
| 1.56 | 4.07 | 0.85 | 2.21 | 14.06 | 46.98 | 11.24 | 332.34 | 0.4092 | 1088.4 | 773.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 13.73 | 46.62 | 10.88 | 332.72 | 0.4019 | 804.0 | 652.2 | |
| 0.78 | 5.28 | 0.43 | 2.88 | 14.94 | 46.62 | 10.88 | 334.09 | 0.4192 | 785.9 | 570.7 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 15.84 | 46.39 | 10.65 | 335.50 | 0.4304 | 605.0 | 502.0 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 15.65 | 46.25 | 10.51 | 335.58 | 0.4267 | 740.0 | 592.2 | |
| 5.37 | 22.09 | 2.92 | 12.00 | 14.64 | 46.14 | 10.40 | 334.78 | 0.4116 | 1122.5 | 748.4 | |
| 5.02 | -46.00 | 2.73 | -46.00 | 14.90 | 46.02 | 10.29 | 335.29 | 0.4145 | 919.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
