SDO HMI 2014-03-08 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.25 | 136.09 | 43.73 | 219.04 | -12.95 | 108.45 | 73.04 | 258.69 | 0.9502 | 340.5 | 212.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

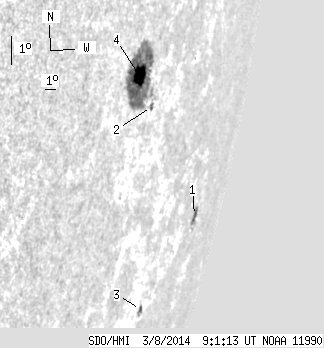

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.24 | 8.49 | 12.98 | 25.97 | -15.32 | 117.62 | 82.21 | 255.59 | 0.9874 | 77.2 | 88.4 | |
| 1.30 | 2.95 | 2.09 | 4.74 | -13.06 | 108.61 | 73.20 | 258.57 | 0.9528 | -46.9 | 63.9 | |
| 1.47 | 4.16 | 3.14 | 8.88 | -18.75 | 113.64 | 78.23 | 252.38 | 0.9737 | -140.5 | -26.5 | |
| 17.24 | 120.49 | 25.52 | 179.45 | -12.32 | 106.86 | 71.45 | 259.45 | 0.9436 | 565.3 | 233.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
