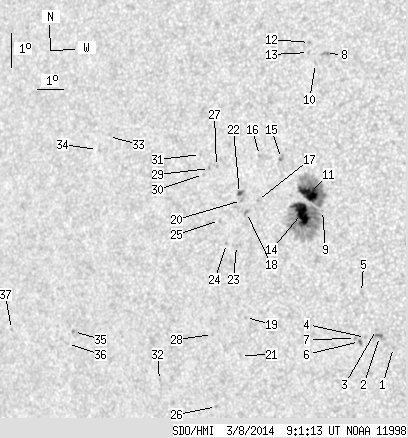

SDO HMI 2014-03-08 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.20 | 188.49 | 24.33 | 114.72 | -10.00 | 359.62 | -35.79 | 97.09 | 0.5827 | 662.8 | 438.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.72 | -14.29 | 2.67 | -32.74 | 105.18 | 0.5452 | 765.0 | 502.3 | |
| 0.00 | 4.42 | 0.00 | 2.62 | -13.93 | 2.22 | -33.19 | 104.40 | 0.5508 | 988.0 | 829.4 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -13.72 | 2.14 | -33.27 | 104.00 | 0.5514 | 763.0 | 677.0 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -13.93 | 1.70 | -33.71 | 104.27 | 0.5580 | 700.0 | 619.5 | |
| 0.00 | 1.39 | 0.00 | 0.82 | -12.58 | 1.77 | -33.64 | 101.87 | 0.5547 | 620.0 | 545.1 | |
| 0.35 | 2.25 | 0.21 | 1.35 | -14.03 | 1.46 | -33.95 | 104.40 | 0.5615 | 915.8 | 697.3 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -13.93 | 1.33 | -34.08 | 104.19 | 0.5631 | 680.0 | 556.1 | |
| 0.00 | 3.20 | 0.00 | 1.91 | -5.39 | 1.23 | -34.18 | 88.91 | 0.5615 | 759.0 | 744.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -10.04 | 0.69 | -34.73 | 97.21 | 0.5676 | 470.0 | 425.6 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -5.66 | 0.85 | -34.56 | 89.45 | 0.5667 | 652.0 | 565.9 | |
| 16.89 | 143.01 | 10.19 | 86.47 | -9.50 | 0.27 | -35.14 | 96.25 | 0.5733 | 1131.4 | 445.3 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -5.02 | 0.68 | -34.73 | 88.35 | 0.5700 | 743.0 | 623.9 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -5.32 | 0.62 | -34.79 | 88.88 | 0.5704 | 535.0 | 428.3 | |
| 21.83 | -11.00 | 13.23 | -11.00 | -10.07 | 359.90 | -35.51 | 97.23 | 0.5787 | 1044.9 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.37 | -8.39 | 359.36 | -36.05 | 94.31 | 0.5861 | 857.0 | 700.5 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -8.24 | 358.55 | -36.86 | 94.08 | 0.5974 | 549.0 | 413.1 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -9.57 | 358.32 | -37.10 | 96.31 | 0.6006 | 828.0 | 557.4 | |
| 0.00 | 2.69 | 0.00 | 1.67 | -9.89 | 357.85 | -37.56 | 96.83 | 0.6071 | 890.0 | 751.0 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -13.00 | 357.32 | -38.09 | 101.89 | 0.6166 | 615.0 | 508.0 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -9.52 | 357.71 | -37.70 | 96.22 | 0.6089 | 815.0 | 689.5 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -14.12 | 356.91 | -38.50 | 103.62 | 0.6235 | 434.0 | 402.2 | |
| 1.13 | 2.95 | 0.70 | 1.84 | -9.31 | 357.66 | -37.75 | 95.87 | 0.6096 | 836.7 | 719.6 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -10.84 | 357.33 | -38.08 | 98.37 | 0.6145 | 671.0 | 612.9 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -10.75 | 356.96 | -38.45 | 98.20 | 0.6195 | 538.0 | 504.8 | |
| 0.00 | 1.30 | 0.00 | 0.82 | -10.05 | 356.79 | -38.62 | 97.06 | 0.6215 | -639.0 | -446.7 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -15.56 | 355.64 | -39.77 | 105.66 | 0.6424 | -788.0 | -707.0 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -8.44 | 356.89 | -38.52 | 94.46 | 0.6202 | 713.0 | 571.9 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -13.41 | 355.94 | -39.47 | 102.35 | 0.6353 | 406.0 | 326.6 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -8.48 | 356.61 | -38.80 | 94.53 | 0.6240 | 482.0 | 452.9 | |
| 0.00 | 1.47 | 0.00 | 0.93 | -8.64 | 356.36 | -39.05 | 94.79 | 0.6273 | 494.0 | 328.1 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -8.03 | 356.32 | -39.09 | 93.83 | 0.6281 | 359.0 | 319.0 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -14.60 | 353.53 | -41.88 | 103.85 | 0.6676 | -691.0 | -636.3 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -7.20 | 352.75 | -42.66 | 92.76 | 0.6755 | -286.0 | -332.3 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -7.55 | 352.25 | -43.16 | 93.30 | 0.6816 | -556.0 | -593.9 | |
| 0.00 | 1.39 | 0.00 | 0.97 | -12.84 | 350.30 | -45.11 | 100.96 | 0.7059 | -718.0 | -611.4 | |
| 0.00 | 1.21 | 0.00 | 0.85 | -13.17 | 349.96 | -45.45 | 101.41 | 0.7102 | -573.0 | -457.0 | |
| 0.00 | 0.87 | 0.00 | 0.63 | -12.54 | 347.61 | -47.80 | 100.40 | 0.7375 | -461.0 | -339.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
