SDO HMI 2014-03-08 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.47 | 0.00 | 9.37 | -16.10 | 45.04 | 9.63 | 225.55 | 0.2262 | 328.5 | 277.5 | |
|
previous
or next observation for the same group /

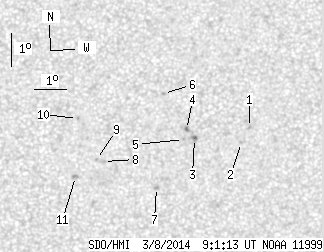

back to the solar disc SDO HMI 2014-03-08 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.44 | 48.06 | 12.65 | 235.40 | 0.2576 | 939.0 | 804.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.90 | 47.83 | 12.42 | 233.44 | 0.2587 | 1031.0 | 804.8 | |
| 0.00 | 3.38 | 0.00 | 1.72 | -15.81 | 46.34 | 10.93 | 230.34 | 0.2381 | 1118.0 | 909.1 | |
| 0.00 | 2.43 | 0.00 | 1.23 | -15.55 | 46.08 | 10.67 | 230.58 | 0.2319 | 1194.0 | 950.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.85 | 46.00 | 10.59 | 229.35 | 0.2340 | 966.0 | 850.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -14.48 | 45.31 | 9.90 | 232.45 | 0.2108 | 930.0 | 724.5 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -17.32 | 45.22 | 9.81 | 222.64 | 0.2413 | 872.0 | 699.8 | |
| 0.00 | 2.17 | 0.00 | 1.10 | -16.56 | 43.52 | 8.11 | 219.65 | 0.2129 | -741.0 | -625.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -16.50 | 43.30 | 7.89 | 219.06 | 0.2097 | -986.0 | -777.0 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.28 | 42.66 | 7.25 | 220.84 | 0.1870 | -776.0 | -664.1 | |
| 0.00 | 2.51 | 0.00 | 1.27 | -17.03 | 42.66 | 7.25 | 215.21 | 0.2102 | -933.0 | -762.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
