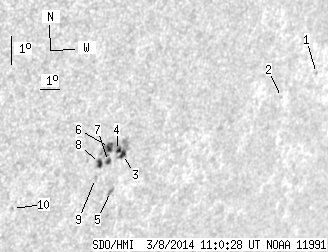

SDO HMI 2014-03-08 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.07 | 47.37 | 10.30 | 37.60 | -26.58 | 84.47 | 50.15 | 241.53 | 0.7829 | -529.7 | -395.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 1.00 | -23.06 | 93.54 | 59.22 | 247.39 | 0.8584 | 576.0 | 489.7 | |
| 0.00 | 0.61 | 0.00 | 0.56 | -23.98 | 92.01 | 57.68 | 246.13 | 0.8465 | 513.0 | 447.4 | |
| 2.86 | 40.01 | 2.27 | 31.54 | -26.52 | 84.69 | 50.37 | 241.70 | 0.7850 | -467.7 | -431.5 | |
| 1.73 | -3.00 | 1.37 | -3.00 | -26.41 | 84.42 | 50.10 | 241.76 | 0.7821 | -790.9 | 999999 | |
| 0.00 | 2.94 | 0.00 | 2.36 | -27.71 | 84.80 | 50.47 | 240.25 | 0.7888 | -749.0 | -597.0 | |
| 4.07 | -3.00 | 3.19 | -3.00 | -26.36 | 83.92 | 49.60 | 241.70 | 0.7773 | -825.7 | 999999 | |
| 1.73 | -3.00 | 1.37 | -3.00 | -26.80 | 84.13 | 49.80 | 241.21 | 0.7803 | -639.0 | 999999 | |
| 2.68 | -3.00 | 2.10 | -3.00 | -26.90 | 83.72 | 49.40 | 240.98 | 0.7767 | -754.1 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.43 | -27.38 | 83.80 | 49.48 | 240.40 | 0.7787 | -609.0 | -449.6 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -28.65 | 80.37 | 46.05 | 237.73 | 0.7495 | -597.0 | -464.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
