groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11996 37.34 170.46 20.80 94.70 14.23 50.50 16.18 323.43 0.4548 -166.6 -36.1


previous   or   next   observation for the same group / back to the solar disc

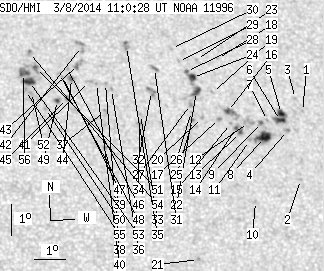

SDO HMI 2014-03-08 11:00:28 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.87 0.00 0.49 14.00 54.88 20.55 316.14 0.4936 -611.0 -540.1
2 0.00 1.04 0.00 0.58 11.84 54.62 20.30 313.23 0.4679 -811.0 -725.7
3 0.00 1.13 0.00 0.64 14.41 54.69 20.36 316.99 0.4961 -703.0 -564.2
4 0.00 2.34 0.00 1.32 13.37 54.33 20.00 316.00 0.4811 -862.0 -643.6
5 3.03 11.95 1.72 6.76 13.91 54.18 19.86 316.99 0.4854 -847.1 -693.5
6 3.29 -5.00 1.86 -5.00 13.68 54.13 19.80 316.74 0.4823 -966.3 999999
7 0.00 1.21 0.00 0.68 13.67 53.70 19.38 317.33 0.4777 -562.0 -443.1
8 9.01 15.42 5.05 8.64 13.12 53.56 19.24 316.74 0.4702 -1077.3 -716.9
9 0.61 1.99 0.34 1.12 13.59 53.50 19.18 317.53 0.4748 -800.1 -698.1
10 0.00 1.39 0.00 0.76 11.08 53.12 18.79 314.23 0.4430 -813.0 -492.4
11 0.00 1.39 0.00 0.77 13.00 53.07 18.74 317.31 0.4637 -842.0 -572.8
12 0.00 8.66 0.00 4.86 13.58 53.08 18.76 318.14 0.4703 -448.0 -460.9
13 0.95 6.41 0.53 3.58 13.25 52.79 18.47 318.09 0.4636 -1094.2 -860.4
14 0.69 -13.00 0.39 -13.00 13.40 52.68 18.35 318.50 0.4642 -1115.1 999999
15 0.00 0.95 0.00 0.53 13.52 52.49 18.17 318.96 0.4637 -807.0 -753.1
16 1.65 8.75 0.92 4.90 13.90 52.43 18.10 319.61 0.4674 -900.0 -727.4
17 0.00 1.82 0.00 1.01 13.67 52.15 17.83 319.71 0.4619 -863.0 -668.9
18 0.00 0.95 0.00 0.54 15.59 52.25 17.93 322.19 0.4856 -678.0 -509.5
19 0.00 1.30 0.00 0.73 14.49 51.99 17.67 321.11 0.4701 -658.0 -522.7
20 0.00 1.47 0.00 0.82 13.68 51.61 17.28 320.60 0.4567 -876.0 -712.3
21 0.00 1.04 0.00 0.56 9.20 51.19 16.87 314.10 0.4006 -935.0 -749.0
22 3.12 16.45 1.74 9.21 14.50 51.48 17.16 321.96 0.4653 -981.8 -619.9
23 0.00 0.69 0.00 0.39 15.53 51.57 17.24 323.19 0.4786 -698.0 -612.4
24 3.38 -22.00 1.89 -22.00 14.95 51.39 17.06 322.70 0.4698 -1009.4 999999
25 0.00 1.47 0.00 0.82 13.57 51.28 16.95 320.98 0.4522 -1004.0 -820.9
26 0.00 0.95 0.00 0.53 13.85 51.27 16.94 321.41 0.4555 -759.0 -543.7
27 0.00 2.51 0.00 1.40 14.08 51.25 16.93 321.74 0.4580 -867.0 -743.3
28 0.61 -22.00 0.34 -22.00 15.13 51.21 16.89 323.24 0.4704 -745.4 999999
29 0.00 1.21 0.00 0.68 15.45 50.98 16.65 324.02 0.4722 -436.0 -425.5
30 0.00 1.04 0.00 0.58 15.86 50.79 16.46 324.86 0.4756 -605.0 -507.8
31 0.00 3.03 0.00 1.69 15.19 50.18 15.86 325.01 0.4619 848.0 718.1
32 0.00 5.37 0.00 2.98 14.45 50.03 15.71 324.31 0.4512 -37.0 152.0
33 0.00 1.04 0.00 0.57 13.70 49.63 15.30 324.00 0.4382 487.0 436.8
34 0.00 2.17 0.00 1.19 13.41 49.58 15.25 323.69 0.4341 1017.0 825.9
35 0.00 4.94 0.00 2.76 15.87 49.34 15.02 327.31 0.4634 1006.0 806.5
36 0.00 1.47 0.00 0.81 14.47 48.76 14.44 326.59 0.4403 -633.0 -526.5
37 0.00 1.30 0.00 0.71 13.79 48.53 14.20 326.14 0.4294 854.0 693.8
38 0.00 1.13 0.00 0.62 14.66 48.58 14.26 327.16 0.4412 -766.0 -544.8
39 0.00 1.39 0.00 0.75 12.61 48.42 14.10 324.71 0.4132 901.0 785.1
40 0.00 1.04 0.00 0.57 14.65 48.30 13.97 327.67 0.4387 697.0 478.2
41 0.00 2.08 0.00 1.14 14.71 48.08 13.75 328.15 0.4376 753.0 527.6
42 0.00 6.06 0.00 3.36 15.83 47.90 13.58 329.82 0.4511 571.0 692.6
43 0.00 5.63 0.00 3.11 15.24 47.76 13.44 329.39 0.4422 838.0 700.5
44 0.87 2.51 0.48 1.38 14.78 47.51 13.19 329.31 0.4341 935.3 741.2
45 0.00 3.03 0.00 1.66 14.14 47.35 13.02 328.84 0.4241 961.0 752.2
46 0.00 1.04 0.00 0.57 15.10 47.41 13.08 329.89 0.4376 722.0 512.4
47 0.00 0.78 0.00 0.43 14.84 47.23 12.91 329.92 0.4326 728.0 516.4
48 0.00 1.39 0.00 0.76 14.93 47.14 12.82 330.20 0.4332 626.0 537.0
49 1.04 2.08 0.57 1.13 14.07 47.03 12.70 329.37 0.4205 1074.5 912.2
50 0.00 1.39 0.00 0.75 13.80 46.64 12.31 329.82 0.4137 908.0 699.4
51 0.78 4.33 0.43 2.37 15.11 46.40 12.07 331.85 0.4299 898.4 759.7
52 0.00 1.21 0.00 0.66 14.30 46.22 11.90 331.26 0.4174 926.0 770.8
53 5.02 17.41 2.74 9.51 14.65 46.18 11.86 331.76 0.4220 1111.9 738.9
54 0.00 2.42 0.00 1.33 15.59 46.24 11.91 332.70 0.4354 781.0 654.3
55 0.00 1.82 0.00 0.99 14.36 46.04 11.72 331.71 0.4169 836.0 677.0
56 3.29 -53.00 1.80 -53.00 14.90 46.01 11.68 332.40 0.4242 943.9 999999


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
