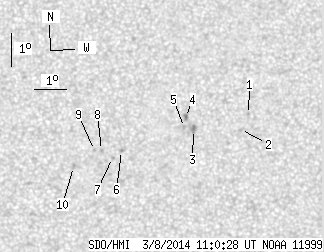

SDO HMI 2014-03-08 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.50 | 0.00 | 8.92 | -16.16 | 45.19 | 10.86 | 228.62 | 0.2422 | 66.6 | 170.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.58 | -15.38 | 48.05 | 13.72 | 237.62 | 0.2721 | 863.0 | 661.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -15.83 | 47.82 | 13.50 | 235.76 | 0.2729 | 888.0 | 639.2 | |
| 0.00 | 3.29 | 0.00 | 1.68 | -15.87 | 46.34 | 12.01 | 232.64 | 0.2530 | 980.0 | 886.1 | |
| 0.00 | 2.68 | 0.00 | 1.37 | -15.52 | 46.06 | 11.74 | 233.22 | 0.2459 | 1114.0 | 914.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -15.82 | 46.05 | 11.72 | 232.18 | 0.2486 | 969.0 | 769.6 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -16.55 | 44.10 | 9.78 | 224.85 | 0.2319 | -693.0 | -608.8 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -16.77 | 43.83 | 9.50 | 223.38 | 0.2312 | -831.0 | -628.1 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -16.56 | 43.47 | 9.15 | 222.96 | 0.2246 | -787.0 | -689.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -16.57 | 43.25 | 8.93 | 222.27 | 0.2222 | -993.0 | -771.9 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -17.06 | 42.61 | 8.29 | 218.72 | 0.2214 | -844.0 | -715.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
