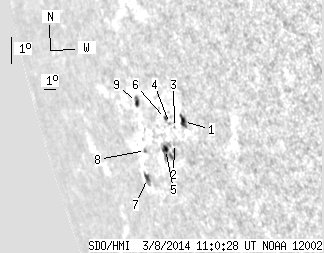

SDO HMI 2014-03-08 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.73 | 38.55 | 18.43 | 55.94 | -18.70 | 322.93 | -71.40 | 107.33 | 0.9416 | 32.3 | -124.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.07 | 6.50 | 5.33 | 8.50 | -18.34 | 325.43 | -68.90 | 106.90 | 0.9272 | 419.4 | 303.3 | |
| 0.00 | 0.87 | 0.00 | 1.20 | -18.87 | 324.11 | -70.21 | 107.49 | 0.9351 | -367.0 | -441.6 | |
| 0.00 | 0.61 | 0.00 | 0.82 | -18.42 | 324.54 | -69.78 | 107.00 | 0.9326 | 39.0 | 50.7 | |
| 0.00 | 1.04 | 0.00 | 1.43 | -18.26 | 324.23 | -70.10 | 106.83 | 0.9345 | 229.0 | 174.1 | |
| 2.94 | 16.11 | 4.24 | 23.00 | -18.95 | 323.17 | -71.15 | 107.58 | 0.9405 | -143.1 | -189.1 | |
| 0.78 | 1.56 | 1.08 | 2.16 | -18.08 | 324.02 | -70.31 | 106.64 | 0.9357 | 26.9 | 30.7 | |
| 2.34 | 5.89 | 3.81 | 9.61 | -19.55 | 320.58 | -73.75 | 108.28 | 0.9541 | -244.6 | -140.9 | |
| 0.00 | 1.73 | 0.00 | 2.73 | -18.76 | 321.30 | -73.03 | 107.42 | 0.9506 | -442.0 | -491.5 | |
| 2.60 | 4.24 | 3.97 | 6.49 | -17.33 | 321.86 | -72.46 | 105.89 | 0.9479 | 136.2 | 105.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
