SDO HMI 2014-03-08 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.10 | 115.86 | 33.47 | 201.93 | -12.83 | 108.32 | 74.55 | 258.71 | 0.9578 | 335.6 | 205.6 | |
|
previous
or next observation for the same group /

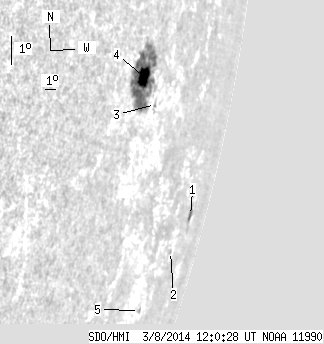

back to the solar disc SDO HMI 2014-03-08 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 5.89 | 7.74 | 21.95 | -15.23 | 117.88 | 84.11 | 255.50 | 0.9919 | -107.6 | 57.6 | |
| 0.00 | 0.95 | 0.00 | 2.83 | -16.61 | 115.86 | 82.08 | 254.29 | 0.9867 | 341.0 | 277.3 | |
| 0.00 | 1.82 | 0.00 | 3.21 | -12.94 | 108.67 | 74.90 | 258.57 | 0.9612 | 191.0 | 171.8 | |
| 16.02 | 105.47 | 25.73 | 169.72 | -12.31 | 106.82 | 73.05 | 259.36 | 0.9523 | 490.4 | 226.1 | |
| 0.00 | 1.73 | 0.00 | 4.22 | -18.71 | 113.79 | 80.02 | 252.31 | 0.9800 | -77.0 | -17.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
