SDO HMI 2014-03-08 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.93 | 68.42 | 8.37 | 36.23 | -10.99 | 13.25 | -20.53 | 101.95 | 0.3533 | 146.4 | 149.6 | |
|
previous
or next observation for the same group /

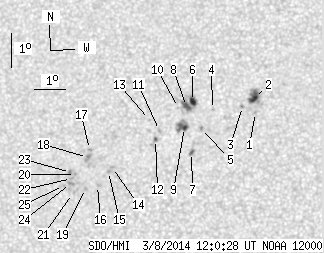

back to the solar disc SDO HMI 2014-03-08 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.59 | -10.59 | 16.02 | -17.76 | 102.14 | 0.3080 | 776.0 | 612.8 | |
| 5.46 | 11.86 | 2.84 | 6.17 | -10.14 | 16.01 | -17.76 | 100.69 | 0.3070 | 1081.5 | 766.3 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -10.40 | 15.62 | -18.16 | 101.32 | 0.3140 | 750.0 | 621.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -10.45 | 14.66 | -19.12 | 101.05 | 0.3297 | 825.0 | 637.2 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -11.00 | 14.26 | -19.51 | 102.51 | 0.3373 | 943.0 | 791.0 | |
| 3.72 | 14.89 | 1.96 | 7.84 | -10.18 | 14.03 | -19.74 | 100.01 | 0.3391 | 1107.9 | 576.6 | |
| 0.69 | 2.51 | 0.37 | 1.32 | -11.70 | 13.89 | -19.88 | 104.35 | 0.3453 | 862.5 | 728.6 | |
| 3.38 | -6.00 | 1.78 | -6.00 | -10.32 | 13.83 | -19.95 | 100.35 | 0.3427 | 968.4 | 999999 | |
| 1.99 | 11.08 | 1.05 | 5.85 | -10.94 | 13.72 | -20.05 | 102.11 | 0.3459 | 986.2 | 749.4 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -10.34 | 13.57 | -20.21 | 100.31 | 0.3469 | 481.0 | 449.1 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -11.00 | 12.91 | -20.87 | 101.91 | 0.3589 | 642.0 | 506.5 | |
| 0.69 | 1.82 | 0.37 | 0.97 | -11.26 | 12.76 | -21.02 | 102.57 | 0.3620 | 809.1 | 681.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -10.66 | 12.61 | -21.17 | 100.85 | 0.3629 | -547.0 | -479.0 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -12.03 | 11.29 | -22.49 | 103.95 | 0.3872 | -883.0 | -678.5 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -12.14 | 11.14 | -22.63 | 104.18 | 0.3897 | -872.0 | -736.9 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -12.54 | 10.74 | -23.03 | 104.99 | 0.3971 | -828.0 | -703.8 | |
| 0.00 | 1.65 | 0.00 | 0.89 | -11.46 | 10.58 | -23.20 | 102.22 | 0.3967 | -818.0 | -669.7 | |
| 0.00 | 3.72 | 0.00 | 2.01 | -11.69 | 10.49 | -23.29 | 102.77 | 0.3986 | -869.0 | -848.9 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -12.61 | 10.34 | -23.44 | 104.98 | 0.4036 | -897.0 | -724.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -12.18 | 10.05 | -23.73 | 103.79 | 0.4068 | -831.0 | -646.8 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -12.74 | 9.89 | -23.88 | 105.08 | 0.4108 | -631.0 | -638.3 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -12.29 | 9.90 | -23.87 | 104.01 | 0.4093 | -864.0 | -664.8 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -12.11 | 9.89 | -23.89 | 103.56 | 0.4091 | -829.0 | -651.0 | |
| 0.00 | 2.60 | 0.00 | 1.41 | -12.44 | 9.85 | -23.92 | 104.34 | 0.4105 | -924.0 | -767.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -12.48 | 9.62 | -24.16 | 104.36 | 0.4143 | -616.0 | -549.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
