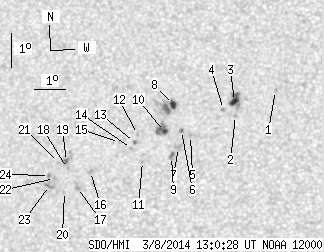

SDO HMI 2014-03-08 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.49 | 88.33 | 5.48 | 46.56 | -10.99 | 13.48 | -19.75 | 102.31 | 0.3409 | 261.3 | 317.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.76 | -9.89 | 17.34 | -15.89 | 100.71 | 0.2757 | 759.0 | 649.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.58 | 16.04 | -17.19 | 102.42 | 0.2988 | 821.0 | 661.1 | |
| 4.07 | 12.21 | 2.11 | 6.33 | -10.17 | 16.03 | -17.19 | 101.03 | 0.2978 | 1079.3 | 820.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -10.39 | 15.67 | -17.56 | 101.59 | 0.3042 | 755.0 | 617.6 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -11.12 | 14.57 | -18.65 | 103.33 | 0.3240 | 874.0 | 708.3 | |
| 0.35 | 1.65 | 0.18 | 0.86 | -10.96 | 14.29 | -18.93 | 102.69 | 0.3280 | 839.5 | 667.7 | |
| 0.00 | 6.23 | 0.00 | 3.27 | -11.47 | 14.16 | -19.06 | 104.13 | 0.3315 | 867.0 | 565.8 | |
| 3.38 | 34.55 | 1.77 | 18.15 | -10.18 | 14.09 | -19.14 | 100.23 | 0.3293 | 1123.3 | 650.2 | |
| 0.00 | 3.46 | 0.00 | 1.82 | -11.72 | 13.92 | -19.31 | 104.75 | 0.3363 | 969.0 | 761.2 | |
| 2.08 | -8.00 | 1.09 | -8.00 | -10.97 | 13.75 | -19.48 | 102.45 | 0.3367 | 933.3 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -11.83 | 12.97 | -20.25 | 104.53 | 0.3515 | 742.0 | 609.0 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -11.02 | 12.87 | -20.35 | 102.20 | 0.3508 | 696.0 | 513.2 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -11.26 | 12.76 | -20.47 | 102.80 | 0.3532 | 749.0 | 688.0 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -11.43 | 12.65 | -20.58 | 103.24 | 0.3555 | 730.0 | 569.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -11.23 | 12.27 | -20.95 | 102.53 | 0.3609 | 504.0 | 381.2 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -12.05 | 11.26 | -21.97 | 104.26 | 0.3791 | -979.0 | -815.6 | |
| 0.00 | 2.68 | 0.00 | 1.44 | -12.51 | 10.79 | -22.44 | 105.21 | 0.3878 | -908.0 | -833.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -11.93 | 10.51 | -22.71 | 103.60 | 0.3904 | -976.0 | -768.0 | |
| 0.61 | 4.59 | 0.33 | 2.47 | -11.72 | 10.50 | -22.73 | 103.06 | 0.3900 | -988.0 | -812.3 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -12.61 | 10.35 | -22.88 | 105.24 | 0.3949 | -589.0 | -595.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -11.74 | 10.23 | -22.99 | 103.00 | 0.3942 | -685.0 | -572.9 | |
| 0.00 | 1.65 | 0.00 | 0.89 | -12.21 | 10.06 | -23.17 | 104.10 | 0.3982 | -802.0 | -683.9 | |
| 0.00 | 4.42 | 0.00 | 2.39 | -12.41 | 9.87 | -23.35 | 104.51 | 0.4016 | -780.0 | -701.2 | |
| 0.00 | 1.65 | 0.00 | 0.89 | -12.11 | 9.90 | -23.33 | 103.79 | 0.4004 | -788.0 | -702.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
