SDO HMI 2014-03-08 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 33.48 | 0.00 | 17.29 | -16.04 | 45.56 | 13.98 | 235.76 | 0.2820 | 255.9 | 243.8 | |
|
previous
or next observation for the same group /

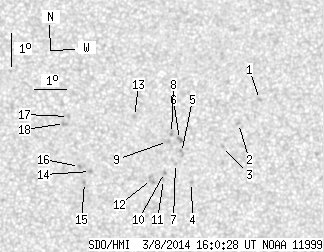

back to the solar disc SDO HMI 2014-03-08 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.43 | 48.87 | 17.29 | 245.57 | 0.3175 | 777.0 | 561.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -15.17 | 48.25 | 16.67 | 242.66 | 0.3131 | 828.0 | 647.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -15.88 | 47.79 | 16.21 | 239.99 | 0.3115 | 701.0 | 444.0 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -17.00 | 46.88 | 15.31 | 235.46 | 0.3079 | -798.0 | -578.5 | |
| 0.00 | 2.77 | 0.00 | 1.44 | -16.10 | 46.49 | 14.91 | 237.39 | 0.2949 | 816.0 | 656.3 | |
| 0.00 | 2.68 | 0.00 | 1.39 | -15.71 | 46.40 | 14.82 | 238.41 | 0.2904 | 1106.0 | 882.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -16.44 | 46.32 | 14.75 | 236.12 | 0.2954 | 792.0 | 585.1 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -15.54 | 46.13 | 14.55 | 238.50 | 0.2852 | 1082.0 | 814.0 | |
| 0.00 | 2.51 | 0.00 | 1.30 | -15.78 | 46.02 | 14.44 | 237.57 | 0.2856 | 722.0 | 631.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -16.72 | 45.99 | 14.42 | 234.74 | 0.2933 | 881.0 | 758.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -16.93 | 45.98 | 14.40 | 234.10 | 0.2950 | 656.0 | 540.6 | |
| 0.00 | 4.59 | 0.00 | 2.37 | -16.94 | 45.59 | 14.02 | 233.38 | 0.2900 | 590.0 | 652.5 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -15.06 | 44.92 | 13.35 | 237.96 | 0.2641 | 831.0 | 671.8 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -16.75 | 43.63 | 12.06 | 229.97 | 0.2624 | -877.0 | -738.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -17.09 | 43.46 | 11.89 | 228.58 | 0.2638 | -860.0 | -773.9 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -16.61 | 43.28 | 11.70 | 229.59 | 0.2563 | -1024.0 | -848.6 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -15.12 | 42.84 | 11.27 | 233.53 | 0.2356 | -767.0 | -621.8 | |
| 0.00 | 3.03 | 0.00 | 1.54 | -15.33 | 42.73 | 11.15 | 232.51 | 0.2362 | -849.0 | -744.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
