SDO HMI 2014-03-08 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.86 | 45.70 | 15.24 | 59.14 | -18.62 | 322.88 | -68.70 | 107.20 | 0.9254 | 113.8 | -61.1 | |
|
previous
or next observation for the same group /

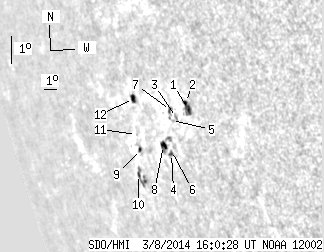

back to the solar disc SDO HMI 2014-03-08 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.51 | 8.83 | 2.92 | 10.28 | -18.08 | 325.80 | -65.78 | 106.62 | 0.9065 | 616.9 | 467.9 | |
| 1.04 | -1.00 | 1.21 | -1.00 | -17.85 | 325.73 | -65.85 | 106.37 | 0.9070 | 561.8 | 999999 | |
| 0.00 | 2.68 | 0.00 | 3.24 | -18.21 | 324.75 | -66.83 | 106.75 | 0.9137 | 418.0 | 322.2 | |
| 0.69 | 1.82 | 0.88 | 2.30 | -19.19 | 323.52 | -68.05 | 107.82 | 0.9218 | -440.1 | -371.2 | |
| 0.00 | 1.90 | 0.00 | 2.34 | -18.25 | 324.31 | -67.27 | 106.80 | 0.9167 | -66.0 | -99.6 | |
| 0.00 | 1.64 | 0.00 | 2.07 | -19.11 | 323.60 | -67.98 | 107.73 | 0.9213 | -453.0 | -486.3 | |
| 0.00 | 2.77 | 0.00 | 3.38 | -17.96 | 324.46 | -67.12 | 106.48 | 0.9157 | 425.0 | 325.3 | |
| 3.12 | 9.35 | 4.00 | 11.93 | -18.89 | 323.10 | -68.48 | 107.50 | 0.9245 | -83.1 | -273.5 | |
| 0.95 | 2.51 | 1.33 | 3.51 | -18.79 | 321.11 | -70.47 | 107.40 | 0.9366 | -303.2 | -323.1 | |
| 0.87 | 9.61 | 1.26 | 13.84 | -19.47 | 320.22 | -71.36 | 108.14 | 0.9416 | -33.0 | -234.3 | |
| 0.00 | 0.61 | 0.00 | 0.85 | -18.32 | 321.17 | -70.41 | 106.90 | 0.9363 | -312.0 | -353.4 | |
| 2.68 | 3.98 | 3.64 | 5.40 | -17.28 | 321.83 | -69.75 | 105.77 | 0.9325 | 267.8 | 102.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
