groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11996 41.39 177.14 23.50 100.52 14.09 50.86 19.84 317.52 0.4889 -182.6 -155.2


previous   or   next   observation for the same group / back to the solar disc

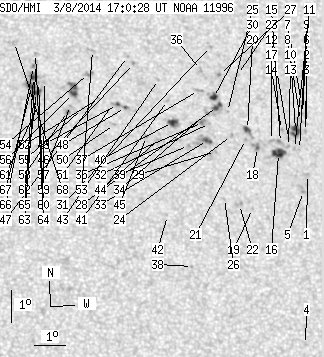

SDO HMI 2014-03-08 17:00:28 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.73 0.00 1.00 12.46 54.82 23.79 309.66 0.5138 -653.0 -486.0
2 0.00 0.52 0.00 0.30 14.08 54.96 23.93 311.91 0.5308 -298.0 -307.5
3 0.00 1.21 0.00 0.71 13.83 54.89 23.87 311.61 0.5276 -571.0 -449.4
4 0.00 0.87 0.00 0.48 7.15 54.34 23.31 301.25 0.4613 -646.0 -479.6
5 0.00 1.56 0.00 0.89 11.91 54.63 23.61 309.04 0.5065 -899.0 -739.9
6 0.00 0.87 0.00 0.51 14.40 54.86 23.83 312.48 0.5327 -522.0 -492.0
7 0.00 1.90 0.00 1.12 14.75 54.87 23.84 312.97 0.5362 -587.0 -496.4
8 0.00 2.68 0.00 1.56 14.17 54.76 23.74 312.26 0.5295 -646.0 -483.8
9 0.00 1.13 0.00 0.65 13.24 54.63 23.60 311.07 0.5190 -645.0 -495.7
10 5.54 8.39 3.22 4.87 13.84 54.56 23.53 312.03 0.5241 -942.7 -762.0
11 0.00 1.38 0.00 0.80 13.26 54.47 23.44 311.30 0.5174 -723.0 -607.5
12 0.00 0.95 0.00 0.55 13.57 54.30 23.27 311.96 0.5186 -766.0 -691.9
13 0.00 1.38 0.00 0.80 13.32 54.27 23.25 311.62 0.5158 -722.0 -643.3
14 0.00 1.21 0.00 0.70 13.85 54.09 23.07 312.61 0.5190 -740.0 -616.5
15 0.00 3.03 0.00 1.75 13.43 54.02 22.99 312.10 0.5141 -873.0 -681.0
16 7.53 11.60 4.33 6.66 13.08 53.91 22.89 311.70 0.5095 -1037.7 -784.6
17 0.00 2.16 0.00 1.25 13.48 53.72 22.70 312.54 0.5113 -783.0 -649.7
18 0.61 4.59 0.35 2.63 13.23 53.23 22.21 312.80 0.5035 -1041.6 -880.8
19 0.00 0.69 0.00 0.39 11.29 52.90 21.87 310.23 0.4804 -730.0 -625.0
20 2.25 6.32 1.29 3.62 13.79 52.96 21.93 313.98 0.5061 -882.7 -659.4
21 0.00 1.04 0.00 0.59 13.47 52.86 21.84 313.63 0.5018 -873.0 -728.3
22 0.00 2.86 0.00 1.61 11.40 52.48 21.45 310.94 0.4766 -784.0 -718.9
23 0.00 1.82 0.00 1.05 15.55 52.82 21.79 316.63 0.5229 -536.0 -425.7
24 0.00 1.64 0.00 0.94 13.58 52.41 21.38 314.38 0.4980 -603.0 -460.9
25 0.00 0.69 0.00 0.40 14.34 52.35 21.33 315.56 0.5054 -592.0 -500.5
26 0.00 0.69 0.00 0.39 11.57 52.00 20.98 311.85 0.4728 -736.0 -562.0
27 0.00 1.30 0.00 0.75 15.52 52.21 21.19 317.39 0.5165 -800.0 -732.5
28 3.12 5.97 1.78 3.42 14.48 52.04 21.01 316.19 0.5036 -967.5 -717.1
29 0.00 1.21 0.00 0.69 13.04 51.84 20.81 314.37 0.4862 -783.0 -641.7
30 2.77 5.54 1.59 3.18 14.77 51.94 20.91 316.73 0.5056 -940.2 -695.5
31 0.00 1.38 0.00 0.80 16.41 52.02 20.99 318.85 0.5243 -687.0 -545.6
32 0.00 0.78 0.00 0.44 13.93 51.72 20.70 315.83 0.4943 -844.0 -718.6
33 1.99 12.98 1.13 7.35 13.38 51.60 20.58 315.20 0.4873 -1029.4 -534.8
34 0.00 2.34 0.00 1.33 14.27 51.69 20.66 316.38 0.4977 -769.0 -584.6
35 0.00 3.63 0.00 2.07 13.95 51.49 20.47 316.18 0.4922 -851.0 -784.3
36 0.00 1.99 0.00 1.15 15.65 51.60 20.57 318.40 0.5118 -631.0 -590.7
37 0.00 3.55 0.00 2.03 14.97 51.46 20.44 317.67 0.5030 -814.0 -539.9
38 0.00 0.95 0.00 0.52 9.39 50.82 19.79 309.85 0.4370 -780.0 -604.6
39 0.00 1.30 0.00 0.73 13.19 50.97 19.94 315.82 0.4785 132.0 46.9
40 3.98 6.75 2.25 3.81 13.90 50.51 19.49 317.53 0.4815 764.4 434.8
41 0.00 1.30 0.00 0.74 14.60 50.41 19.39 318.66 0.4883 503.0 353.3
42 0.00 0.61 0.00 0.33 10.95 50.12 19.09 313.56 0.4450 443.0 363.6
43 0.00 1.13 0.00 0.64 15.27 50.18 19.16 319.91 0.4935 652.0 473.5
44 0.00 2.16 0.00 1.21 13.34 50.01 18.98 317.45 0.4700 783.0 650.0
45 0.00 1.21 0.00 0.68 13.42 49.63 18.60 318.15 0.4670 950.0 760.7
46 0.00 1.04 0.00 0.59 15.75 49.41 18.39 321.70 0.4918 1004.0 838.4
47 0.00 0.87 0.00 0.49 15.97 49.24 18.21 322.24 0.4927 735.0 598.9
48 0.61 2.42 0.34 1.36 14.32 49.02 18.00 320.37 0.4713 -741.0 -621.3
49 0.78 1.56 0.44 0.87 14.41 48.77 17.75 320.88 0.4699 -730.4 -582.0
50 0.00 0.87 0.00 0.48 13.76 48.62 17.60 320.22 0.4608 752.0 597.6
51 0.00 0.95 0.00 0.53 14.40 48.61 17.59 321.13 0.4682 -456.0 -479.2
52 0.00 0.78 0.00 0.44 14.58 48.17 17.15 322.07 0.4662 501.0 430.1
53 0.00 1.82 0.00 1.03 16.12 48.11 17.09 324.18 0.4843 677.0 567.7
54 0.00 3.98 0.00 2.24 15.37 47.92 16.89 323.54 0.4734 799.0 671.2
55 0.00 0.95 0.00 0.53 14.24 47.63 16.61 322.49 0.4569 710.0 528.5
56 2.68 10.73 1.50 5.99 14.71 47.38 16.36 323.55 0.4604 989.8 764.4
57 0.00 1.21 0.00 0.67 14.32 47.26 16.23 323.24 0.4544 802.0 655.5
58 0.35 1.30 0.19 0.72 14.12 47.15 16.12 323.16 0.4510 1056.8 998.5
59 0.00 1.04 0.00 0.58 15.06 46.48 15.46 325.54 0.4567 736.0 629.8
60 0.00 0.69 0.00 0.38 15.02 46.29 15.26 325.83 0.4545 822.0 751.1
61 0.00 1.30 0.00 0.72 14.31 46.23 15.21 325.00 0.4451 871.0 682.8
62 3.55 13.24 1.97 7.34 14.70 46.20 15.17 325.57 0.4496 1120.4 817.6
63 0.00 1.47 0.00 0.82 15.70 46.27 15.25 326.70 0.4631 581.0 435.3
64 0.00 1.21 0.00 0.68 15.95 46.26 15.24 327.03 0.4663 745.0 520.9
65 2.34 6.66 1.30 3.70 15.18 46.14 15.11 326.29 0.4552 889.3 633.5
66 0.00 1.64 0.00 0.92 15.53 46.17 15.14 326.68 0.4600 697.0 516.7
67 3.29 -62.00 1.82 -62.00 14.88 46.05 15.03 326.07 0.4508 1004.1 999999
68 0.00 2.42 0.00 1.35 16.29 45.62 14.59 328.55 0.4653 595.0 586.0


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
