groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11996 44.67 167.38 25.43 95.32 14.01 50.91 20.44 316.57 0.4942 -141.0 -205.3


previous   or   next   observation for the same group / back to the solar disc

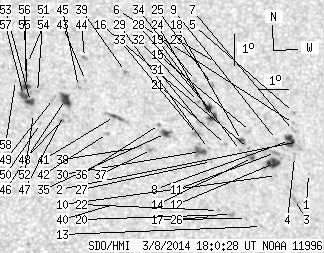

SDO HMI 2014-03-08 18:00:28 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.52 0.00 0.30 12.82 55.14 24.66 309.20 0.5271 -526.0 -386.8
2 0.00 1.13 0.00 0.66 13.82 54.91 24.44 310.94 0.5339 -456.0 -448.5
3 0.00 3.63 0.00 2.09 11.97 54.58 24.11 308.54 0.5129 -823.0 -725.5
4 0.00 2.60 0.00 1.51 13.34 54.72 24.25 310.45 0.5272 -536.0 -500.4
5 0.00 1.13 0.00 0.66 14.75 54.85 24.38 312.33 0.5420 -617.0 -569.7
6 0.00 1.30 0.00 0.76 14.39 54.81 24.34 311.88 0.5382 -632.0 -509.2
7 0.00 2.42 0.00 1.42 14.17 54.78 24.31 311.58 0.5357 -547.0 -445.7
8 6.32 12.12 3.69 7.07 13.84 54.61 24.14 311.31 0.5307 -933.6 -598.2
9 0.00 0.95 0.00 0.55 13.85 54.18 23.70 311.84 0.5260 -754.0 -606.0
10 0.00 0.95 0.00 0.55 12.70 54.05 23.58 310.29 0.5137 -709.0 -583.7
11 0.00 3.38 0.00 1.96 13.43 54.10 23.62 311.33 0.5211 -871.0 -637.0
12 7.44 10.39 4.30 6.00 13.08 53.99 23.52 310.93 0.5166 -1033.0 -772.4
13 0.00 1.21 0.00 0.69 11.06 53.41 22.93 308.51 0.4907 -733.0 -630.8
14 0.95 4.67 0.55 2.69 13.23 53.31 22.84 312.00 0.5104 -1091.0 -855.6
15 0.00 0.35 0.00 0.20 14.06 53.33 22.86 313.19 0.5188 -707.0 -588.2
16 0.00 0.95 0.00 0.55 13.51 53.21 22.73 312.55 0.5120 -757.0 -640.5
17 0.00 1.21 0.00 0.69 11.29 52.93 22.46 309.47 0.4873 -780.0 -592.6
18 1.38 4.15 0.80 2.39 13.76 53.00 22.52 313.17 0.5122 -879.6 -752.4
19 0.00 1.13 0.00 0.65 13.44 52.93 22.46 312.78 0.5083 -855.0 -634.3
20 0.00 2.51 0.00 1.42 11.39 52.45 21.97 310.25 0.4826 -943.0 -843.1
21 0.00 1.30 0.00 0.74 13.60 52.45 21.98 313.64 0.5047 -687.0 -617.7
22 0.00 0.95 0.00 0.54 11.50 52.03 21.56 310.97 0.4788 -789.0 -651.5
23 0.00 0.52 0.00 0.30 16.23 52.41 21.93 317.36 0.5316 -407.0 -522.5
24 3.03 7.53 1.74 4.33 14.45 52.11 21.64 315.31 0.5098 -934.0 -746.1
25 0.00 2.16 0.00 1.25 15.51 52.23 21.75 316.64 0.5222 -792.0 -667.1
26 0.00 0.87 0.00 0.49 11.30 51.82 21.35 310.93 0.4744 -706.0 -612.5
27 0.00 1.04 0.00 0.59 13.04 51.94 21.46 313.48 0.4933 -806.0 -663.8
28 2.60 5.28 1.50 3.04 14.76 52.01 21.54 315.89 0.5120 -988.9 -713.1
29 0.00 1.13 0.00 0.64 13.45 51.88 21.40 314.17 0.4969 -529.0 -591.0
30 3.38 9.87 1.92 5.61 13.34 51.61 21.13 314.38 0.4928 -1005.7 -778.3
31 0.00 3.89 0.00 2.23 14.27 51.70 21.22 315.61 0.5035 -658.0 -511.7
32 0.00 1.47 0.00 0.85 14.94 51.70 21.22 316.55 0.5107 -835.0 -572.8
33 0.00 4.24 0.00 2.42 13.88 51.56 21.08 315.24 0.4980 -811.0 -785.0
34 0.00 1.21 0.00 0.70 15.61 51.67 21.20 317.51 0.5177 -779.0 -640.9
35 2.60 6.14 1.47 3.48 13.86 50.51 20.03 316.68 0.4868 858.7 499.5
36 0.00 1.30 0.00 0.74 14.14 50.34 19.86 317.32 0.4881 683.0 550.3
37 0.00 1.90 0.00 1.07 13.33 50.01 19.53 316.63 0.4757 824.0 691.2
38 0.00 1.90 0.00 1.07 13.38 49.62 19.15 317.27 0.4722 598.0 535.9
39 0.00 1.47 0.00 0.84 15.80 49.39 18.91 320.98 0.4974 981.0 792.2
40 0.00 1.21 0.00 0.67 11.57 48.74 18.27 315.85 0.4427 658.0 511.9
41 1.04 7.96 0.58 4.48 14.34 48.89 18.42 319.74 0.4757 -624.3 -563.2
42 0.00 1.64 0.00 0.92 13.78 48.62 18.15 319.38 0.4666 806.0 656.6
43 0.00 1.13 0.00 0.63 15.46 48.05 17.58 322.56 0.4808 684.0 561.3
44 0.00 1.99 0.00 1.13 16.20 48.09 17.61 323.46 0.4901 817.0 617.3
45 0.00 1.30 0.00 0.73 15.26 47.81 17.33 322.68 0.4761 820.0 660.6
46 6.84 10.82 3.82 6.05 14.82 47.35 16.88 322.84 0.4666 930.1 688.5
47 0.00 0.95 0.00 0.53 14.30 47.25 16.77 322.32 0.4594 811.0 683.4
48 0.00 1.90 0.00 1.06 14.14 47.17 16.70 322.22 0.4567 1091.0 897.6
49 0.00 2.16 0.00 1.21 14.84 46.97 16.49 323.50 0.4633 747.0 712.1
50 0.00 1.04 0.00 0.58 14.02 46.49 16.02 323.21 0.4488 825.0 647.7
51 0.00 0.61 0.00 0.34 15.01 46.47 16.00 324.56 0.4610 713.0 579.0
52 0.00 0.43 0.00 0.24 14.33 46.29 15.82 323.97 0.4508 626.0 675.8
53 3.29 20.42 1.83 11.36 14.72 46.22 15.75 324.60 0.4550 1081.1 747.4
54 0.00 0.87 0.00 0.49 15.94 46.22 15.75 326.15 0.4704 582.0 389.8
55 2.60 -53.00 1.45 -53.00 15.19 46.13 15.66 325.37 0.4602 921.4 999999
56 0.00 1.21 0.00 0.68 15.55 46.16 15.68 325.77 0.4650 753.0 554.1
57 3.20 -53.00 1.78 -53.00 14.90 46.01 15.54 325.20 0.4555 1049.8 999999
58 0.00 0.87 0.00 0.48 15.38 45.79 15.32 326.18 0.4596 689.0 586.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
