SDO HMI 2014-03-08 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.34 | 226.36 | 21.77 | 130.28 | -10.52 | 358.73 | -30.64 | 98.37 | 0.5085 | 416.4 | 330.2 | |
|
previous
or next observation for the same group /

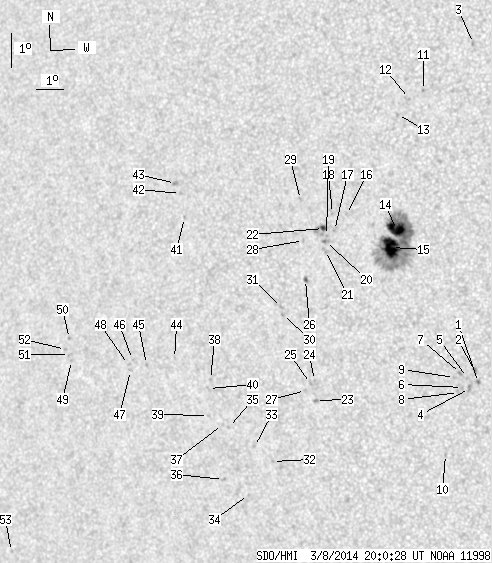

back to the solar disc SDO HMI 2014-03-08 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.82 | -14.25 | 2.50 | -26.87 | 107.13 | 0.4603 | 1005.0 | 842.6 | |
| 0.00 | 2.51 | 0.00 | 1.40 | -13.88 | 2.41 | -26.96 | 106.31 | 0.4605 | 1025.0 | 830.3 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -4.16 | 3.17 | -26.21 | 84.68 | 0.4442 | 666.0 | 498.3 | |
| 0.00 | 3.38 | 0.00 | 1.89 | -14.41 | 2.17 | -27.20 | 107.33 | 0.4657 | 807.0 | 661.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -14.07 | 2.14 | -27.23 | 106.62 | 0.4651 | 680.0 | 646.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -14.36 | 1.93 | -27.44 | 107.14 | 0.4691 | 745.0 | 673.2 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -13.94 | 1.92 | -27.45 | 106.24 | 0.4680 | 813.0 | 679.6 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -14.50 | 1.77 | -27.60 | 107.36 | 0.4718 | 347.0 | 435.5 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -14.05 | 1.70 | -27.67 | 106.38 | 0.4715 | 927.0 | 693.9 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -16.33 | 1.05 | -28.32 | 110.74 | 0.4888 | 631.0 | 466.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -5.46 | 1.43 | -27.94 | 87.96 | 0.4687 | 849.0 | 704.5 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -5.67 | 0.94 | -28.43 | 88.49 | 0.4759 | 751.0 | 626.4 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -6.12 | 0.51 | -28.86 | 89.50 | 0.4820 | 742.0 | 583.4 | |
| 14.63 | 149.38 | 8.28 | 84.62 | -9.53 | 0.21 | -29.16 | 96.59 | 0.4858 | 1196.5 | 466.9 | |
| 21.29 | -14.00 | 12.08 | -14.00 | -10.05 | 359.98 | -29.39 | 97.65 | 0.4895 | 1162.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -8.97 | 358.52 | -30.85 | 95.38 | 0.5109 | 768.0 | 646.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -9.42 | 358.05 | -31.32 | 96.23 | 0.5180 | 775.0 | 691.7 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -8.91 | 358.03 | -31.34 | 95.25 | 0.5181 | 505.0 | 433.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -9.55 | 357.75 | -31.62 | 96.47 | 0.5224 | 668.0 | 602.7 | |
| 0.00 | 2.60 | 0.00 | 1.51 | -9.72 | 357.70 | -31.67 | 96.80 | 0.5233 | 794.0 | 677.7 | |
| 0.00 | 3.03 | 0.00 | 1.76 | -9.99 | 357.67 | -31.70 | 97.31 | 0.5239 | 757.0 | 585.5 | |
| 1.73 | 8.48 | 1.00 | 4.93 | -9.33 | 357.67 | -31.70 | 96.05 | 0.5235 | 814.2 | 210.7 | |
| 0.00 | 1.56 | 0.00 | 0.92 | -14.43 | 356.70 | -32.67 | 105.43 | 0.5445 | 746.0 | 668.1 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -13.83 | 356.76 | -32.61 | 104.35 | 0.5423 | 744.0 | 630.4 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -13.91 | 356.60 | -32.77 | 104.46 | 0.5448 | 707.0 | 534.0 | |
| 0.69 | 2.16 | 0.41 | 1.27 | -10.80 | 356.86 | -32.51 | 98.77 | 0.5363 | 713.9 | 539.3 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -14.10 | 356.38 | -32.99 | 104.76 | 0.5482 | 555.0 | 480.2 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -9.64 | 356.92 | -32.45 | 96.60 | 0.5346 | -603.0 | -503.8 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -8.42 | 356.94 | -32.43 | 94.30 | 0.5341 | 787.0 | 564.9 | |
| 0.00 | 1.30 | 0.00 | 0.77 | -11.79 | 355.90 | -33.47 | 100.45 | 0.5512 | 727.0 | 642.3 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -11.58 | 355.89 | -33.48 | 100.07 | 0.5511 | 665.0 | 500.8 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -16.14 | 354.79 | -34.59 | 107.89 | 0.5752 | -732.0 | -588.9 | |
| 0.00 | 1.13 | 0.00 | 0.68 | -15.64 | 354.20 | -35.17 | 106.87 | 0.5818 | -520.0 | -424.8 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -17.06 | 353.68 | -35.69 | 109.10 | 0.5925 | -661.0 | -501.8 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -15.01 | 353.34 | -36.03 | 105.57 | 0.5920 | -682.0 | -544.9 | |
| 0.00 | 1.82 | 0.00 | 1.13 | -16.54 | 352.83 | -36.54 | 107.99 | 0.6024 | -815.0 | -619.5 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -14.90 | 353.13 | -36.24 | 105.34 | 0.5946 | -630.0 | -520.3 | |
| 0.00 | 1.21 | 0.00 | 0.75 | -13.53 | 352.93 | -36.44 | 103.00 | 0.5949 | -775.0 | -610.7 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -14.59 | 352.66 | -36.71 | 104.73 | 0.6004 | -570.0 | -479.5 | |
| 0.00 | 1.90 | 0.00 | 1.17 | -13.79 | 352.81 | -36.56 | 103.42 | 0.5970 | -595.0 | -520.9 | |
| 0.00 | 1.21 | 0.00 | 0.75 | -8.65 | 352.67 | -36.70 | 94.76 | 0.5951 | -612.0 | -491.0 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -7.93 | 352.60 | -36.77 | 93.54 | 0.5963 | -757.0 | -636.8 | |
| 0.00 | 2.34 | 0.00 | 1.44 | -7.62 | 352.44 | -36.93 | 93.03 | 0.5986 | -878.0 | -752.4 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -12.80 | 351.68 | -37.69 | 101.61 | 0.6109 | -609.0 | -480.1 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -12.90 | 350.57 | -38.80 | 101.62 | 0.6258 | -729.0 | -589.6 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -12.70 | 350.06 | -39.31 | 101.25 | 0.6325 | -769.0 | -612.1 | |
| 0.00 | 1.47 | 0.00 | 0.94 | -13.02 | 349.92 | -39.45 | 101.74 | 0.6346 | -577.0 | -485.8 | |
| 0.00 | 1.38 | 0.00 | 0.89 | -12.84 | 349.87 | -39.50 | 101.44 | 0.6350 | -593.0 | -508.3 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -12.54 | 347.64 | -41.74 | 100.76 | 0.6638 | -575.0 | -487.3 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -11.88 | 347.68 | -41.69 | 99.76 | 0.6627 | -718.0 | -652.1 | |
| 0.00 | 1.82 | 0.00 | 1.20 | -12.35 | 347.59 | -41.78 | 100.47 | 0.6642 | -557.0 | -468.2 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -12.19 | 347.46 | -41.91 | 100.22 | 0.6658 | -573.0 | -464.0 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -17.99 | 343.62 | -45.75 | 108.10 | 0.7191 | -541.0 | -397.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
