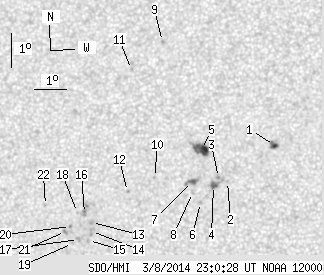

SDO HMI 2014-03-08 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.88 | 60.00 | 7.57 | 30.77 | -11.02 | 13.25 | -14.47 | 105.75 | 0.2564 | 186.0 | 180.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-08 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.90 | 5.45 | 0.96 | 2.76 | -10.11 | 16.51 | -11.20 | 105.28 | 0.1992 | 1153.9 | 833.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -11.15 | 15.02 | -12.70 | 108.20 | 0.2281 | 803.0 | 627.9 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -11.02 | 14.74 | -12.98 | 107.34 | 0.2320 | 1126.0 | 924.2 | |
| 1.73 | 6.93 | 0.88 | 3.53 | -11.25 | 14.58 | -13.14 | 108.12 | 0.2357 | 1047.4 | 841.2 | |
| 9.52 | 15.24 | 4.85 | 7.77 | -10.17 | 14.25 | -13.47 | 103.32 | 0.2366 | 1097.4 | 783.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -11.75 | 14.14 | -13.57 | 109.60 | 0.2450 | 930.0 | 609.2 | |
| 1.73 | 6.06 | 0.88 | 3.10 | -11.11 | 13.93 | -13.79 | 106.86 | 0.2455 | 960.7 | 759.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -11.44 | 13.91 | -13.81 | 108.13 | 0.2473 | 561.0 | 459.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -6.92 | 13.17 | -14.55 | 89.58 | 0.2505 | 835.0 | 664.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -10.96 | 12.75 | -14.97 | 105.17 | 0.2640 | -818.0 | -660.0 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -7.72 | 12.18 | -15.54 | 92.74 | 0.2670 | 796.0 | 561.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.35 | 11.87 | -15.84 | 105.86 | 0.2795 | 583.0 | 442.1 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -12.23 | 10.68 | -17.04 | 107.83 | 0.3022 | -996.0 | -841.4 | |
| 0.00 | 3.55 | 0.00 | 1.84 | -12.50 | 10.66 | -17.06 | 108.67 | 0.3037 | -829.0 | -793.4 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -12.76 | 10.55 | -17.17 | 109.41 | 0.3067 | -862.0 | -726.1 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -11.95 | 10.47 | -17.24 | 106.78 | 0.3043 | -1031.0 | -856.8 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -12.72 | 10.23 | -17.49 | 109.00 | 0.3114 | -910.0 | -730.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -11.91 | 10.25 | -17.46 | 106.49 | 0.3076 | -677.0 | -535.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.83 | 10.03 | -17.69 | 109.17 | 0.3151 | -535.0 | -462.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.32 | 10.00 | -17.72 | 107.58 | 0.3132 | -820.0 | -746.9 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -12.47 | 9.83 | -17.89 | 107.88 | 0.3165 | -837.0 | -696.5 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -11.66 | 9.25 | -18.47 | 105.02 | 0.3227 | -760.0 | -586.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
