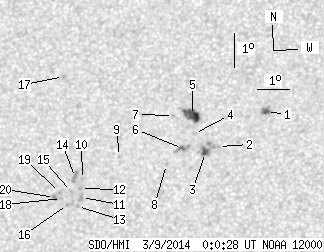

SDO HMI 2014-03-09 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.19 | 67.44 | 8.23 | 34.52 | -11.12 | 13.25 | -13.92 | 106.69 | 0.2476 | 180.6 | 143.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 5.71 | 1.05 | 2.88 | -10.10 | 16.58 | -10.59 | 105.97 | 0.1891 | 1229.8 | 827.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -11.11 | 15.06 | -12.11 | 108.76 | 0.2184 | 860.0 | 601.4 | |
| 2.51 | 12.64 | 1.28 | 6.42 | -11.28 | 14.64 | -12.52 | 108.96 | 0.2259 | 1079.4 | 820.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -10.70 | 14.33 | -12.84 | 106.14 | 0.2283 | 797.0 | 552.2 | |
| 11.60 | 16.02 | 5.90 | 8.15 | -10.16 | 14.29 | -12.88 | 103.79 | 0.2269 | 1056.3 | 715.5 | |
| 0.00 | 6.32 | 0.00 | 3.22 | -11.14 | 13.94 | -13.23 | 107.53 | 0.2366 | 1006.0 | 807.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.14 | 13.70 | -13.47 | 103.21 | 0.2366 | 688.0 | 507.9 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -11.60 | 13.41 | -13.75 | 108.79 | 0.2471 | -621.0 | -388.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -11.31 | 11.95 | -15.21 | 106.26 | 0.2693 | 635.0 | 526.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -11.96 | 10.75 | -16.42 | 107.46 | 0.2912 | -817.0 | -684.8 | |
| 0.00 | 4.07 | 0.00 | 2.11 | -12.49 | 10.68 | -16.49 | 109.17 | 0.2947 | -882.0 | -782.4 | |
| 0.00 | 1.39 | 0.00 | 0.72 | -12.22 | 10.67 | -16.50 | 108.27 | 0.2937 | -929.0 | -815.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -12.76 | 10.54 | -16.63 | 109.89 | 0.2982 | -819.0 | -737.3 | |
| 0.00 | 4.76 | 0.00 | 2.47 | -11.89 | 10.53 | -16.64 | 107.05 | 0.2944 | -1180.0 | -885.9 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -12.30 | 10.38 | -16.79 | 108.27 | 0.2986 | -682.0 | -635.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -12.68 | 10.22 | -16.95 | 109.37 | 0.3028 | -895.0 | -755.5 | |
| 0.00 | 1.56 | 0.00 | 0.81 | -8.87 | 10.32 | -16.85 | 96.67 | 0.2896 | 884.0 | 687.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -12.50 | 10.04 | -17.12 | 108.62 | 0.3047 | -835.0 | -622.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.32 | 9.99 | -17.18 | 108.00 | 0.3047 | -744.0 | -648.3 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -12.46 | 9.82 | -17.35 | 108.31 | 0.3080 | -814.0 | -684.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
