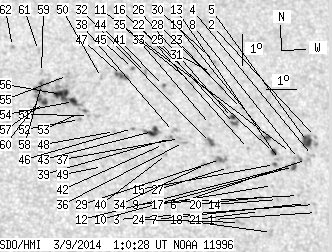

SDO HMI 2014-03-09 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.87 | 193.24 | 27.41 | 112.86 | 14.17 | 50.34 | 23.72 | 312.56 | 0.5309 | -108.6 | -16.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.62 | 11.67 | 55.01 | 28.39 | 303.61 | 0.5613 | -575.0 | -404.9 | |
| 0.00 | 1.21 | 0.00 | 0.74 | 14.09 | 55.28 | 28.67 | 306.88 | 0.5838 | -372.0 | -320.3 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 11.92 | 54.97 | 28.35 | 304.02 | 0.5628 | -612.0 | -511.5 | |
| 0.00 | 1.56 | 0.00 | 0.94 | 13.48 | 55.09 | 28.48 | 306.18 | 0.5767 | -516.0 | -421.5 | |
| 7.19 | 12.90 | 4.36 | 7.83 | 13.91 | 54.98 | 28.36 | 306.92 | 0.5789 | -769.3 | -489.7 | |
| 0.00 | 2.68 | 0.00 | 1.62 | 13.34 | 54.87 | 28.25 | 306.20 | 0.5729 | -437.0 | -490.0 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 11.93 | 54.66 | 28.04 | 304.34 | 0.5592 | -787.0 | -640.1 | |
| 0.00 | 3.38 | 0.00 | 2.03 | 13.35 | 54.59 | 27.97 | 306.49 | 0.5699 | -715.0 | -682.9 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 12.17 | 54.45 | 27.83 | 304.90 | 0.5586 | -699.0 | -592.5 | |
| 2.17 | 4.07 | 1.30 | 2.44 | 13.08 | 54.38 | 27.77 | 306.31 | 0.5653 | -854.2 | -720.1 | |
| 0.00 | 0.26 | 0.00 | 0.16 | 13.53 | 54.34 | 27.72 | 306.99 | 0.5684 | -383.0 | -280.3 | |
| 0.43 | 1.47 | 0.26 | 0.88 | 13.04 | 54.14 | 27.52 | 306.49 | 0.5620 | -857.0 | -753.1 | |
| 0.00 | 2.68 | 0.00 | 1.60 | 13.28 | 53.93 | 27.31 | 307.05 | 0.5616 | -675.0 | -648.6 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 12.00 | 53.71 | 27.09 | 305.38 | 0.5484 | -732.0 | -670.4 | |
| 0.78 | 1.73 | 0.46 | 1.03 | 13.11 | 53.73 | 27.11 | 307.00 | 0.5580 | -908.8 | -801.4 | |
| 2.34 | 3.81 | 1.40 | 2.28 | 13.49 | 53.75 | 27.13 | 307.54 | 0.5614 | -704.1 | -436.6 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 12.44 | 53.58 | 26.97 | 306.15 | 0.5506 | -694.0 | -603.2 | |
| 0.00 | 2.60 | 0.00 | 1.52 | 10.95 | 53.39 | 26.77 | 304.07 | 0.5360 | -662.0 | -513.9 | |
| 1.65 | 4.33 | 0.98 | 2.59 | 13.96 | 53.60 | 26.98 | 308.36 | 0.5637 | -717.4 | -607.8 | |
| 0.00 | 1.39 | 0.00 | 0.82 | 12.03 | 53.16 | 26.55 | 305.98 | 0.5423 | -792.0 | -609.4 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 11.59 | 53.05 | 26.43 | 305.41 | 0.5372 | -609.0 | -550.6 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 13.57 | 52.90 | 26.28 | 308.54 | 0.5524 | -732.0 | -560.8 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 14.84 | 52.82 | 26.20 | 310.43 | 0.5629 | 416.0 | 272.1 | |
| 0.00 | 3.29 | 0.00 | 1.91 | 11.20 | 52.33 | 25.72 | 305.57 | 0.5253 | -808.0 | -647.7 | |
| 1.56 | 8.49 | 0.93 | 5.05 | 14.34 | 52.51 | 25.90 | 310.06 | 0.5550 | -861.4 | -612.2 | |
| 1.65 | -25.00 | 0.98 | -25.00 | 14.53 | 52.47 | 25.85 | 310.37 | 0.5562 | -717.9 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 12.92 | 52.14 | 25.52 | 308.41 | 0.5380 | -616.0 | -454.3 | |
| 0.00 | 1.73 | 0.00 | 1.04 | 15.48 | 52.22 | 25.60 | 311.97 | 0.5622 | -694.0 | -595.2 | |
| 0.00 | 7.01 | 0.00 | 4.11 | 13.16 | 51.90 | 25.28 | 309.03 | 0.5374 | -901.0 | -762.9 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 16.31 | 52.09 | 25.47 | 313.23 | 0.5687 | -718.0 | -565.2 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 15.95 | 51.94 | 25.32 | 312.91 | 0.5637 | -555.0 | -463.4 | |
| 2.25 | 5.98 | 1.32 | 3.51 | 13.69 | 51.62 | 25.00 | 310.11 | 0.5391 | -806.7 | -608.3 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 14.26 | 51.69 | 25.07 | 310.87 | 0.5452 | -542.0 | -456.8 | |
| 0.00 | 2.25 | 0.00 | 1.31 | 12.97 | 51.37 | 24.75 | 309.35 | 0.5297 | -656.0 | -589.8 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 15.58 | 51.21 | 24.59 | 313.26 | 0.5525 | -562.0 | -468.3 | |
| 0.00 | 2.68 | 0.00 | 1.56 | 13.64 | 50.70 | 24.09 | 311.10 | 0.5284 | 537.0 | 395.8 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 13.76 | 50.58 | 23.96 | 311.42 | 0.5282 | 172.0 | 243.3 | |
| 0.00 | 2.34 | 0.00 | 1.36 | 13.97 | 50.41 | 23.79 | 311.94 | 0.5283 | 620.0 | 552.5 | |
| 0.00 | 2.77 | 0.00 | 1.61 | 13.74 | 50.28 | 23.66 | 311.76 | 0.5247 | 779.0 | 723.1 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 13.22 | 50.09 | 23.47 | 311.22 | 0.5176 | 649.0 | 555.8 | |
| 0.52 | 1.39 | 0.31 | 0.81 | 15.44 | 50.24 | 23.62 | 314.20 | 0.5409 | 713.3 | 568.5 | |
| 0.00 | 1.47 | 0.00 | 0.85 | 13.54 | 50.02 | 23.41 | 311.77 | 0.5199 | 615.0 | 496.8 | |
| 5.63 | 10.57 | 3.26 | 6.12 | 13.93 | 49.70 | 23.08 | 312.74 | 0.5202 | -709.4 | -385.7 | |
| 0.00 | 1.91 | 0.00 | 1.12 | 15.83 | 49.68 | 23.06 | 315.41 | 0.5390 | 820.0 | 667.8 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 15.93 | 49.26 | 22.64 | 316.08 | 0.5358 | 706.0 | 611.6 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 14.00 | 49.04 | 22.42 | 313.66 | 0.5137 | -497.0 | -421.9 | |
| 3.38 | 7.45 | 1.97 | 4.34 | 15.69 | 48.86 | 22.24 | 316.26 | 0.5292 | 839.4 | 642.3 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 13.87 | 48.43 | 21.81 | 314.27 | 0.5058 | 709.0 | 534.0 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 12.74 | 47.93 | 21.31 | 313.25 | 0.4887 | 423.0 | 370.3 | |
| 0.00 | 1.65 | 0.00 | 0.95 | 15.59 | 48.18 | 21.56 | 317.01 | 0.5213 | 545.0 | 339.0 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 14.34 | 47.62 | 21.00 | 316.03 | 0.5022 | 539.0 | 398.1 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 14.20 | 47.31 | 20.69 | 316.26 | 0.4974 | 855.0 | 744.6 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 14.39 | 47.30 | 20.68 | 316.55 | 0.4994 | 685.0 | 575.1 | |
| 3.64 | 34.38 | 2.08 | 19.65 | 14.77 | 47.17 | 20.55 | 317.25 | 0.5022 | 714.8 | 530.5 | |
| 0.00 | 3.46 | 0.00 | 1.99 | 15.60 | 47.06 | 20.44 | 318.55 | 0.5101 | -289.0 | -332.6 | |
| 9.61 | -54.00 | 5.49 | -54.00 | 14.98 | 46.80 | 20.18 | 318.06 | 0.5006 | 849.3 | 999999 | |
| 2.17 | 20.70 | 1.23 | 11.78 | 14.70 | 46.21 | 19.59 | 318.51 | 0.4916 | 1025.1 | 757.2 | |
| 0.95 | -57.00 | 0.54 | -57.00 | 15.27 | 46.17 | 19.55 | 319.36 | 0.4977 | 745.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 15.66 | 46.21 | 19.59 | 319.82 | 0.5025 | 693.0 | 490.0 | |
| 0.95 | -57.00 | 0.54 | -57.00 | 14.79 | 46.06 | 19.44 | 318.86 | 0.4911 | 1092.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 16.37 | 46.18 | 19.57 | 320.79 | 0.5103 | 585.0 | 519.4 | |
| 0.00 | 1.56 | 0.00 | 0.89 | 16.47 | 45.34 | 18.72 | 322.14 | 0.5035 | 740.0 | 623.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
