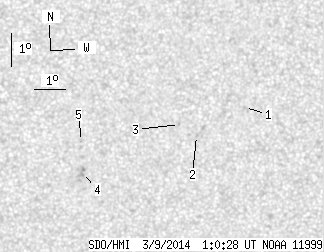

SDO HMI 2014-03-09 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.97 | 0.00 | 4.20 | -16.49 | 44.87 | 18.25 | 240.69 | 0.3458 | 175.6 | -216.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.56 | -15.02 | 48.50 | 21.89 | 248.22 | 0.3894 | 828.0 | 688.2 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -15.93 | 47.01 | 20.39 | 244.70 | 0.3722 | 547.0 | 587.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -15.62 | 46.42 | 19.80 | 244.92 | 0.3618 | 859.0 | 756.6 | |
| 0.00 | 4.24 | 0.00 | 2.22 | -17.18 | 43.40 | 16.78 | 237.23 | 0.3295 | -690.0 | -758.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -16.25 | 43.28 | 16.66 | 239.62 | 0.3206 | -666.0 | -477.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
