SDO HMI 2014-03-09 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.64 | 65.41 | 7.42 | 33.35 | -11.11 | 13.32 | -13.30 | 107.31 | 0.2376 | 120.3 | 151.1 | |
|
previous
or next observation for the same group /

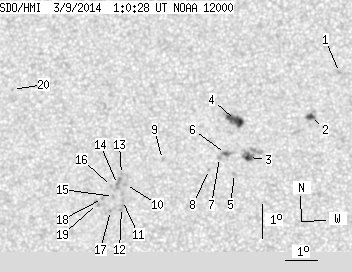

back to the solar disc SDO HMI 2014-03-09 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 0.96 | -8.80 | 17.53 | -9.08 | 100.34 | 0.1593 | 907.0 | 755.0 | |
| 2.17 | 5.37 | 1.09 | 2.70 | -10.09 | 16.61 | -10.01 | 106.69 | 0.1795 | 1126.4 | 733.2 | |
| 2.68 | 15.07 | 1.36 | 7.64 | -11.26 | 14.65 | -11.97 | 109.64 | 0.2169 | 1046.6 | 809.6 | |
| 8.92 | 13.86 | 4.53 | 7.03 | -10.15 | 14.30 | -12.32 | 104.24 | 0.2177 | 1109.6 | 794.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -11.73 | 14.20 | -12.42 | 111.00 | 0.2266 | 834.0 | 594.2 | |
| 0.87 | 4.07 | 0.44 | 2.07 | -11.12 | 13.95 | -12.67 | 108.12 | 0.2275 | 976.5 | 745.8 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -11.24 | 13.75 | -12.86 | 108.37 | 0.2312 | 672.0 | 614.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -11.59 | 13.42 | -13.19 | 109.40 | 0.2381 | -530.0 | -462.1 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -11.24 | 11.97 | -14.65 | 106.52 | 0.2598 | 699.0 | 528.6 | |
| 0.00 | 1.65 | 0.00 | 0.85 | -11.95 | 10.77 | -15.85 | 107.93 | 0.2821 | -642.0 | -575.2 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -12.42 | 10.64 | -15.98 | 109.43 | 0.2863 | -947.0 | -817.2 | |
| 0.00 | 2.60 | 0.00 | 1.34 | -12.63 | 10.60 | -16.02 | 110.08 | 0.2880 | -621.0 | -715.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -11.65 | 10.66 | -15.96 | 106.80 | 0.2826 | -756.0 | -600.0 | |
| 0.00 | 5.89 | 0.00 | 3.04 | -11.94 | 10.51 | -16.10 | 107.68 | 0.2861 | -1125.0 | -839.5 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -12.29 | 10.36 | -16.25 | 108.73 | 0.2901 | -746.0 | -660.8 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -11.99 | 10.32 | -16.30 | 107.68 | 0.2894 | -695.0 | -581.0 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.71 | 10.24 | -16.38 | 109.98 | 0.2940 | -881.0 | -787.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.34 | 10.01 | -16.61 | 108.56 | 0.2958 | -863.0 | -720.2 | |
| 0.00 | 2.68 | 0.00 | 1.39 | -12.48 | 9.84 | -16.77 | 108.88 | 0.2991 | -719.0 | -644.3 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -8.98 | 7.35 | -19.26 | 96.49 | 0.3294 | -732.0 | -596.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
