groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11996 50.16 215.78 29.42 126.77 14.31 50.44 24.37 311.97 0.5392 -148.9 -24.3


previous   or   next   observation for the same group / back to the solar disc

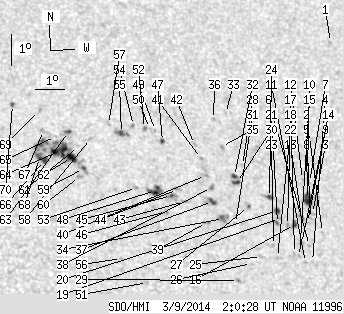

SDO HMI 2014-03-09 02:00:28 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.47 0.00 0.95 19.12 56.71 30.64 311.60 0.6464 -97.0 -90.3
2 0.00 0.78 0.00 0.47 12.90 55.38 29.31 304.57 0.5817 -542.0 -416.2
3 0.00 1.91 0.00 1.16 13.48 55.11 29.04 305.66 0.5832 -577.0 -469.2
4 0.00 0.61 0.00 0.36 11.96 54.91 28.84 303.61 0.5689 -647.0 -507.6
5 0.00 0.87 0.00 0.53 13.32 55.02 28.95 305.51 0.5808 -615.0 -546.8
6 0.00 1.13 0.00 0.68 12.46 54.87 28.80 304.40 0.5723 -674.0 -573.2
7 0.00 0.69 0.00 0.42 14.47 55.14 29.07 307.02 0.5915 -481.0 -365.5
8 7.02 15.33 4.28 9.36 13.92 54.99 28.92 306.39 0.5854 -770.4 -426.3
9 0.00 1.39 0.00 0.84 13.19 54.89 28.82 305.43 0.5783 -703.0 -506.4
10 0.00 0.61 0.00 0.37 14.86 55.13 29.06 307.56 0.5945 -372.0 -335.7
11 0.00 1.21 0.00 0.73 11.91 54.66 28.59 303.77 0.5656 -826.0 -644.3
12 0.00 0.87 0.00 0.53 14.55 54.91 28.84 307.36 0.5896 -481.0 -425.7
13 0.00 3.20 0.00 1.94 13.33 54.70 28.63 305.83 0.5773 -773.0 -686.2
14 0.00 1.91 0.00 1.15 12.50 54.60 28.53 304.72 0.5695 -624.0 -601.2
15 0.00 1.13 0.00 0.67 12.09 54.48 28.41 304.22 0.5647 -592.0 -510.9
16 1.99 3.72 1.20 2.25 13.09 54.43 28.36 305.74 0.5722 -851.1 -721.3
17 0.00 1.21 0.00 0.73 12.17 54.31 28.24 304.50 0.5635 -729.0 -571.3
18 0.00 1.65 0.00 0.99 13.05 54.18 28.11 305.92 0.5689 -964.0 -810.6
19 0.00 1.30 0.00 0.78 13.25 53.93 27.86 306.46 0.5677 -786.0 -694.7
20 2.25 4.07 1.35 2.45 13.50 53.89 27.82 306.86 0.5694 -763.8 -550.7
21 0.61 1.99 0.36 1.19 13.09 53.84 27.77 306.31 0.5653 -946.1 -793.2
22 0.00 1.04 0.00 0.62 12.01 53.71 27.64 304.84 0.5550 -647.0 -543.1
23 0.00 1.13 0.00 0.67 12.38 53.61 27.54 305.49 0.5569 -806.0 -651.9
24 1.65 4.42 0.99 2.66 13.90 53.66 27.60 307.66 0.5702 -728.1 -576.8
25 0.00 1.73 0.00 1.02 12.01 53.16 27.09 305.38 0.5485 -720.0 -513.2
26 0.00 0.61 0.00 0.36 11.76 52.79 26.72 305.39 0.5421 -731.0 -575.6
27 0.43 1.82 0.26 1.08 13.57 52.90 26.83 307.97 0.5587 -744.6 -643.4
28 0.00 0.95 0.00 0.57 14.88 52.86 26.79 309.85 0.5697 221.0 178.6
29 0.00 1.65 0.00 0.96 11.20 52.29 26.22 305.03 0.5315 -890.0 -722.2
30 1.91 7.45 1.14 4.45 14.32 52.58 26.51 309.36 0.5616 -830.6 -591.0
31 0.00 1.04 0.00 0.61 13.00 52.38 26.32 307.67 0.5479 499.0 289.8
32 1.30 -30.00 0.78 -30.00 14.51 52.54 26.47 309.68 0.5628 -736.7 999999
33 0.00 0.43 0.00 0.26 16.53 52.51 26.44 312.47 0.5809 -486.0 -441.6
34 0.00 7.36 0.00 4.34 13.14 51.99 25.92 308.29 0.5445 -918.0 -749.2
35 0.00 1.56 0.00 0.94 15.45 52.22 26.15 311.33 0.5678 -768.0 -626.3
36 0.00 1.39 0.00 0.84 16.31 52.06 25.99 312.66 0.5742 -582.0 -556.1
37 1.99 6.58 1.18 3.88 13.66 51.68 25.61 309.40 0.5456 -823.6 -526.2
38 0.00 2.43 0.00 1.44 14.11 51.70 25.63 310.02 0.5499 -873.0 -738.5
39 0.00 2.51 0.00 1.47 12.98 51.40 25.33 308.71 0.5363 -748.0 -612.2
40 0.00 2.08 0.00 1.23 14.48 51.54 25.47 310.72 0.5516 -661.0 -470.7
41 0.00 1.47 0.00 0.88 15.02 51.47 25.40 311.56 0.5559 -738.0 -529.9
42 0.00 1.73 0.00 1.03 15.46 51.29 25.22 312.37 0.5580 -381.0 -447.8
43 0.00 2.08 0.00 1.22 13.61 50.72 24.65 310.39 0.5344 381.0 259.8
44 0.00 3.03 0.00 1.78 13.98 50.53 24.46 311.15 0.5358 552.0 446.6
45 0.78 6.06 0.46 3.54 13.78 50.31 24.24 311.12 0.5314 873.0 666.7
46 0.00 1.73 0.00 1.01 13.26 50.08 24.01 310.62 0.5239 525.0 549.7
47 0.95 2.34 0.56 1.38 15.50 50.21 24.14 313.67 0.5469 656.1 509.8
48 5.98 9.96 3.48 5.80 13.91 49.78 23.71 311.93 0.5269 -637.6 -432.0
49 0.00 0.78 0.00 0.46 15.84 50.01 23.94 314.37 0.5483 517.0 423.4
50 0.00 2.60 0.00 1.53 15.90 49.82 23.75 314.67 0.5468 420.0 374.7
51 0.00 0.69 0.00 0.39 10.98 49.23 23.16 308.11 0.4927 599.0 531.2
52 0.00 1.82 0.00 1.07 15.89 49.65 23.58 314.87 0.5449 752.0 694.1
53 0.00 1.13 0.00 0.65 13.97 49.15 23.08 312.79 0.5206 -714.0 -489.5
54 0.00 1.21 0.00 0.71 15.97 49.29 23.22 315.41 0.5420 727.0 628.0
55 1.73 7.54 1.01 4.41 15.69 48.85 22.78 315.58 0.5346 892.5 650.6
56 0.00 1.47 0.00 0.84 11.69 48.43 22.37 310.24 0.4901 694.0 605.3
57 0.00 1.73 0.00 1.01 15.96 48.44 22.38 316.45 0.5333 658.0 534.7
58 0.00 1.73 0.00 1.00 15.47 47.79 21.72 316.65 0.5216 238.0 94.6
59 0.87 59.59 0.50 34.14 14.49 47.45 21.38 315.74 0.5077 750.1 589.6
60 0.00 2.08 0.00 1.19 14.23 47.29 21.22 315.57 0.5033 892.0 702.9
61 0.00 0.78 0.00 0.45 15.20 47.36 21.29 316.84 0.5142 -218.0 -214.4
62 5.11 -59.00 2.93 -59.00 14.83 47.09 21.02 316.69 0.5076 658.0 999999
63 1.04 4.07 0.60 2.35 15.67 47.08 21.01 317.85 0.5165 -736.6 -444.5
64 10.74 -59.00 6.16 -59.00 15.04 46.75 20.68 317.45 0.5063 803.4 999999
65 0.00 0.78 0.00 0.45 15.48 46.63 20.56 318.22 0.5100 294.0 249.1
66 2.08 -59.00 1.19 -59.00 14.69 46.19 20.12 317.75 0.4969 1064.3 999999
67 0.00 2.94 0.00 1.69 15.66 46.25 20.18 318.98 0.5082 549.0 471.2
68 1.04 -59.00 0.59 -59.00 14.78 46.03 19.96 318.10 0.4963 1067.4 999999
69 0.00 1.39 0.00 0.80 16.30 46.19 20.12 319.92 0.5148 525.0 487.5
70 0.69 1.82 0.40 1.04 16.46 45.32 19.25 321.36 0.5083 539.8 340.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
