SDO HMI 2014-03-09 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.52 | 217.14 | 31.38 | 127.69 | 14.39 | 49.91 | 24.39 | 312.08 | 0.5402 | -5.8 | 0.2 | |
|
previous
or next observation for the same group /

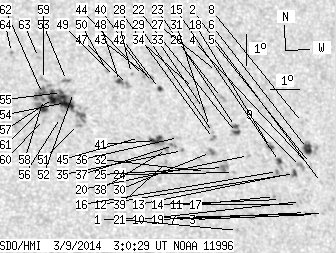

back to the solar disc SDO HMI 2014-03-09 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.47 | 11.90 | 55.34 | 29.82 | 302.64 | 0.5800 | -545.0 | -430.3 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 12.88 | 55.39 | 29.87 | 304.02 | 0.5881 | -539.0 | -402.1 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 11.85 | 55.05 | 29.53 | 302.82 | 0.5762 | -599.0 | -534.3 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 13.33 | 55.10 | 29.58 | 304.94 | 0.5882 | -576.0 | -479.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 13.46 | 55.08 | 29.56 | 305.14 | 0.5890 | -437.0 | -414.4 | |
| 6.15 | 12.73 | 3.77 | 7.82 | 13.93 | 55.05 | 29.52 | 305.84 | 0.5923 | -788.2 | -480.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 11.89 | 54.71 | 29.19 | 303.20 | 0.5724 | -729.0 | -577.1 | |
| 0.00 | 0.95 | 0.00 | 0.59 | 14.76 | 54.99 | 29.47 | 307.04 | 0.5982 | -533.0 | -492.1 | |
| 0.00 | 4.42 | 0.00 | 2.69 | 13.34 | 54.72 | 29.20 | 305.31 | 0.5838 | -675.0 | -661.5 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 12.22 | 54.57 | 29.05 | 303.82 | 0.5734 | -669.0 | -562.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 12.12 | 54.46 | 28.94 | 303.77 | 0.5713 | -704.0 | -604.7 | |
| 1.82 | 3.64 | 1.10 | 2.21 | 13.10 | 54.48 | 28.95 | 305.19 | 0.5792 | -767.5 | -651.4 | |
| 0.00 | 1.47 | 0.00 | 0.89 | 13.05 | 54.19 | 28.67 | 305.39 | 0.5754 | -873.0 | -752.4 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 12.24 | 53.88 | 28.36 | 304.49 | 0.5654 | -797.0 | -609.5 | |
| 1.99 | 5.28 | 1.21 | 3.20 | 13.45 | 54.00 | 28.48 | 306.15 | 0.5765 | -753.4 | -654.9 | |
| 0.61 | 2.69 | 0.37 | 1.62 | 13.13 | 53.89 | 28.36 | 305.79 | 0.5725 | -918.1 | -772.9 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 12.33 | 53.68 | 28.16 | 304.81 | 0.5637 | -827.0 | -672.3 | |
| 1.47 | 3.21 | 0.89 | 1.94 | 13.88 | 53.74 | 28.22 | 307.01 | 0.5771 | -691.4 | -513.0 | |
| 0.00 | 2.34 | 0.00 | 1.38 | 11.68 | 52.82 | 27.30 | 304.67 | 0.5482 | -683.0 | -619.4 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 13.58 | 52.94 | 27.42 | 307.37 | 0.5654 | -833.0 | -683.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 11.17 | 52.29 | 26.76 | 304.43 | 0.5378 | -802.0 | -644.8 | |
| 1.73 | 6.50 | 1.04 | 3.91 | 14.29 | 52.62 | 27.09 | 308.72 | 0.5679 | -830.7 | -616.7 | |
| 1.21 | -22.00 | 0.73 | -22.00 | 14.48 | 52.61 | 27.09 | 309.00 | 0.5694 | -692.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 13.00 | 52.35 | 26.83 | 307.14 | 0.5538 | 301.0 | 297.8 | |
| 0.00 | 7.19 | 0.00 | 4.26 | 13.14 | 52.03 | 26.50 | 307.68 | 0.5512 | -880.0 | -723.8 | |
| 0.00 | 4.24 | 0.00 | 2.56 | 15.39 | 52.25 | 26.73 | 310.63 | 0.5735 | -710.0 | -547.6 | |
| 0.00 | 2.34 | 0.00 | 1.42 | 16.23 | 52.20 | 26.67 | 311.81 | 0.5805 | -319.0 | -340.9 | |
| 0.00 | 2.69 | 0.00 | 1.60 | 14.05 | 51.79 | 26.27 | 309.24 | 0.5566 | -821.0 | -749.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 14.24 | 51.82 | 26.30 | 309.49 | 0.5586 | -635.0 | -575.8 | |
| 0.00 | 4.59 | 0.00 | 2.72 | 13.60 | 51.64 | 26.11 | 308.75 | 0.5508 | -844.0 | -675.9 | |
| 0.00 | 1.91 | 0.00 | 1.14 | 14.43 | 51.71 | 26.18 | 309.87 | 0.5590 | -437.0 | -414.4 | |
| 0.00 | 2.08 | 0.00 | 1.22 | 12.98 | 51.39 | 25.87 | 308.11 | 0.5426 | -736.0 | -588.6 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 15.00 | 51.57 | 26.05 | 310.81 | 0.5627 | -742.0 | -579.0 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 15.63 | 51.32 | 25.79 | 311.95 | 0.5657 | -573.0 | -384.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 13.61 | 50.68 | 25.16 | 309.81 | 0.5401 | 626.0 | 474.2 | |
| 0.00 | 2.08 | 0.00 | 1.22 | 14.02 | 50.60 | 25.08 | 310.50 | 0.5429 | 505.0 | 402.5 | |
| 0.00 | 2.86 | 0.00 | 1.68 | 13.75 | 50.40 | 24.88 | 310.35 | 0.5382 | 770.0 | 671.9 | |
| 0.00 | 2.43 | 0.00 | 1.42 | 13.61 | 50.14 | 24.62 | 310.43 | 0.5341 | 855.0 | 716.2 | |
| 0.00 | 1.47 | 0.00 | 0.86 | 13.19 | 50.10 | 24.58 | 309.87 | 0.5297 | 696.0 | 598.1 | |
| 1.30 | 2.34 | 0.77 | 1.39 | 15.56 | 50.14 | 24.62 | 313.19 | 0.5526 | 620.0 | 538.9 | |
| 5.89 | 10.40 | 3.44 | 6.08 | 13.88 | 49.84 | 24.32 | 311.18 | 0.5332 | -617.0 | -151.8 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 15.74 | 49.93 | 24.41 | 313.68 | 0.5521 | 618.0 | 515.5 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 15.87 | 49.91 | 24.39 | 313.88 | 0.5532 | 725.0 | 594.8 | |
| 0.00 | 2.17 | 0.00 | 1.28 | 15.95 | 49.65 | 24.13 | 314.29 | 0.5513 | 698.0 | 655.9 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 13.95 | 49.27 | 23.75 | 311.94 | 0.5276 | -680.0 | -572.5 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 16.00 | 49.25 | 23.73 | 314.83 | 0.5476 | 720.0 | 620.0 | |
| 0.00 | 2.34 | 0.00 | 1.38 | 15.63 | 49.07 | 23.55 | 314.56 | 0.5420 | 641.0 | 382.6 | |
| 1.56 | 3.73 | 0.92 | 2.19 | 15.72 | 48.81 | 23.29 | 314.98 | 0.5402 | 860.4 | 685.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 15.87 | 48.66 | 23.14 | 315.38 | 0.5402 | 629.0 | 496.0 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 16.02 | 48.44 | 22.92 | 315.85 | 0.5395 | 770.0 | 674.5 | |
| 0.00 | 3.64 | 0.00 | 2.09 | 14.26 | 47.28 | 21.75 | 314.90 | 0.5092 | 871.0 | 703.9 | |
| 0.00 | 1.65 | 0.00 | 0.95 | 15.28 | 47.22 | 21.70 | 316.41 | 0.5193 | -335.0 | -286.6 | |
| 0.00 | 3.55 | 0.00 | 2.06 | 15.66 | 47.03 | 21.51 | 317.18 | 0.5214 | -839.0 | -602.3 | |
| 11.78 | 73.98 | 6.79 | 42.55 | 14.95 | 46.92 | 21.40 | 316.35 | 0.5127 | 682.9 | 577.1 | |
| 1.56 | -54.00 | 0.90 | -54.00 | 15.26 | 46.82 | 21.30 | 316.92 | 0.5150 | 540.6 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.39 | 14.46 | 46.70 | 21.18 | 315.95 | 0.5052 | 817.0 | 672.6 | |
| 9.44 | -54.00 | 5.43 | -54.00 | 15.06 | 46.53 | 21.01 | 317.02 | 0.5099 | 892.6 | 999999 | |
| 0.52 | -54.00 | 0.30 | -54.00 | 15.01 | 46.20 | 20.68 | 317.41 | 0.5060 | 968.3 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.65 | 15.66 | 46.27 | 20.74 | 318.20 | 0.5137 | 595.0 | 457.3 | |
| 0.00 | 2.25 | 0.00 | 1.29 | 14.37 | 46.13 | 20.61 | 316.60 | 0.4983 | 756.0 | 616.4 | |
| 4.24 | -54.00 | 2.43 | -54.00 | 14.72 | 46.13 | 20.61 | 317.09 | 0.5022 | 1073.1 | 999999 | |
| 2.25 | -54.00 | 1.29 | -54.00 | 15.20 | 46.18 | 20.66 | 317.69 | 0.5080 | 817.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 16.36 | 46.18 | 20.66 | 319.25 | 0.5206 | 662.0 | 545.5 | |
| 0.00 | 1.13 | 0.00 | 0.65 | 16.49 | 45.30 | 19.78 | 320.63 | 0.5136 | 581.0 | 544.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
