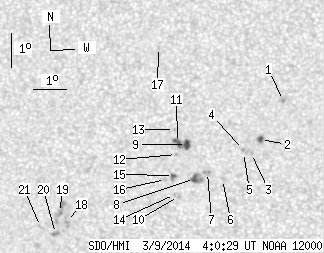

SDO HMI 2014-03-09 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.83 | 64.38 | 6.47 | 32.64 | -11.10 | 13.45 | -11.52 | 109.46 | 0.2091 | 600.6 | 159.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.78 | -8.91 | 17.50 | -7.48 | 103.13 | 0.1326 | 1146.0 | 886.9 | |
| 1.91 | 3.21 | 0.95 | 1.61 | -10.06 | 16.77 | -8.21 | 109.67 | 0.1499 | 1188.3 | 919.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -10.47 | 16.48 | -8.49 | 111.60 | 0.1569 | 779.0 | 699.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -10.35 | 16.24 | -8.73 | 110.35 | 0.1601 | 927.0 | 794.8 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -10.44 | 16.24 | -8.74 | 110.88 | 0.1606 | 700.0 | 518.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -11.23 | 15.57 | -9.41 | 113.88 | 0.1761 | 670.0 | 575.1 | |
| 0.00 | 2.86 | 0.00 | 1.44 | -11.01 | 15.11 | -9.86 | 111.83 | 0.1819 | 876.0 | 845.5 | |
| 2.95 | 9.62 | 1.49 | 4.85 | -11.18 | 14.71 | -10.27 | 111.94 | 0.1894 | 1049.8 | 863.5 | |
| 3.90 | 12.22 | 1.97 | 6.16 | -10.16 | 14.50 | -10.48 | 106.43 | 0.1875 | 1251.1 | 840.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -11.70 | 14.19 | -10.78 | 113.54 | 0.2007 | 770.0 | 675.1 | |
| 3.03 | -9.00 | 1.53 | -9.00 | -10.09 | 14.22 | -10.75 | 105.73 | 0.1917 | 999.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -10.45 | 14.18 | -10.79 | 107.47 | 0.1940 | 788.0 | 583.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.70 | 14.14 | -10.83 | 103.65 | 0.1915 | 879.0 | 643.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -11.64 | 14.07 | -10.90 | 113.03 | 0.2022 | 693.0 | 532.3 | |
| 1.04 | 4.07 | 0.53 | 2.06 | -11.07 | 14.06 | -10.91 | 110.34 | 0.1990 | 935.9 | 723.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -11.19 | 13.81 | -11.16 | 110.48 | 0.2037 | 668.0 | 516.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -7.25 | 13.73 | -11.25 | 90.71 | 0.1944 | 748.0 | 595.9 | |
| 0.00 | 5.11 | 0.00 | 2.62 | -12.35 | 10.67 | -14.30 | 111.01 | 0.2597 | -930.0 | -802.1 | |
| 0.00 | 9.53 | 0.00 | 4.89 | -12.08 | 10.47 | -14.51 | 109.76 | 0.2615 | -907.0 | -789.0 | |
| 0.00 | 3.21 | 0.00 | 1.65 | -12.70 | 10.30 | -14.67 | 111.82 | 0.2674 | -878.0 | -787.1 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -12.47 | 9.84 | -15.13 | 110.50 | 0.2733 | -616.0 | -586.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
