SDO HMI 2014-03-09 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.77 | 0.00 | 10.60 | -16.05 | 45.75 | 21.33 | 244.98 | 0.3874 | 416.2 | 207.8 | |
|
previous
or next observation for the same group /

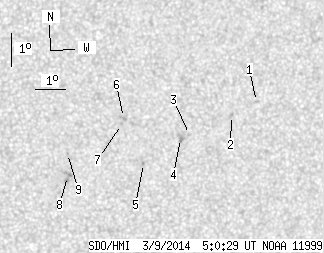

back to the solar disc SDO HMI 2014-03-09 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.65 | 0.00 | 0.90 | -14.68 | 49.40 | 24.97 | 250.98 | 0.4339 | 693.0 | 537.3 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -15.15 | 48.61 | 24.18 | 249.47 | 0.4240 | 787.0 | 642.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -15.78 | 47.27 | 22.84 | 247.09 | 0.4073 | 617.0 | 523.4 | |
| 0.00 | 3.81 | 0.00 | 2.06 | -15.92 | 46.98 | 22.56 | 246.55 | 0.4038 | 933.0 | 760.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -16.72 | 45.84 | 21.41 | 243.68 | 0.3918 | 804.0 | 639.5 | |
| 0.00 | 3.21 | 0.00 | 1.71 | -15.37 | 45.03 | 20.60 | 246.29 | 0.3722 | 761.0 | 680.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -15.58 | 44.98 | 20.56 | 245.71 | 0.3727 | 680.0 | 608.1 | |
| 0.00 | 5.63 | 0.00 | 2.99 | -17.22 | 43.37 | 18.95 | 239.92 | 0.3600 | -816.0 | -789.6 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -16.52 | 43.30 | 18.88 | 241.60 | 0.3541 | -713.0 | -542.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
