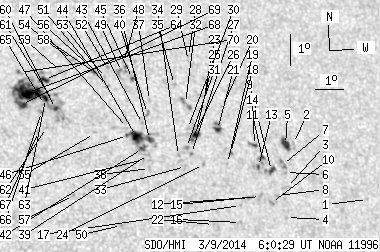

SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.53 | 255.92 | 38.83 | 152.43 | 14.36 | 49.74 | 25.86 | 310.34 | 0.5558 | -10.2 | -1.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.61 | 12.38 | 57.90 | 34.02 | 299.95 | 0.6330 | -533.0 | -429.1 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 13.98 | 55.45 | 31.57 | 304.11 | 0.6158 | -388.0 | -310.3 | |
| 0.00 | 3.03 | 0.00 | 1.87 | 12.56 | 54.99 | 31.11 | 302.49 | 0.6001 | -705.0 | -539.6 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 11.61 | 54.86 | 30.98 | 301.21 | 0.5918 | -556.0 | -450.9 | |
| 5.29 | 7.54 | 3.30 | 4.71 | 13.93 | 55.15 | 31.27 | 304.28 | 0.6120 | -833.3 | -619.4 | |
| 0.00 | 1.30 | 0.00 | 0.81 | 13.03 | 55.02 | 31.14 | 303.14 | 0.6039 | -680.0 | -497.8 | |
| 0.00 | 4.42 | 0.00 | 2.74 | 13.28 | 54.95 | 31.07 | 303.55 | 0.6049 | -677.0 | -699.3 | |
| 0.00 | 1.65 | 0.00 | 1.01 | 12.28 | 54.63 | 30.75 | 302.39 | 0.5939 | -728.0 | -600.1 | |
| 2.17 | 3.90 | 1.34 | 2.41 | 13.07 | 54.52 | 30.64 | 303.61 | 0.5984 | -841.2 | -683.5 | |
| 0.00 | 2.43 | 0.00 | 1.48 | 12.05 | 54.39 | 30.51 | 302.26 | 0.5893 | -785.0 | -621.5 | |
| 0.61 | 9.19 | 0.37 | 5.65 | 13.46 | 54.26 | 30.38 | 304.40 | 0.5983 | -802.9 | -744.2 | |
| 0.00 | 3.47 | 0.00 | 2.11 | 12.21 | 54.02 | 30.14 | 302.81 | 0.5861 | -745.0 | -660.7 | |
| 0.78 | -11.00 | 0.48 | -11.00 | 13.16 | 54.08 | 30.20 | 304.14 | 0.5939 | -959.2 | 999999 | |
| 1.04 | 3.81 | 0.64 | 2.35 | 13.83 | 54.03 | 30.15 | 305.12 | 0.5985 | -687.7 | -521.9 | |
| 0.00 | 1.73 | 0.00 | 1.05 | 12.15 | 53.63 | 29.75 | 303.08 | 0.5811 | -919.0 | -781.8 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 11.34 | 53.21 | 29.33 | 302.24 | 0.5700 | -641.0 | -495.7 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 11.88 | 53.28 | 29.40 | 302.99 | 0.5748 | -689.0 | -613.0 | |
| 0.00 | 1.47 | 0.00 | 0.90 | 13.51 | 53.14 | 29.26 | 305.49 | 0.5858 | -786.0 | -707.8 | |
| 0.00 | 0.78 | 0.00 | 0.47 | 13.19 | 52.99 | 29.11 | 305.16 | 0.5815 | -840.0 | -620.6 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 15.01 | 53.07 | 29.19 | 307.64 | 0.5971 | 529.0 | 342.5 | |
| 2.43 | 7.28 | 1.48 | 4.45 | 14.26 | 52.78 | 28.90 | 306.87 | 0.5878 | -820.5 | -604.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 11.22 | 52.26 | 28.38 | 302.92 | 0.5576 | -632.0 | -458.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 15.32 | 52.48 | 28.60 | 308.63 | 0.5933 | -558.0 | -547.0 | |
| 0.00 | 1.39 | 0.00 | 0.84 | 13.10 | 52.14 | 28.26 | 305.84 | 0.5710 | -827.0 | -729.9 | |
| 2.77 | 9.19 | 1.68 | 5.56 | 14.05 | 51.98 | 28.10 | 307.34 | 0.5770 | -913.0 | -648.8 | |
| 0.87 | -25.00 | 0.52 | -25.00 | 13.88 | 51.82 | 27.94 | 307.26 | 0.5738 | -969.2 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.83 | 13.43 | 51.76 | 27.88 | 306.68 | 0.5694 | -944.0 | -708.6 | |
| 0.00 | 1.21 | 0.00 | 0.75 | 16.56 | 52.11 | 28.23 | 310.65 | 0.5999 | -603.0 | -445.2 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 16.43 | 52.09 | 28.21 | 310.49 | 0.5985 | -612.0 | -490.6 | |
| 0.00 | 1.56 | 0.00 | 0.94 | 14.22 | 51.73 | 27.85 | 307.84 | 0.5756 | -324.0 | -319.8 | |
| 0.00 | 2.43 | 0.00 | 1.46 | 13.61 | 51.61 | 27.73 | 307.09 | 0.5692 | -800.0 | -664.1 | |
| 0.00 | 5.55 | 0.00 | 3.38 | 15.02 | 51.77 | 27.89 | 308.92 | 0.5829 | -729.0 | -718.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 13.00 | 51.50 | 27.62 | 306.32 | 0.5628 | -827.0 | -723.3 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 13.34 | 51.30 | 27.42 | 307.01 | 0.5633 | -702.0 | -570.7 | |
| 0.00 | 1.39 | 0.00 | 0.85 | 15.62 | 51.48 | 27.59 | 310.03 | 0.5848 | -681.0 | -508.1 | |
| 1.21 | 32.93 | 0.72 | 19.55 | 13.79 | 50.36 | 26.48 | 308.63 | 0.5565 | 870.0 | 211.8 | |
| 0.00 | 1.13 | 0.00 | 0.68 | 15.05 | 50.53 | 26.65 | 310.23 | 0.5695 | -687.0 | -563.9 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 12.86 | 50.25 | 26.37 | 307.40 | 0.5472 | 646.0 | 527.9 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 13.31 | 50.27 | 26.39 | 308.03 | 0.5513 | 474.0 | 368.2 | |
| 0.00 | 2.60 | 0.00 | 1.56 | 14.62 | 50.40 | 26.52 | 309.77 | 0.5643 | -768.0 | -602.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 13.14 | 50.08 | 26.20 | 307.99 | 0.5476 | 735.0 | 654.5 | |
| 1.65 | -36.00 | 0.98 | -36.00 | 13.49 | 50.08 | 26.20 | 308.49 | 0.5507 | 822.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 14.29 | 50.18 | 26.30 | 309.53 | 0.5590 | -436.0 | -385.7 | |
| 9.45 | -36.00 | 5.60 | -36.00 | 13.86 | 49.93 | 26.04 | 309.20 | 0.5522 | -675.1 | 999999 | |
| 0.78 | 2.77 | 0.47 | 1.67 | 15.72 | 50.03 | 26.15 | 311.69 | 0.5703 | 812.8 | 592.7 | |
| 0.52 | -36.00 | 0.31 | -36.00 | 13.87 | 49.62 | 25.74 | 309.55 | 0.5489 | -787.7 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 14.13 | 49.65 | 25.77 | 309.89 | 0.5516 | -541.0 | -457.2 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 16.23 | 49.79 | 25.91 | 312.62 | 0.5725 | 551.0 | 455.6 | |
| 0.00 | 7.37 | 0.00 | 4.43 | 15.93 | 49.68 | 25.80 | 312.35 | 0.5685 | 781.0 | 669.3 | |
| 0.00 | 1.30 | 0.00 | 0.75 | 11.01 | 49.11 | 25.23 | 305.77 | 0.5177 | 687.0 | 514.5 | |
| 0.00 | 1.21 | 0.00 | 0.72 | 15.42 | 49.13 | 25.25 | 312.26 | 0.5578 | 696.0 | 562.2 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 16.03 | 49.22 | 25.34 | 313.00 | 0.5646 | 777.0 | 632.3 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 15.70 | 49.10 | 25.22 | 312.69 | 0.5602 | 670.0 | 474.2 | |
| 0.87 | 1.73 | 0.52 | 1.03 | 15.85 | 48.75 | 24.87 | 313.28 | 0.5578 | 823.7 | 705.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 13.88 | 48.50 | 24.62 | 310.81 | 0.5365 | -176.0 | -198.8 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 16.03 | 48.60 | 24.72 | 313.70 | 0.5581 | 540.0 | 363.8 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 11.87 | 47.59 | 23.71 | 308.86 | 0.5073 | 738.0 | 618.7 | |
| 0.00 | 3.12 | 0.00 | 1.85 | 16.23 | 48.05 | 24.17 | 314.61 | 0.5543 | -406.0 | -380.3 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 15.82 | 47.59 | 23.71 | 314.60 | 0.5454 | -225.0 | -190.7 | |
| 1.47 | 85.10 | 0.86 | 49.53 | 14.61 | 47.27 | 23.39 | 313.32 | 0.5301 | 864.1 | 505.5 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 14.86 | 47.20 | 23.32 | 313.76 | 0.5319 | 360.0 | 342.1 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 13.98 | 46.90 | 23.02 | 312.88 | 0.5199 | 752.0 | 617.2 | |
| 2.77 | -60.00 | 1.62 | -60.00 | 14.92 | 46.97 | 23.09 | 314.11 | 0.5300 | 925.9 | 999999 | |
| 2.95 | 8.32 | 1.73 | 4.88 | 15.53 | 47.01 | 23.13 | 314.91 | 0.5366 | 557.1 | -185.7 | |
| 0.00 | 2.69 | 0.00 | 1.56 | 14.72 | 46.92 | 23.04 | 313.91 | 0.5274 | 915.0 | 618.7 | |
| 0.00 | 2.34 | 0.00 | 1.36 | 14.49 | 46.79 | 22.91 | 313.74 | 0.5238 | 889.0 | 764.7 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 13.84 | 46.62 | 22.74 | 313.02 | 0.5155 | 745.0 | 575.8 | |
| 22.96 | -60.00 | 13.35 | -60.00 | 15.08 | 46.39 | 22.51 | 315.07 | 0.5255 | 998.7 | 999999 | |
| 4.94 | -60.00 | 2.86 | -60.00 | 14.68 | 46.14 | 22.26 | 314.83 | 0.5189 | 1159.4 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.52 | 15.71 | 46.19 | 22.31 | 316.19 | 0.5301 | 698.0 | 516.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
