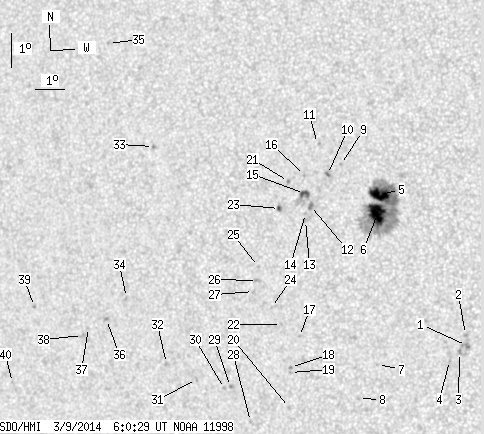

SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.38 | 223.46 | 22.98 | 122.22 | -10.37 | 358.84 | -25.04 | 98.99 | 0.4235 | 556.8 | 340.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.16 | 0.00 | 2.22 | -14.11 | 2.55 | -21.33 | 109.93 | 0.3768 | 1054.0 | 844.4 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -13.78 | 2.55 | -21.33 | 109.08 | 0.3754 | 790.0 | 649.2 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -14.31 | 2.30 | -21.58 | 110.26 | 0.3815 | 833.0 | 721.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -14.53 | 1.95 | -21.93 | 110.57 | 0.3879 | 817.0 | 612.8 | |
| 15.34 | 155.90 | 8.29 | 84.32 | -9.47 | 0.09 | -23.79 | 97.08 | 0.4026 | 1255.7 | 453.4 | |
| 23.05 | -5.00 | 12.48 | -5.00 | -10.03 | 359.98 | -23.90 | 98.45 | 0.4050 | 1212.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -14.54 | 359.54 | -24.34 | 109.05 | 0.4239 | 617.0 | 544.1 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -15.52 | 358.77 | -25.11 | 110.81 | 0.4393 | 767.0 | 599.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -8.51 | 358.87 | -25.01 | 94.62 | 0.4212 | 712.0 | 605.4 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -8.79 | 358.42 | -25.46 | 95.24 | 0.4285 | 933.0 | 826.7 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -7.85 | 358.15 | -25.73 | 93.05 | 0.4325 | 600.0 | 612.3 | |
| 0.00 | 3.55 | 0.00 | 1.96 | -9.68 | 357.78 | -26.10 | 97.24 | 0.4390 | 930.0 | 765.3 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -10.11 | 357.57 | -26.31 | 98.20 | 0.4427 | 780.0 | 714.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -9.91 | 357.59 | -26.29 | 97.73 | 0.4422 | 654.0 | 424.5 | |
| 2.86 | 13.61 | 1.58 | 7.51 | -9.31 | 357.61 | -26.27 | 96.38 | 0.4414 | 834.7 | 223.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -8.77 | 357.65 | -26.23 | 95.17 | 0.4404 | 699.0 | 598.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -13.56 | 357.00 | -26.88 | 105.65 | 0.4584 | 862.0 | 654.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -14.46 | 356.57 | -27.31 | 107.41 | 0.4675 | 775.0 | 623.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.61 | 356.55 | -27.33 | 107.71 | 0.4683 | 543.0 | 474.6 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -15.66 | 356.37 | -27.51 | 109.79 | 0.4747 | -907.0 | -700.7 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -8.92 | 357.10 | -26.78 | 95.47 | 0.4491 | 491.0 | 341.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -13.16 | 356.43 | -27.45 | 104.60 | 0.4658 | 681.0 | 559.8 | |
| 1.13 | 1.82 | 0.63 | 1.01 | -9.71 | 356.73 | -27.15 | 97.18 | 0.4553 | -643.3 | -634.4 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -12.64 | 356.15 | -27.73 | 103.39 | 0.4687 | 726.0 | 564.4 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -11.39 | 355.84 | -28.04 | 100.66 | 0.4708 | 639.0 | 459.1 | |
| 0.00 | 2.51 | 0.00 | 1.41 | -11.80 | 355.76 | -28.12 | 101.52 | 0.4728 | 783.0 | 495.8 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -12.12 | 355.59 | -28.29 | 102.15 | 0.4760 | 635.0 | 501.0 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -16.00 | 354.94 | -28.94 | 109.79 | 0.4963 | -730.0 | -622.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -14.91 | 354.41 | -29.47 | 107.41 | 0.5003 | -890.0 | -772.6 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -14.96 | 354.19 | -29.69 | 107.42 | 0.5036 | -797.0 | -671.6 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -14.62 | 353.24 | -30.64 | 106.43 | 0.5162 | -826.0 | -629.5 | |
| 0.00 | 2.25 | 0.00 | 1.31 | -14.08 | 352.25 | -31.63 | 105.08 | 0.5290 | -768.0 | -589.5 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -7.60 | 352.55 | -31.33 | 92.70 | 0.5180 | -776.0 | -741.6 | |
| 0.00 | 1.65 | 0.00 | 0.97 | -12.02 | 351.10 | -32.78 | 100.99 | 0.5415 | -561.0 | -521.6 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -4.43 | 351.17 | -32.71 | 86.90 | 0.5416 | -666.0 | -593.4 | |
| 0.00 | 1.91 | 0.00 | 1.13 | -12.62 | 350.29 | -33.59 | 101.95 | 0.5541 | -799.0 | -681.9 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -12.81 | 349.59 | -34.29 | 102.16 | 0.5641 | -276.0 | -188.2 | |
| 0.00 | 2.51 | 0.00 | 1.51 | -13.04 | 349.33 | -34.55 | 102.51 | 0.5681 | -694.0 | -559.0 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -12.04 | 347.69 | -36.19 | 100.54 | 0.5896 | -724.0 | -592.1 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -14.24 | 346.46 | -37.42 | 104.01 | 0.6093 | -522.0 | -437.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
