SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.16 | 0.00 | 9.27 | -15.98 | 45.83 | 21.95 | 245.57 | 0.3963 | 265.1 | 5.9 | |
|
previous
or next observation for the same group /

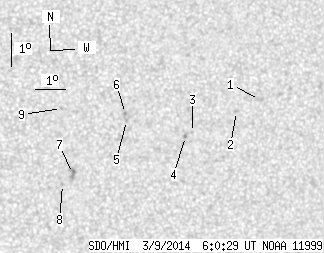

back to the solar disc SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.73 | 0.00 | 2.06 | -14.72 | 49.37 | 25.49 | 251.18 | 0.4416 | 474.0 | 347.2 | |
| 0.00 | 1.65 | 0.00 | 0.90 | -15.11 | 48.63 | 24.75 | 249.88 | 0.4323 | 841.0 | 621.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -15.82 | 47.23 | 23.35 | 247.37 | 0.4149 | 778.0 | 603.8 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -15.95 | 47.01 | 23.13 | 246.91 | 0.4124 | 988.0 | 826.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -15.56 | 45.00 | 21.11 | 246.25 | 0.3808 | 770.0 | 615.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -15.35 | 44.94 | 21.06 | 246.73 | 0.3789 | 959.0 | 755.3 | |
| 0.00 | 5.20 | 0.00 | 2.77 | -17.22 | 43.39 | 19.51 | 240.54 | 0.3679 | -839.0 | -779.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -17.57 | 43.09 | 19.21 | 239.36 | 0.3663 | -755.0 | -573.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -15.28 | 42.83 | 18.95 | 244.95 | 0.3473 | -830.0 | -644.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
