SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.71 | 57.28 | 3.87 | 28.93 | -11.06 | 13.59 | -10.29 | 111.26 | 0.1891 | 411.4 | 173.0 | |
|
previous
or next observation for the same group /

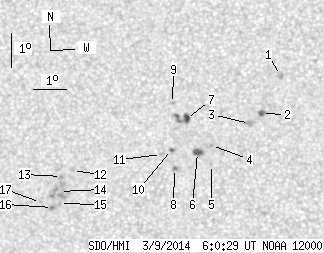

back to the solar disc SDO HMI 2014-03-09 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.21 | 0.00 | 1.60 | -8.92 | 17.46 | -6.42 | 105.20 | 0.1150 | 974.0 | 895.7 | |
| 1.21 | 3.29 | 0.61 | 1.65 | -10.04 | 16.86 | -7.02 | 112.45 | 0.1308 | 1303.9 | 961.4 | |
| 0.00 | 4.68 | 0.00 | 2.34 | -10.34 | 16.49 | -7.39 | 113.46 | 0.1386 | 1046.0 | 832.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.97 | 15.31 | -8.57 | 114.38 | 0.1614 | 1033.0 | 823.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -11.54 | 15.29 | -8.59 | 117.50 | 0.1658 | 954.0 | 744.2 | |
| 2.95 | 5.63 | 1.48 | 2.83 | -11.17 | 14.87 | -9.01 | 114.48 | 0.1696 | 1084.4 | 918.5 | |
| 3.03 | 11.18 | 1.52 | 5.62 | -10.15 | 14.57 | -9.31 | 108.17 | 0.1685 | 1267.2 | 913.0 | |
| 0.00 | 2.51 | 0.00 | 1.27 | -11.63 | 14.15 | -9.73 | 115.30 | 0.1840 | 915.0 | 752.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -9.69 | 14.15 | -9.73 | 104.95 | 0.1732 | 838.0 | 590.3 | |
| 0.52 | 1.65 | 0.26 | 0.83 | -11.06 | 14.08 | -9.80 | 112.25 | 0.1814 | 939.5 | 812.5 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -11.21 | 13.76 | -10.12 | 112.39 | 0.1872 | 763.0 | 573.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.61 | 10.99 | -12.89 | 109.93 | 0.2335 | -917.0 | -692.4 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -11.78 | 10.64 | -13.24 | 110.16 | 0.2400 | -896.0 | -728.6 | |
| 0.00 | 13.43 | 0.00 | 6.86 | -12.23 | 10.55 | -13.33 | 111.80 | 0.2438 | -269.0 | -831.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -12.58 | 10.53 | -13.35 | 113.15 | 0.2462 | -866.0 | -712.5 | |
| 0.00 | 2.69 | 0.00 | 1.37 | -12.70 | 10.31 | -13.58 | 113.26 | 0.2504 | -1059.0 | -822.2 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -12.54 | 9.94 | -13.94 | 112.17 | 0.2551 | -674.0 | -550.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
