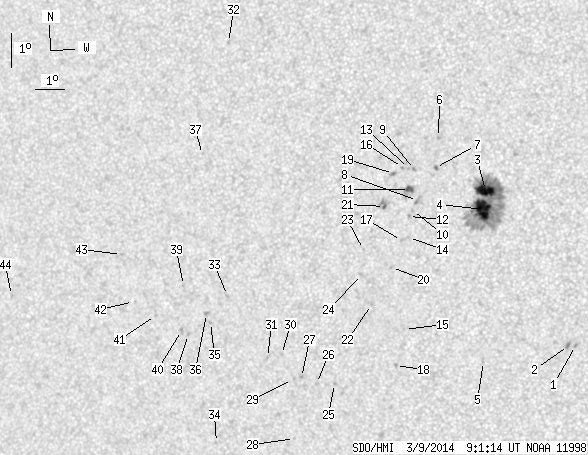

SDO HMI 2014-03-09 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.78 | 208.67 | 20.24 | 113.13 | -10.33 | 358.39 | -23.85 | 99.13 | 0.4044 | 383.3 | 315.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.82 | -14.23 | 2.64 | -19.60 | 111.62 | 0.3513 | 1085.0 | 847.1 | |
| 0.00 | 2.77 | 0.00 | 1.47 | -14.22 | 2.41 | -19.83 | 111.40 | 0.3547 | 951.0 | 868.9 | |
| 14.47 | 140.14 | 7.73 | 74.90 | -9.48 | 0.09 | -22.15 | 97.40 | 0.3766 | 1257.5 | 503.9 | |
| 19.85 | -3.00 | 10.62 | -3.00 | -10.04 | 359.98 | -22.25 | 98.87 | 0.3790 | 1265.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -14.57 | 359.57 | -22.67 | 110.19 | 0.3991 | 376.0 | 428.1 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -7.83 | 358.66 | -23.57 | 93.00 | 0.3985 | 806.0 | 587.9 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -8.71 | 358.50 | -23.73 | 95.22 | 0.4012 | 945.0 | 843.1 | |
| 0.00 | 3.47 | 0.00 | 1.88 | -9.66 | 357.84 | -24.40 | 97.48 | 0.4124 | 796.0 | 745.8 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -8.74 | 357.81 | -24.43 | 95.22 | 0.4122 | 829.0 | 725.0 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -9.95 | 357.65 | -24.59 | 98.15 | 0.4157 | 666.0 | 574.1 | |
| 2.77 | 8.49 | 1.51 | 4.62 | -9.32 | 357.60 | -24.64 | 96.62 | 0.4159 | 875.6 | 428.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -10.12 | 357.50 | -24.73 | 98.53 | 0.4183 | 905.0 | 712.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -8.70 | 357.61 | -24.62 | 95.11 | 0.4153 | 784.0 | 659.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -10.75 | 357.45 | -24.79 | 100.01 | 0.4200 | 747.0 | 471.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -13.48 | 357.03 | -25.20 | 106.22 | 0.4330 | 621.0 | 552.5 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -8.66 | 357.42 | -24.82 | 95.00 | 0.4183 | 812.0 | 676.2 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -10.83 | 357.21 | -25.03 | 100.13 | 0.4239 | 733.0 | 564.4 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -14.54 | 356.60 | -25.63 | 108.39 | 0.4431 | 783.0 | 643.0 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -8.82 | 357.10 | -25.13 | 95.37 | 0.4233 | 765.0 | 517.4 | |
| 0.00 | 1.39 | 0.00 | 0.76 | -11.61 | 356.80 | -25.44 | 101.85 | 0.4317 | 735.0 | 520.1 | |
| 0.69 | 7.63 | 0.38 | 4.18 | -9.78 | 356.73 | -25.51 | 97.59 | 0.4299 | -1021.6 | -625.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -12.68 | 356.01 | -26.23 | 104.00 | 0.4462 | 805.0 | 676.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -11.02 | 355.91 | -26.33 | 100.27 | 0.4443 | -753.0 | -490.1 | |
| 0.00 | 2.51 | 0.00 | 1.39 | -11.76 | 355.76 | -26.47 | 101.89 | 0.4478 | 566.0 | 368.2 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -14.96 | 354.44 | -27.79 | 108.25 | 0.4763 | -889.0 | -696.1 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -14.93 | 353.82 | -28.42 | 107.90 | 0.4852 | -585.0 | -413.9 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -14.72 | 353.32 | -28.92 | 107.27 | 0.4917 | -808.0 | -733.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -16.53 | 352.78 | -29.45 | 110.59 | 0.5056 | -693.0 | -527.9 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -14.76 | 353.00 | -29.24 | 107.22 | 0.4965 | -573.0 | -554.8 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -13.99 | 352.72 | -29.51 | 105.59 | 0.4983 | -794.0 | -593.2 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -14.05 | 352.22 | -30.02 | 105.54 | 0.5058 | -588.0 | -504.2 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -4.59 | 351.77 | -30.47 | 86.74 | 0.5083 | -713.0 | -580.6 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -12.11 | 351.06 | -31.17 | 101.47 | 0.5185 | -789.0 | -614.1 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -16.47 | 349.97 | -32.27 | 109.28 | 0.5445 | -619.0 | -529.0 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -12.87 | 350.35 | -31.89 | 102.77 | 0.5301 | -796.0 | -699.6 | |
| 0.00 | 2.60 | 0.00 | 1.52 | -12.59 | 350.24 | -31.99 | 102.23 | 0.5312 | -792.0 | -677.0 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -7.86 | 350.64 | -31.60 | 93.25 | 0.5219 | -569.0 | -503.3 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -13.18 | 349.51 | -32.73 | 103.15 | 0.5427 | -695.0 | -609.7 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -11.71 | 349.54 | -32.70 | 100.44 | 0.5400 | -478.0 | -451.2 | |
| 0.00 | 2.77 | 0.00 | 1.64 | -13.04 | 349.27 | -32.96 | 102.85 | 0.5458 | -728.0 | -550.1 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -12.53 | 348.40 | -33.84 | 101.75 | 0.5574 | -606.0 | -455.2 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -12.06 | 347.65 | -34.58 | 100.79 | 0.5672 | -526.0 | -586.3 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -10.63 | 347.41 | -34.82 | 98.25 | 0.5693 | -800.0 | -575.5 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -11.53 | 343.09 | -39.15 | 99.42 | 0.6293 | -517.0 | -385.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
