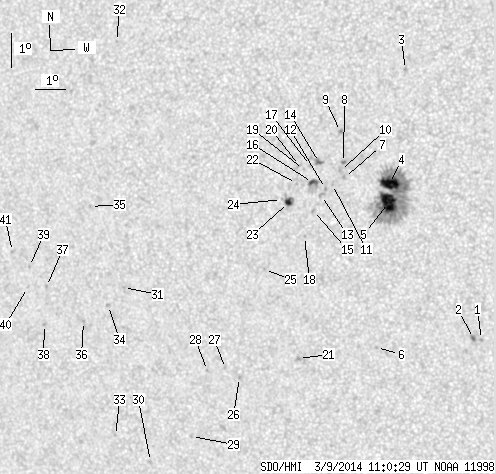

SDO HMI 2014-03-09 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.59 | 218.37 | 22.15 | 117.19 | -10.09 | 358.58 | -22.56 | 98.87 | 0.3840 | 438.8 | 370.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.68 | -14.24 | 2.65 | -18.49 | 112.65 | 0.3346 | 948.0 | 810.1 | |
| 0.43 | 2.43 | 0.23 | 1.28 | -14.20 | 2.40 | -18.75 | 112.30 | 0.3383 | 993.6 | 859.5 | |
| 0.00 | 1.65 | 0.00 | 0.87 | -6.09 | 0.74 | -20.41 | 88.02 | 0.3485 | 972.0 | 648.1 | |
| 14.47 | 145.14 | 7.68 | 77.00 | -9.46 | 0.04 | -21.10 | 97.57 | 0.3599 | 1234.9 | 500.7 | |
| 20.02 | -4.00 | 10.63 | -4.00 | -10.02 | 359.97 | -21.17 | 99.12 | 0.3618 | 1226.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -14.33 | 359.21 | -21.94 | 110.09 | 0.3872 | 770.0 | 573.7 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -9.21 | 358.60 | -22.55 | 96.64 | 0.3828 | 712.0 | 609.1 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -8.76 | 358.59 | -22.55 | 95.47 | 0.3824 | 1019.0 | 812.6 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -7.84 | 358.55 | -22.59 | 93.03 | 0.3828 | 975.0 | 837.0 | |
| 0.00 | 2.86 | 0.00 | 1.53 | -9.00 | 358.48 | -22.67 | 96.06 | 0.3844 | 685.0 | 520.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -9.40 | 358.19 | -22.96 | 97.07 | 0.3894 | 758.0 | 605.5 | |
| 0.00 | 1.13 | 0.00 | 0.61 | -9.51 | 357.95 | -23.19 | 97.30 | 0.3933 | 864.0 | 760.0 | |
| 0.00 | 2.86 | 0.00 | 1.54 | -9.71 | 357.81 | -23.34 | 97.79 | 0.3959 | 797.0 | 705.8 | |
| 0.78 | 4.33 | 0.42 | 2.33 | -8.72 | 357.81 | -23.34 | 95.29 | 0.3949 | 917.1 | 765.6 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -10.14 | 357.51 | -23.64 | 98.81 | 0.4011 | 872.0 | 613.1 | |
| 2.34 | 12.22 | 1.26 | 6.60 | -9.31 | 357.54 | -23.61 | 96.73 | 0.3996 | 808.7 | 399.4 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -8.80 | 357.51 | -23.64 | 95.45 | 0.3997 | 389.0 | 253.7 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -10.90 | 357.15 | -24.00 | 100.59 | 0.4081 | 696.0 | 559.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -8.91 | 357.27 | -23.87 | 95.70 | 0.4036 | 565.0 | 374.8 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -8.78 | 357.15 | -24.00 | 95.37 | 0.4054 | 682.0 | 495.5 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -14.53 | 356.57 | -24.58 | 108.93 | 0.4274 | 775.0 | 619.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | -9.31 | 357.01 | -24.14 | 96.67 | 0.4080 | 481.0 | 367.5 | |
| 3.55 | 8.06 | 1.93 | 4.38 | -9.86 | 356.70 | -24.44 | 97.96 | 0.4134 | -900.6 | -568.0 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -9.76 | 356.48 | -24.67 | 97.68 | 0.4168 | -629.0 | -478.2 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -11.81 | 355.72 | -25.42 | 102.33 | 0.4319 | 545.0 | 466.4 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -14.99 | 354.50 | -26.65 | 108.85 | 0.4598 | -910.0 | -738.7 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -14.69 | 354.05 | -27.09 | 108.01 | 0.4652 | -767.0 | -598.7 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -14.72 | 353.42 | -27.72 | 107.78 | 0.4745 | -763.0 | -706.4 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -16.66 | 352.57 | -28.58 | 111.29 | 0.4939 | -684.0 | -531.1 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -17.32 | 350.98 | -30.16 | 111.77 | 0.5186 | -209.0 | -330.1 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -12.06 | 350.83 | -30.31 | 101.58 | 0.5059 | -780.0 | -584.0 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -4.74 | 351.23 | -29.92 | 86.92 | 0.4998 | -710.0 | -565.3 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -16.46 | 349.87 | -31.27 | 109.67 | 0.5308 | -736.0 | -535.6 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -12.57 | 350.24 | -30.91 | 102.42 | 0.5155 | -841.0 | -676.1 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -9.58 | 349.96 | -31.19 | 96.59 | 0.5161 | -613.0 | -470.3 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -12.98 | 349.28 | -31.86 | 103.00 | 0.5300 | -849.0 | -645.2 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -11.85 | 348.10 | -33.04 | 100.67 | 0.5452 | -818.0 | -641.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -12.98 | 347.87 | -33.28 | 102.68 | 0.5502 | -663.0 | -595.8 | |
| 0.00 | 0.87 | 0.00 | 0.51 | -11.22 | 347.57 | -33.58 | 99.43 | 0.5521 | -714.0 | -635.9 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -11.84 | 347.41 | -33.73 | 100.53 | 0.5550 | -603.0 | -420.7 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -10.73 | 347.01 | -34.13 | 98.49 | 0.5596 | -586.0 | -450.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
