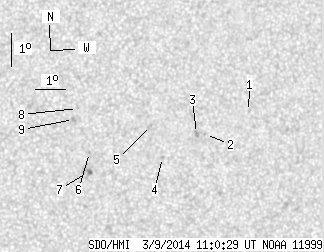

SDO HMI 2014-03-09 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.17 | 0.00 | 7.20 | -16.23 | 44.81 | 23.66 | 246.49 | 0.4218 | 14.1 | -134.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.49 | -15.07 | 48.61 | 27.46 | 251.38 | 0.4719 | 463.0 | 496.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -15.84 | 47.23 | 26.08 | 249.05 | 0.4548 | 693.0 | 581.6 | |
| 0.00 | 2.25 | 0.00 | 1.25 | -15.82 | 46.92 | 25.77 | 248.90 | 0.4502 | 854.0 | 775.9 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -16.60 | 45.85 | 24.71 | 246.54 | 0.4385 | 852.0 | 619.1 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -15.66 | 45.36 | 24.21 | 248.29 | 0.4268 | 738.0 | 510.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -16.57 | 43.38 | 22.23 | 244.72 | 0.4027 | -945.0 | -746.8 | |
| 0.00 | 3.90 | 0.00 | 2.11 | -17.14 | 43.41 | 22.27 | 243.43 | 0.4066 | -963.0 | -820.7 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -15.26 | 42.83 | 21.68 | 247.40 | 0.3877 | -671.0 | -418.3 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -15.60 | 42.73 | 21.58 | 246.50 | 0.3880 | -894.0 | -754.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
