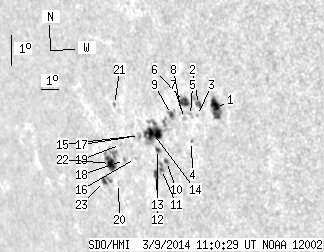

SDO HMI 2014-03-09 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.78 | 129.81 | 47.96 | 119.10 | -18.41 | 323.20 | -57.95 | 107.27 | 0.8436 | -27.6 | -136.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.04 | 16.20 | 10.09 | 13.58 | -17.85 | 326.93 | -54.22 | 106.86 | 0.8091 | 723.5 | 437.7 | |
| 2.08 | 7.19 | 1.78 | 6.15 | -17.65 | 326.10 | -55.05 | 106.54 | 0.8170 | 608.8 | 518.2 | |
| 0.00 | 1.04 | 0.00 | 0.89 | -17.96 | 325.89 | -55.25 | 106.92 | 0.8192 | 297.0 | 265.5 | |
| 0.00 | 1.13 | 0.00 | 0.98 | -18.70 | 325.20 | -55.95 | 107.75 | 0.8262 | 424.0 | 358.6 | |
| 0.00 | 2.43 | 0.00 | 2.10 | -17.93 | 325.52 | -55.62 | 106.84 | 0.8227 | 187.0 | -12.3 | |
| 5.03 | 7.19 | 4.37 | 6.25 | -17.48 | 325.40 | -55.75 | 106.29 | 0.8236 | 599.2 | 359.4 | |
| 0.00 | 1.56 | 0.00 | 1.36 | -17.98 | 325.16 | -55.99 | 106.88 | 0.8261 | -364.0 | -288.6 | |
| 0.00 | 1.91 | 0.00 | 1.67 | -17.82 | 325.07 | -56.08 | 106.68 | 0.8269 | -221.0 | -226.4 | |
| 1.39 | 4.16 | 1.23 | 3.69 | -17.79 | 324.51 | -56.63 | 106.61 | 0.8320 | 163.6 | 238.5 | |
| 1.13 | 3.29 | 1.03 | 3.00 | -19.14 | 323.52 | -57.63 | 108.16 | 0.8419 | -678.7 | -545.2 | |
| 0.78 | 10.31 | 0.72 | 9.56 | -19.35 | 323.10 | -58.05 | 108.37 | 0.8457 | -629.0 | -480.6 | |
| 1.21 | 2.17 | 1.11 | 1.99 | -18.74 | 323.20 | -57.94 | 107.65 | 0.8444 | -599.5 | -509.5 | |
| 2.60 | -11.00 | 2.42 | -11.00 | -19.47 | 322.73 | -58.42 | 108.48 | 0.8490 | -503.9 | 999999 | |
| 16.12 | 34.49 | 14.79 | 31.57 | -18.25 | 323.23 | -57.92 | 107.07 | 0.8439 | -264.5 | -94.7 | |
| 0.00 | 2.77 | 0.00 | 2.60 | -18.22 | 322.40 | -58.74 | 106.99 | 0.8512 | 303.0 | 171.1 | |
| 0.00 | 0.52 | 0.00 | 0.50 | -18.87 | 321.79 | -59.36 | 107.72 | 0.8568 | -612.0 | -578.5 | |
| 0.00 | 1.82 | 0.00 | 1.72 | -18.21 | 322.04 | -59.11 | 106.97 | 0.8543 | -46.0 | -138.5 | |
| 0.00 | 1.21 | 0.00 | 1.18 | -18.86 | 321.10 | -60.04 | 107.67 | 0.8625 | -474.0 | -502.9 | |
| 0.00 | 0.61 | 0.00 | 0.59 | -18.36 | 321.14 | -60.01 | 107.10 | 0.8620 | -291.0 | -273.4 | |
| 0.00 | 1.30 | 0.00 | 1.29 | -19.49 | 320.32 | -60.82 | 108.36 | 0.8692 | -503.0 | -452.5 | |
| 0.00 | 1.21 | 0.00 | 1.17 | -17.16 | 321.44 | -59.71 | 105.71 | 0.8591 | 317.0 | 331.1 | |
| 8.32 | 20.71 | 8.30 | 20.58 | -18.85 | 320.20 | -60.94 | 107.62 | 0.8700 | -533.2 | -457.9 | |
| 2.08 | 6.59 | 2.12 | 6.68 | -19.34 | 319.50 | -61.65 | 108.14 | 0.8759 | -235.7 | -374.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
