SDO HMI 2014-03-09 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.73 | 44.87 | 0.86 | 22.38 | -11.21 | 14.01 | -4.39 | 140.76 | 0.1064 | 573.0 | 171.1 | |
|
previous
or next observation for the same group /

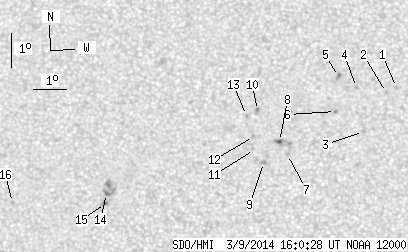

back to the solar disc SDO HMI 2014-03-09 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.52 | -9.35 | 19.25 | 0.85 | 201.60 | 0.0399 | 906.0 | 683.6 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -9.50 | 18.95 | 0.55 | 193.42 | 0.0408 | 982.0 | 753.2 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -10.66 | 18.25 | -0.15 | 177.57 | 0.0601 | 976.0 | 605.1 | |
| 0.00 | 1.30 | 0.00 | 0.64 | -9.35 | 18.04 | -0.36 | 170.56 | 0.0376 | 828.0 | 607.8 | |
| 0.00 | 2.94 | 0.00 | 1.46 | -9.02 | 17.50 | -0.90 | 153.62 | 0.0350 | 1058.0 | 872.9 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -10.06 | 17.41 | -0.99 | 160.94 | 0.0525 | 1099.0 | 835.7 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -11.33 | 15.95 | -2.46 | 149.63 | 0.0835 | 881.0 | 742.9 | |
| 0.95 | 9.87 | 0.47 | 4.91 | -10.94 | 15.71 | -2.69 | 144.59 | 0.0800 | 1177.5 | 799.7 | |
| 0.00 | 2.34 | 0.00 | 1.16 | -11.57 | 15.21 | -3.19 | 144.30 | 0.0938 | 939.0 | 757.8 | |
| 0.00 | 2.60 | 0.00 | 1.29 | -10.02 | 15.05 | -3.35 | 130.30 | 0.0758 | 1232.0 | 811.1 | |
| 0.00 | 0.61 | 0.00 | 0.30 | -11.18 | 14.94 | -3.46 | 139.42 | 0.0913 | 682.0 | 616.7 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -10.79 | 14.92 | -3.48 | 136.25 | 0.0867 | 895.0 | 740.1 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -10.16 | 14.72 | -3.69 | 129.09 | 0.0819 | 855.0 | 656.7 | |
| 0.35 | 11.95 | 0.17 | 6.00 | -12.43 | 10.40 | -8.01 | 124.02 | 0.1648 | -1072.2 | -897.7 | |
| 0.43 | 3.46 | 0.22 | 1.74 | -12.73 | 10.35 | -8.05 | 125.39 | 0.1682 | -1011.4 | -719.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -12.64 | 7.48 | -10.92 | 117.55 | 0.2094 | -915.0 | -681.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
