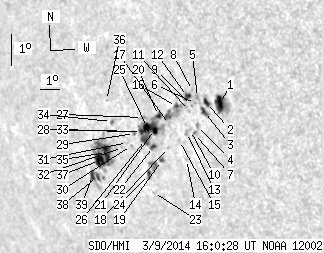

SDO HMI 2014-03-09 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.95 | 201.97 | 62.24 | 174.03 | -18.38 | 323.03 | -55.37 | 107.43 | 0.8199 | -111.6 | -171.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.13 | 21.82 | 7.97 | 17.13 | -17.78 | 327.14 | -51.26 | 107.06 | 0.7793 | 805.4 | 482.8 | |
| 2.86 | 5.28 | 2.28 | 4.21 | -17.69 | 326.52 | -51.88 | 106.88 | 0.7856 | 645.9 | 436.9 | |
| 2.51 | 5.20 | 2.01 | 4.16 | -17.95 | 326.31 | -52.09 | 107.19 | 0.7880 | 504.8 | 390.1 | |
| 0.00 | 1.82 | 0.00 | 1.47 | -18.33 | 325.78 | -52.62 | 107.61 | 0.7937 | 525.0 | 410.1 | |
| 0.00 | 2.34 | 0.00 | 1.88 | -17.50 | 326.13 | -52.27 | 106.60 | 0.7893 | 574.0 | 465.6 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -17.67 | 325.96 | -52.44 | 106.80 | 0.7912 | 244.0 | 171.6 | |
| 0.00 | 1.39 | 0.00 | 1.13 | -18.55 | 325.53 | -52.87 | 107.86 | 0.7964 | 497.0 | 389.5 | |
| 0.00 | 0.52 | 0.00 | 0.42 | -17.27 | 325.97 | -52.43 | 106.29 | 0.7908 | 507.0 | 454.0 | |
| 0.00 | 0.87 | 0.00 | 0.70 | -17.71 | 325.74 | -52.66 | 106.82 | 0.7935 | 261.0 | 200.7 | |
| 0.00 | 0.35 | 0.00 | 0.28 | -18.44 | 325.37 | -53.03 | 107.71 | 0.7979 | -356.0 | -328.2 | |
| 0.00 | 0.87 | 0.00 | 0.70 | -17.85 | 325.58 | -52.82 | 106.98 | 0.7953 | -136.0 | -85.2 | |
| 2.34 | 5.11 | 1.90 | 4.15 | -17.42 | 325.65 | -52.75 | 106.46 | 0.7942 | 613.0 | 412.0 | |
| 0.00 | 1.82 | 0.00 | 1.49 | -18.48 | 325.14 | -53.26 | 107.74 | 0.8002 | -579.0 | -605.0 | |
| 0.00 | 0.78 | 0.00 | 0.65 | -19.28 | 324.77 | -53.63 | 108.69 | 0.8046 | 255.0 | 226.3 | |
| 0.00 | 1.21 | 0.00 | 1.01 | -18.68 | 324.67 | -53.73 | 107.94 | 0.8050 | -344.0 | -271.3 | |
| 1.21 | 17.15 | 1.00 | 14.17 | -17.66 | 324.97 | -53.43 | 106.70 | 0.8012 | 393.4 | -256.6 | |
| 0.00 | 1.39 | 0.00 | 1.16 | -18.16 | 324.38 | -54.02 | 107.26 | 0.8074 | -347.0 | -438.2 | |
| 0.00 | 0.61 | 0.00 | 0.51 | -18.83 | 324.01 | -54.39 | 108.06 | 0.8116 | -417.0 | -424.1 | |
| 1.21 | 2.60 | 1.04 | 2.22 | -19.18 | 323.46 | -54.94 | 108.43 | 0.8172 | -697.8 | -576.6 | |
| 2.51 | 48.23 | 2.12 | 41.25 | -17.84 | 323.93 | -54.47 | 106.82 | 0.8115 | 335.7 | -221.4 | |
| 5.20 | -20.00 | 4.42 | -20.00 | -18.23 | 323.53 | -54.87 | 107.27 | 0.8157 | -760.9 | 999999 | |
| 2.16 | -20.00 | 1.86 | -20.00 | -18.72 | 323.24 | -55.16 | 107.85 | 0.8189 | -766.5 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.38 | -20.08 | 322.54 | -55.86 | 109.44 | 0.8266 | -363.0 | -412.0 | |
| 1.99 | 10.56 | 1.74 | 9.17 | -19.53 | 322.61 | -55.79 | 108.77 | 0.8254 | -445.1 | -545.7 | |
| 7.45 | -20.00 | 6.39 | -20.00 | -18.13 | 323.19 | -55.21 | 107.13 | 0.8188 | 290.0 | 999999 | |
| 5.54 | -20.00 | 4.79 | -20.00 | -18.48 | 322.92 | -55.48 | 107.52 | 0.8217 | -516.3 | 999999 | |
| 0.00 | 2.86 | 0.00 | 2.46 | -17.81 | 323.07 | -55.33 | 106.72 | 0.8198 | 512.0 | 415.8 | |
| 2.16 | -20.00 | 1.87 | -20.00 | -18.22 | 322.82 | -55.58 | 107.20 | 0.8225 | 318.7 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.29 | -18.24 | 322.42 | -55.98 | 107.19 | 0.8262 | 235.0 | 183.6 | |
| 0.00 | 0.43 | 0.00 | 0.38 | -18.57 | 322.08 | -56.32 | 107.58 | 0.8296 | 139.0 | 106.6 | |
| 0.00 | 1.13 | 0.00 | 1.00 | -18.46 | 321.91 | -56.49 | 107.43 | 0.8311 | -291.0 | -292.9 | |
| 0.00 | 0.95 | 0.00 | 0.85 | -18.58 | 321.56 | -56.84 | 107.55 | 0.8344 | -329.0 | -337.7 | |
| 0.00 | 0.87 | 0.00 | 0.77 | -18.11 | 321.74 | -56.66 | 106.99 | 0.8324 | 209.0 | 93.1 | |
| 0.52 | 1.47 | 0.47 | 1.32 | -17.76 | 321.34 | -57.06 | 106.54 | 0.8359 | -624.2 | -552.9 | |
| 9.61 | 46.94 | 8.80 | 43.26 | -18.64 | 320.59 | -57.81 | 107.54 | 0.8432 | -899.6 | -493.8 | |
| 0.00 | 0.87 | 0.00 | 0.78 | -17.11 | 321.37 | -57.03 | 105.77 | 0.8353 | 376.0 | 350.2 | |
| 9.61 | -35.00 | 8.92 | -35.00 | -18.83 | 320.06 | -58.34 | 107.74 | 0.8479 | -546.3 | 999999 | |
| 1.82 | 13.94 | 1.71 | 13.12 | -19.29 | 319.68 | -58.72 | 108.25 | 0.8515 | -499.8 | -237.8 | |
| 3.12 | -38.00 | 2.95 | -38.00 | -19.23 | 319.41 | -58.99 | 108.16 | 0.8538 | -295.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
