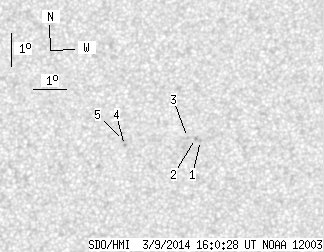

SDO HMI 2014-03-09 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.89 | 0.00 | 3.02 | 5.86 | 11.35 | -7.05 | 28.32 | 0.2581 | -107.8 | -75.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.53 | 5.84 | 12.37 | -6.03 | 24.87 | 0.2496 | -1026.0 | -799.8 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 5.90 | 12.22 | -6.18 | 25.31 | 0.2516 | -846.0 | -685.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 5.93 | 11.98 | -6.42 | 26.11 | 0.2539 | -662.0 | -378.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 5.72 | 10.08 | -8.32 | 32.86 | 0.2665 | 1063.0 | 860.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 5.88 | 10.05 | -8.35 | 32.65 | 0.2690 | 932.0 | 692.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
