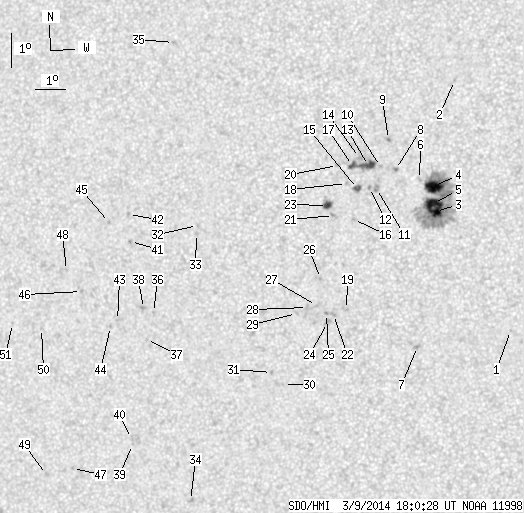

SDO HMI 2014-03-09 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.74 | 240.00 | 25.39 | 126.23 | -10.29 | 357.97 | -19.32 | 100.20 | 0.3326 | 385.0 | 326.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.77 | 2.14 | -15.15 | 114.95 | 0.2813 | 887.0 | 615.9 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -6.27 | 0.77 | -16.53 | 87.63 | 0.2843 | 846.0 | 639.7 | |
| 8.40 | 143.99 | 4.36 | 74.69 | -10.14 | 359.99 | -17.30 | 100.89 | 0.2995 | 1359.2 | 489.6 | |
| 14.89 | -3.00 | 7.72 | -3.00 | -9.40 | 359.97 | -17.33 | 98.39 | 0.2983 | 1311.8 | 999999 | |
| 12.04 | -3.00 | 6.25 | -3.00 | -9.90 | 359.94 | -17.35 | 100.07 | 0.2997 | 1301.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -9.17 | 359.54 | -17.76 | 97.51 | 0.3050 | 627.0 | 455.6 | |
| 0.00 | 2.77 | 0.00 | 1.45 | -14.15 | 359.14 | -18.16 | 112.70 | 0.3290 | 893.0 | 710.5 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -8.84 | 358.80 | -18.50 | 96.27 | 0.3168 | 981.0 | 771.0 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -7.94 | 358.62 | -18.68 | 93.41 | 0.3191 | 1040.0 | 893.4 | |
| 0.00 | 1.65 | 0.00 | 0.86 | -8.73 | 358.33 | -18.97 | 95.85 | 0.3244 | 968.0 | 646.7 | |
| 0.00 | 3.81 | 0.00 | 2.00 | -9.38 | 358.16 | -19.14 | 97.80 | 0.3279 | 747.0 | 784.7 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -9.34 | 357.94 | -19.36 | 97.63 | 0.3314 | 892.0 | 748.4 | |
| 5.97 | 15.76 | 3.13 | 8.27 | -8.69 | 357.95 | -19.35 | 95.65 | 0.3306 | 1027.6 | 724.6 | |
| 0.00 | 2.42 | 0.00 | 1.27 | -8.44 | 357.67 | -19.62 | 94.86 | 0.3349 | 831.0 | 711.1 | |
| 1.90 | 4.68 | 1.00 | 2.46 | -9.36 | 357.56 | -19.74 | 97.57 | 0.3377 | 889.5 | 707.0 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -10.27 | 357.37 | -19.93 | 100.21 | 0.3423 | 832.0 | 599.1 | |
| 1.99 | -13.00 | 1.05 | -13.00 | -8.67 | 357.44 | -19.86 | 95.51 | 0.3389 | 812.1 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -9.19 | 357.21 | -20.08 | 97.02 | 0.3431 | -672.0 | -462.1 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -12.94 | 356.94 | -20.36 | 107.54 | 0.3572 | 906.0 | 836.7 | |
| 0.00 | 1.65 | 0.00 | 0.87 | -8.65 | 356.96 | -20.34 | 95.38 | 0.3467 | 634.0 | 466.2 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -10.13 | 356.73 | -20.56 | 99.57 | 0.3522 | -885.0 | -743.8 | |
| 0.00 | 2.16 | 0.00 | 1.15 | -13.08 | 356.50 | -20.80 | 107.60 | 0.3644 | 966.0 | 825.2 | |
| 3.55 | 6.49 | 1.88 | 3.44 | -9.82 | 356.56 | -20.74 | 98.66 | 0.3545 | -1054.7 | -775.9 | |
| 0.00 | 3.64 | 0.00 | 1.94 | -13.31 | 356.28 | -21.01 | 108.07 | 0.3687 | 877.0 | 676.7 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -13.03 | 356.28 | -21.02 | 107.35 | 0.3677 | 1056.0 | 843.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -11.98 | 356.17 | -21.13 | 104.48 | 0.3657 | 871.0 | 719.1 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -12.78 | 355.97 | -21.33 | 106.50 | 0.3715 | 899.0 | 705.8 | |
| 0.00 | 2.25 | 0.00 | 1.20 | -12.83 | 355.67 | -21.63 | 106.45 | 0.3763 | 671.0 | 621.5 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -12.99 | 355.29 | -22.00 | 106.65 | 0.3827 | 737.0 | 640.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -15.09 | 354.64 | -22.65 | 111.44 | 0.4013 | -638.0 | -508.5 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -14.71 | 354.29 | -23.01 | 110.29 | 0.4049 | -752.0 | -648.7 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -10.20 | 352.26 | -25.03 | 98.66 | 0.4231 | -713.0 | -415.9 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -10.44 | 352.21 | -25.09 | 99.21 | 0.4242 | -715.0 | -576.8 | |
| 0.00 | 2.42 | 0.00 | 1.36 | -18.42 | 351.00 | -26.30 | 116.14 | 0.4701 | -754.0 | -646.7 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -4.72 | 351.81 | -25.48 | 85.78 | 0.4318 | -810.0 | -589.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -12.71 | 350.53 | -26.77 | 103.88 | 0.4545 | -811.0 | -618.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -13.50 | 350.19 | -27.11 | 105.47 | 0.4616 | -725.0 | -537.9 | |
| 0.00 | 2.68 | 0.00 | 1.50 | -12.57 | 350.20 | -27.10 | 103.47 | 0.4591 | -879.0 | -740.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -16.62 | 349.26 | -28.04 | 111.47 | 0.4860 | -539.0 | -460.0 | |
| 0.00 | 1.90 | 0.00 | 1.08 | -16.43 | 349.25 | -28.04 | 111.10 | 0.4853 | -613.0 | -529.8 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -10.55 | 349.97 | -27.33 | 99.03 | 0.4589 | -936.0 | -769.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -9.75 | 349.98 | -27.32 | 97.27 | 0.4579 | -809.0 | -667.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -12.88 | 349.27 | -28.03 | 103.83 | 0.4737 | -744.0 | -629.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -13.04 | 349.00 | -28.29 | 104.08 | 0.4780 | -632.0 | -508.4 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -9.95 | 349.31 | -27.99 | 97.62 | 0.4683 | -742.0 | -596.9 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -11.94 | 348.13 | -29.17 | 101.57 | 0.4887 | -958.0 | -732.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -17.21 | 347.02 | -30.28 | 111.49 | 0.5197 | -670.0 | -567.6 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -11.28 | 347.68 | -29.61 | 100.15 | 0.4943 | -813.0 | -591.3 | |
| 0.00 | 1.73 | 0.00 | 1.01 | -17.33 | 346.05 | -31.25 | 111.26 | 0.5335 | -692.0 | -589.2 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -12.95 | 346.59 | -30.71 | 103.21 | 0.5133 | -495.0 | -447.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -12.74 | 345.58 | -31.71 | 102.56 | 0.5274 | -616.0 | -475.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
