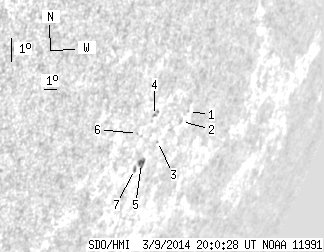

SDO HMI 2014-03-09 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.98 | 0.00 | 16.29 | -26.04 | 83.80 | 67.60 | 244.71 | 0.9203 | -210.1 | -180.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.81 | -24.62 | 85.50 | 69.31 | 246.33 | 0.9302 | 189.0 | 239.9 | |
| 0.00 | 1.90 | 0.00 | 2.52 | -24.97 | 85.28 | 69.08 | 245.94 | 0.9289 | 346.0 | 299.7 | |
| 0.00 | 0.78 | 0.00 | 0.99 | -25.76 | 84.05 | 67.86 | 245.03 | 0.9219 | -293.0 | -216.9 | |
| 0.00 | 0.95 | 0.00 | 1.16 | -25.04 | 82.97 | 66.77 | 245.76 | 0.9148 | -442.0 | -315.3 | |
| 0.00 | 5.80 | 0.00 | 7.22 | -26.54 | 83.57 | 67.38 | 244.17 | 0.9192 | -536.0 | -291.9 | |
| 0.00 | 0.69 | 0.00 | 0.82 | -25.70 | 82.27 | 66.08 | 245.00 | 0.9106 | -352.0 | -310.4 | |
| 0.00 | 2.25 | 0.00 | 2.77 | -26.77 | 83.24 | 67.05 | 243.89 | 0.9173 | -383.0 | -338.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
